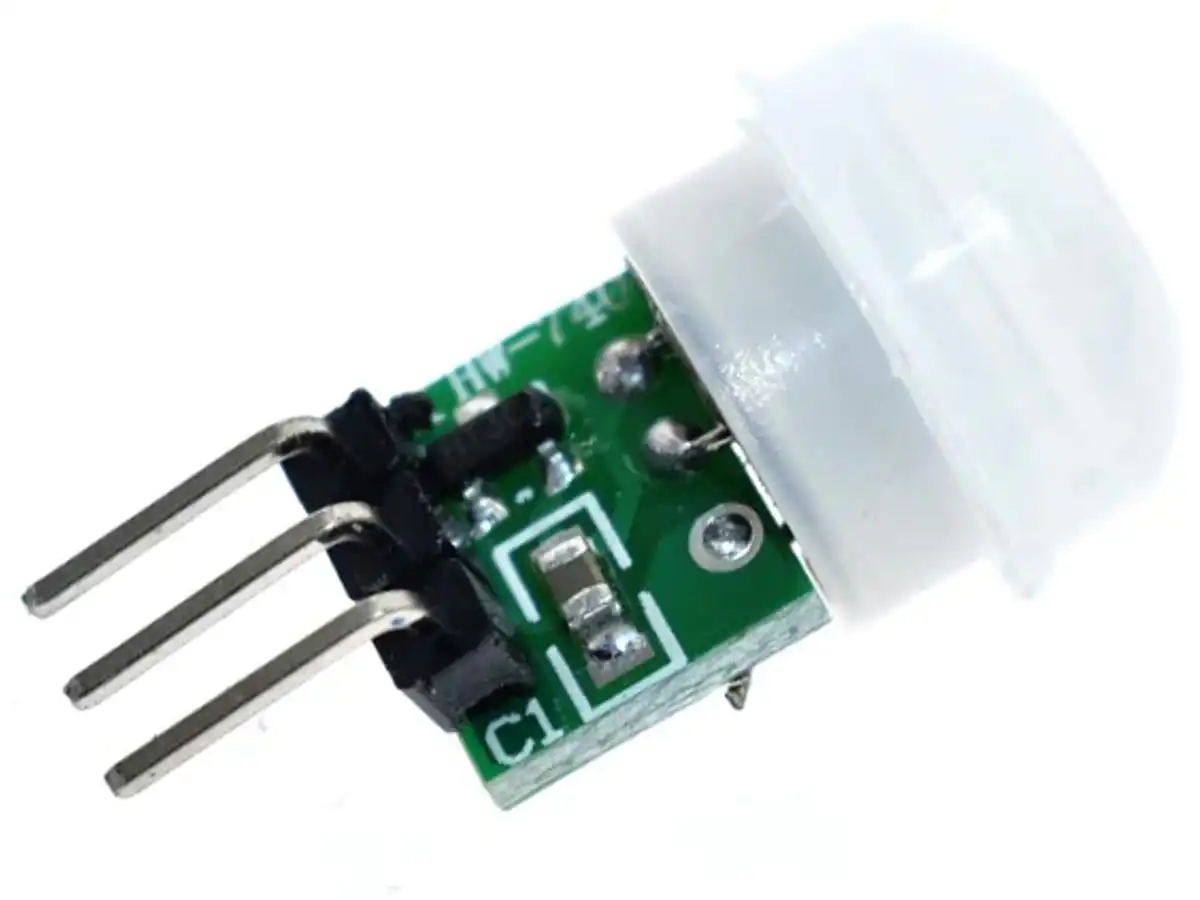

PIR Mini Motion Sensor - 12mm Diameter - AM312 Chip

C$3.99

Availability: In stock (can be backordered)

Title	Range	Discount
bulk discount	3 - 9	10% C$3.59
bulk discount	10 - 24	15% C$3.39
bulk discount	25 +	18% C$3.27

GTIN: 4260474035250 SKU: 26525 Categories: Full Catalog, Sensors

Description
Reviews (0)

PIR Mini Motion Sensor is microcontroller compatible or can be used as Stand-Alone Motion Switch. The passive infrared sensor measures that very small amount of infrared radiation coming for example from living objects or running engines.

The output pin can drive simple loads like transistors or GPIO ports. Operating Voltage: 2.7 - 12V

Current consumption: <0.02mA
Output current: max. 10mA
Delay time: 2.3s
Block time: 2.3s
Range: 3-5m (100 deg. lens angle)
Lens Dimension: 12mm
PCB Dimension: 8 x 10mm
Working temperature: -20...+60 deg. C
