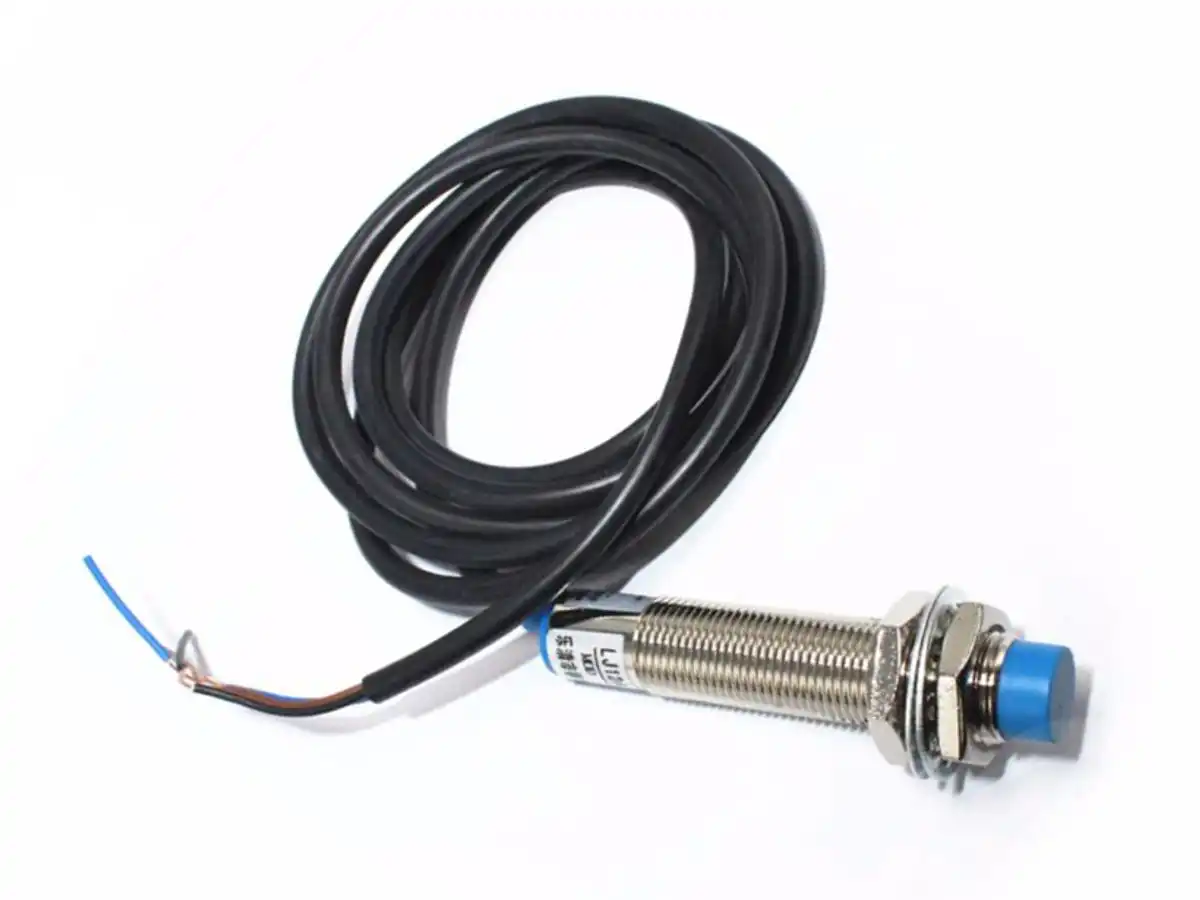

Proximity Sensor LJ12A3-4-Z-BY PNP Output – 4mm Range – 6-36V Power Supply

0 out of 5
( There are no reviews yet. )

C$4.95

Learn about Availability Status and Backorder

Availability: In stock (can be backordered) SKU: 26372
Quantity discount 2 - 9 C$4.70
Quantity discount 10 - 19 C$4.46
Quantity discount 20 + C$4.21

Description

Proximity switch series LJ12A3 with M12 mounting thread and 4mm sensing distance.

Proximity sensors are used to detect the movement or rotation of metal (for example crankshafts), and to detect the status of lids and doors (open/closed).

The output signal is ON or OFF (open collector, max. 300mA). This sensor can not be used to measure the distance between the sensor and a conductive object.

Easy connection with the 3-Wire interface (+, -, load).

  • Operating Voltage: DC 6-36V
  • Output Current: max. 300mA
  • Output Transistor: PNP
  • Output Status: NO (Normally Open)
  • Dimensions: M12 x 10 x 55mm
  • Detection Distance: 4 mm
  • Cable Length: min. 1m
