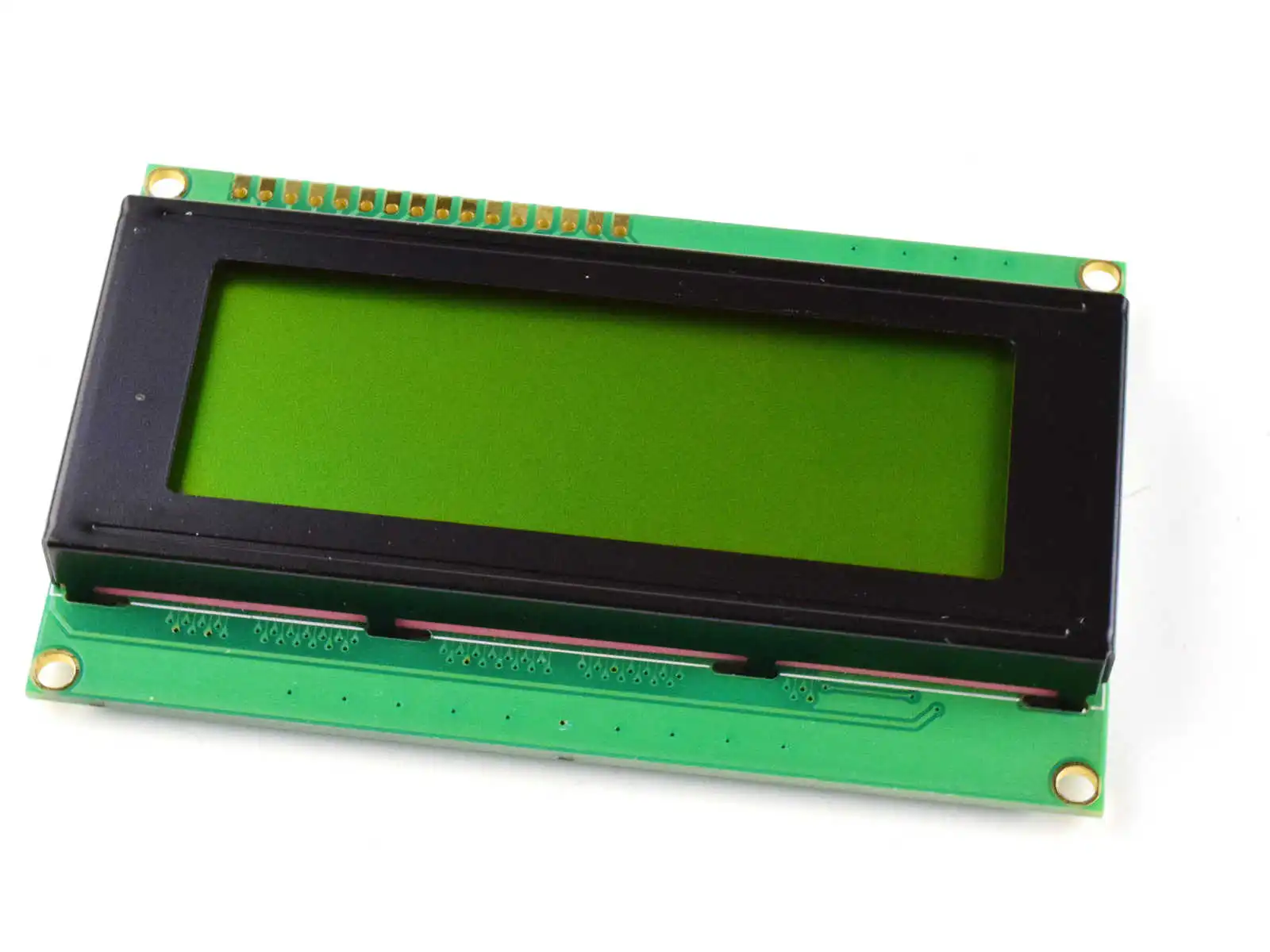

LCD 2004A Green-Yellow, 4x20, Backlight, I2C optional

C$9.50

Availability: In stock (can be backordered)

2 - 9 C$9.03
10 - 24 C$8.55
25 + C$8.08
- +
GTIN: 4260474032594 SKU: 26259 Categories: , Tags: ,

4 line, 20 positions alphanumeric Standard LCD 2004A Green with HD44780 (or compatible) display controller and the standard 4/8 bit parallel interface. The optional available I2C interface fits right on the back of the display and turns its interface from parallel to simple 2-wire I2C (perfect for microcontrollers like Arduino to save on I/O ports).

Please click HERE to order the optional I2C interface module.

Standard LCD 2004A Green with 4 lines and 20 characters each comes with bright yellow LED backlight and high contrast. An I2C serial is available as option (SKU 26619). The display needs a 5V power supply for operation. With the I2C interface installed on the backside of the Standard LCD 20x4, the backlight can be controlled by software as well. Many different libraries for different programming languages and controller families are available, also countless examples.

  • Size 99 x 60 x 19 mm (I2C interface assembled)
  • Operating voltage 4.5V - 5.5V DC
  • Current consumption LCD: about 2mA
  • Current consumption backlight: 40mA
  • LED backlight bright yellow, 5V
  • Display area 25 x 75 mm
  • I2C Interface board with PCF8574 (option).

Documentation and example codes for Standard LCDs
