Overview

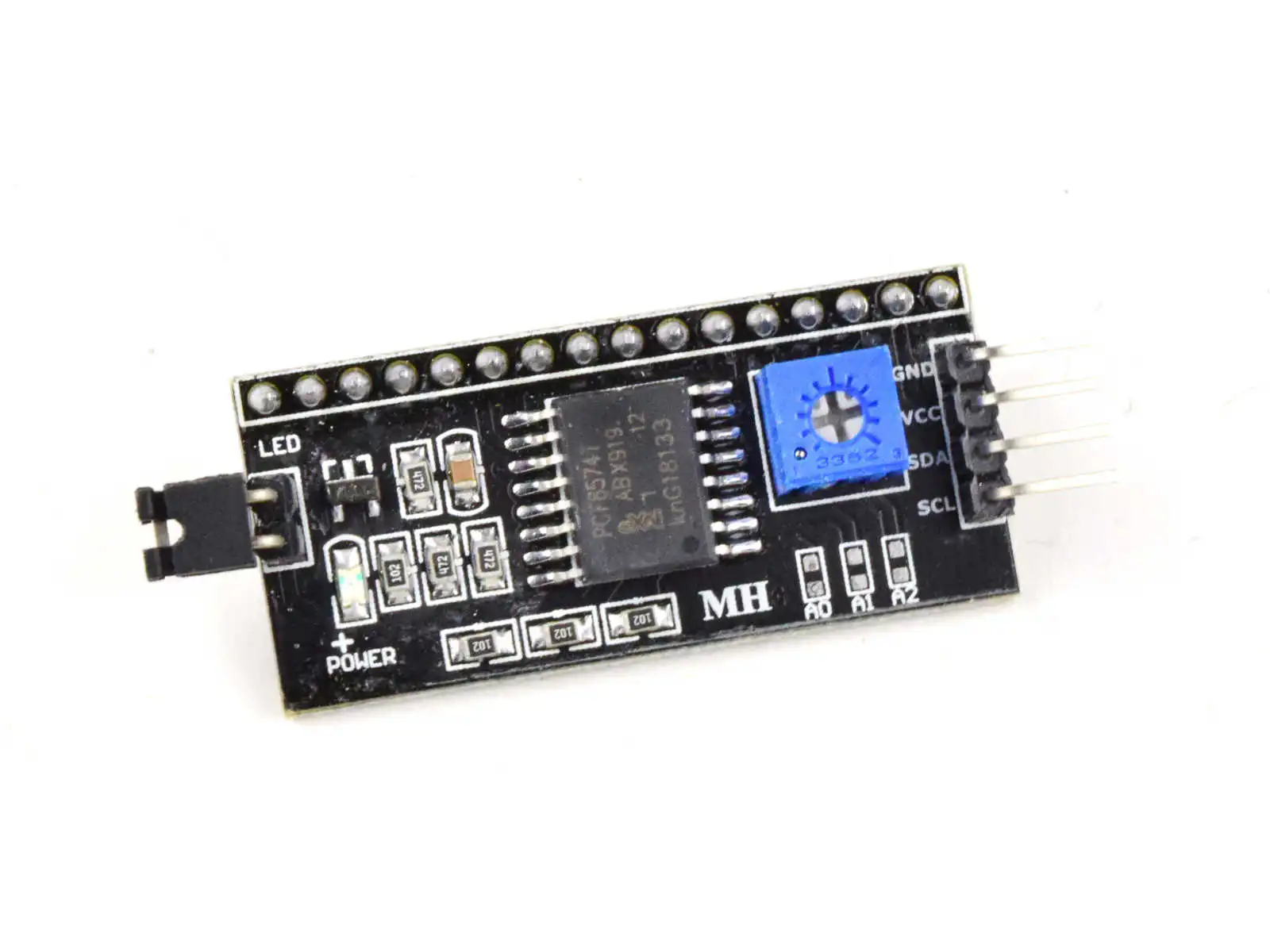

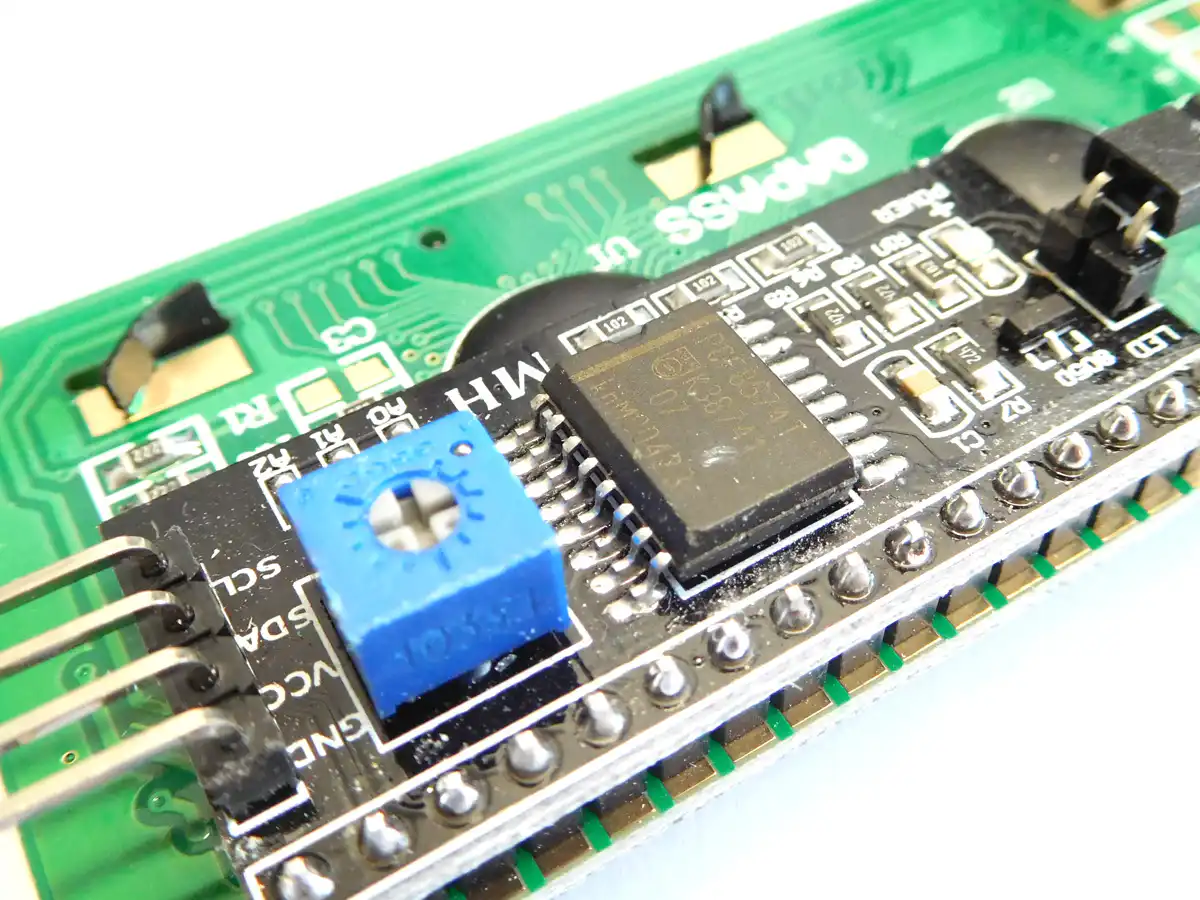

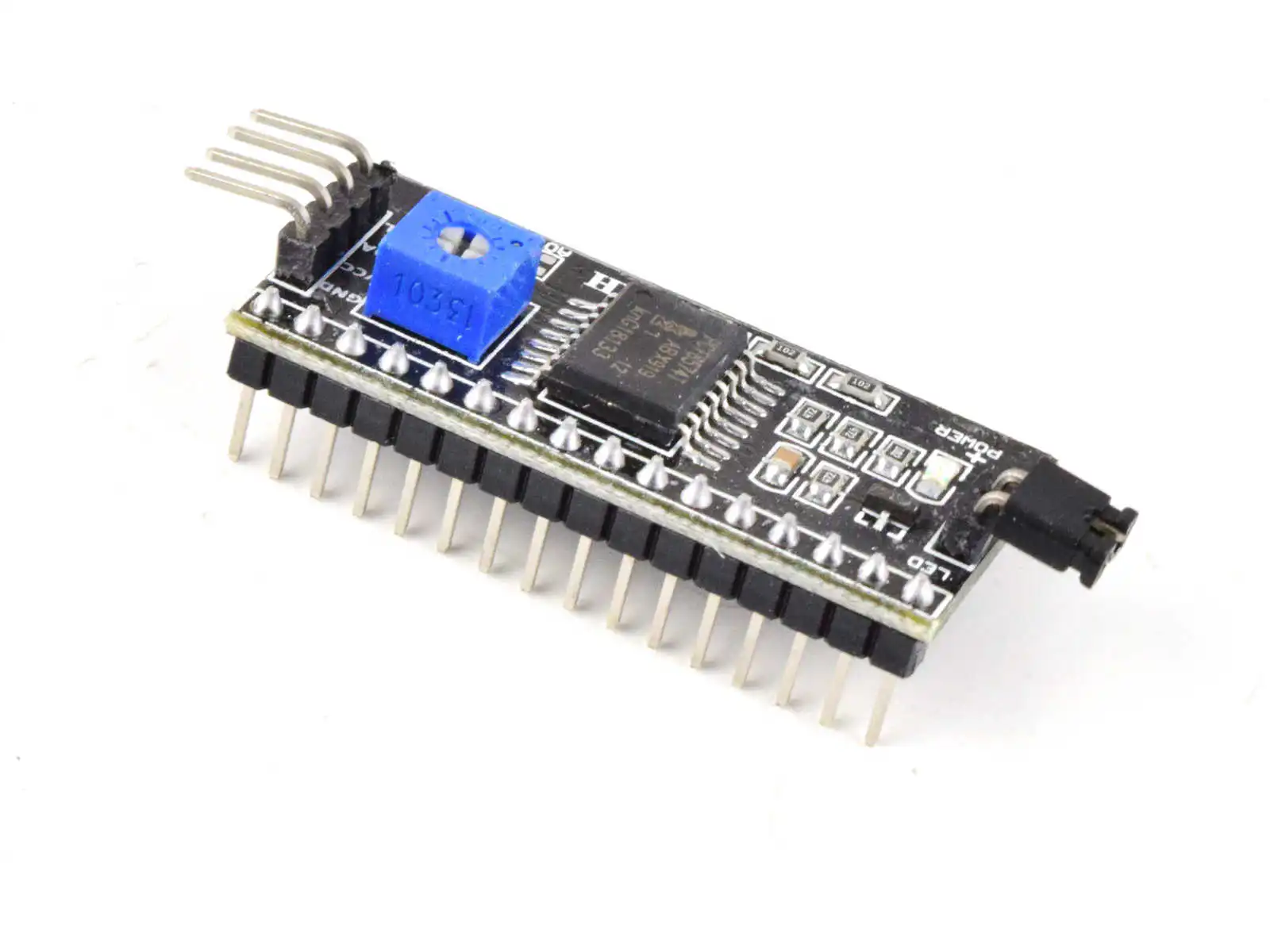

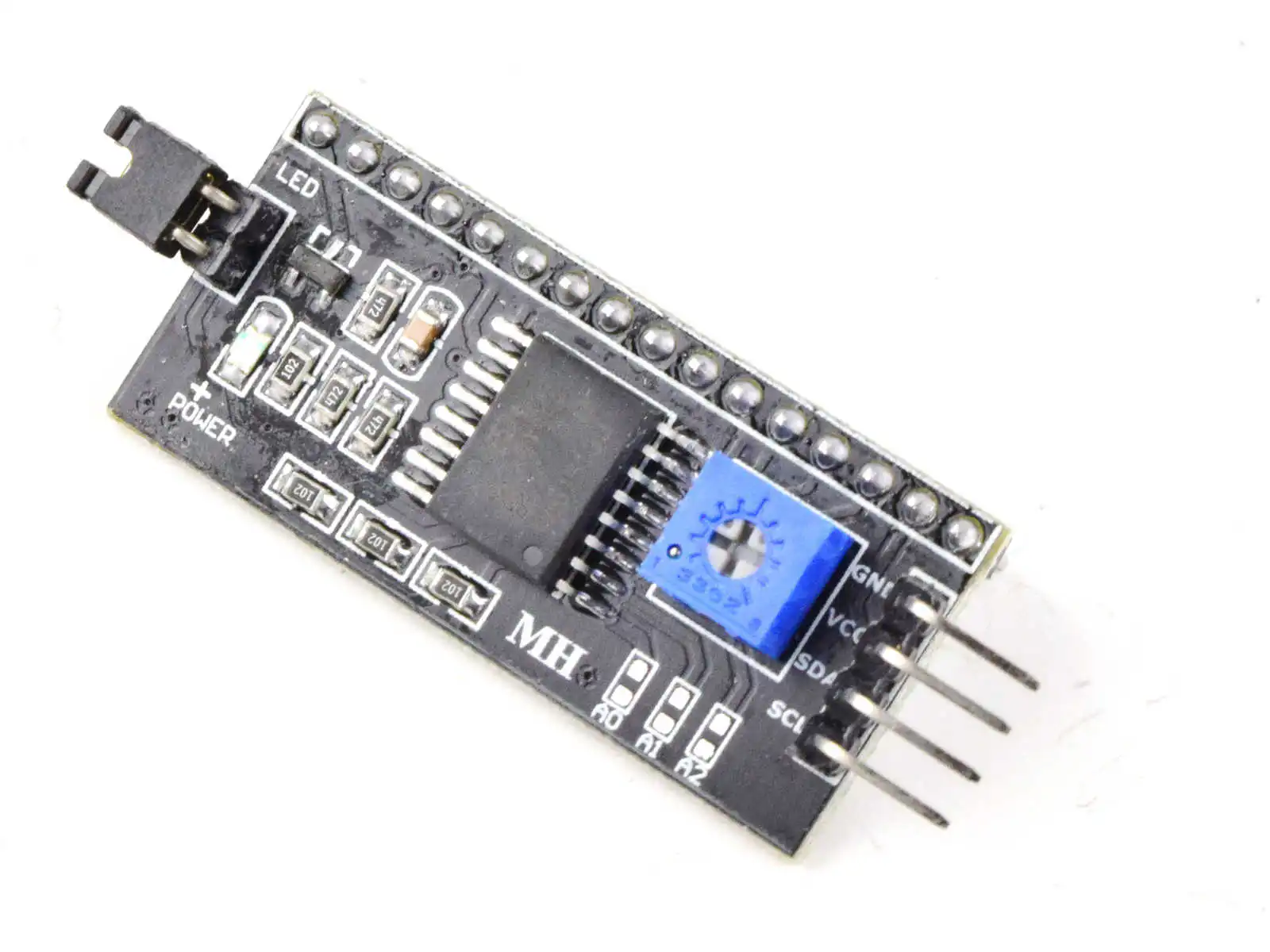

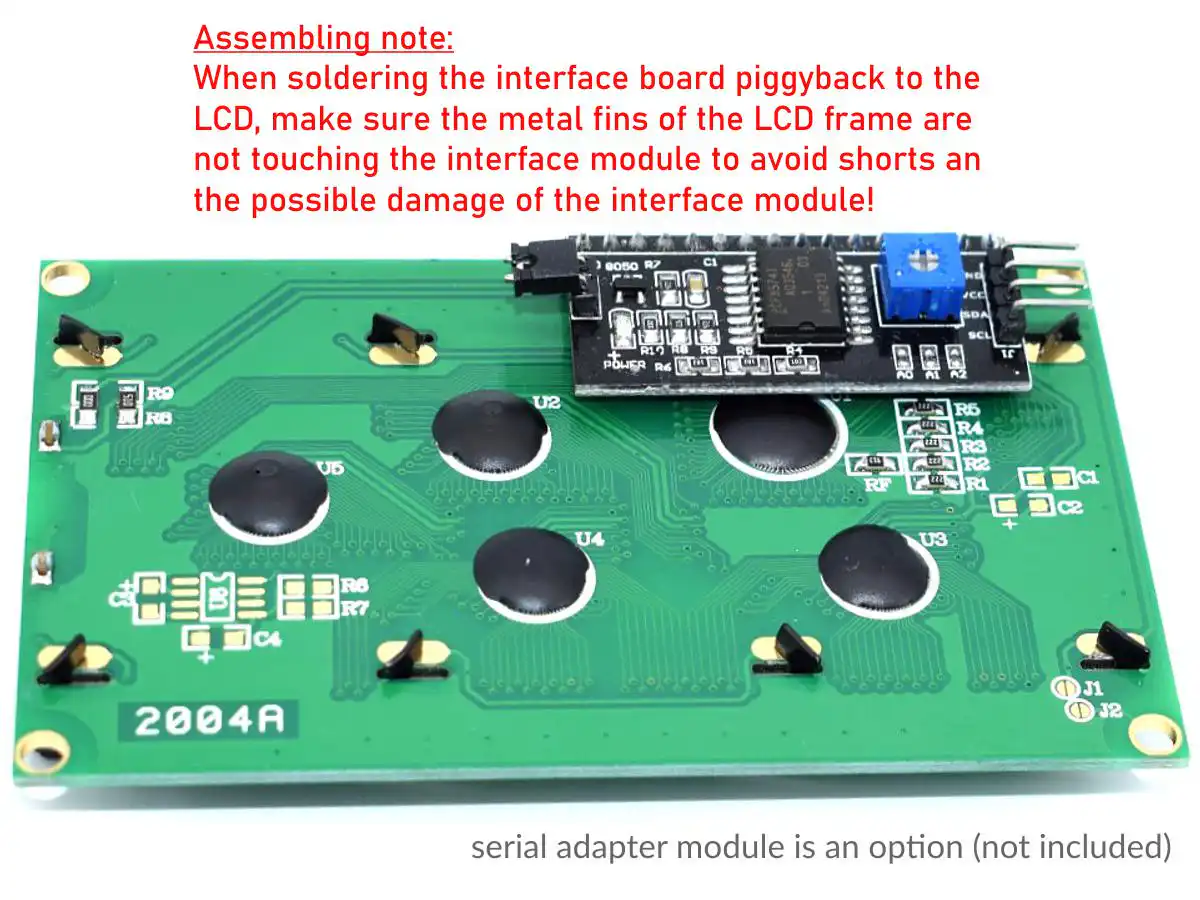

The I2C interface for LCD module is an adapter board that allows standard character LCD displays (typically HD44780 compatible) to communicate over the I2C bus instead of using parallel data lines. This interface uses the PCF8574 I/O expander to convert I2C commands into the parallel signals required by character LCDs, greatly reducing the number of microcontroller pins needed to control the display.

The board includes onboard pull-up resistors on the I2C data (SDA) and clock (SCL) lines and allows for configurable I2C addresses using solder jumpers or trace pads. The interface is compatible with common character LCD sizes and supports 3.3 V and 5 V logic systems when powered appropriately.

Key Features

• I2C interface for LCD module based on PCF8574 I/O expander
• Reduces LCD connections to two I2C signals (SDA, SCL) plus power and ground
• Configurable I2C address selection via jumpers or solder pads
• Onboard 10 kΩ pull-ups for I2C bus lines
• Compatible with standard character LCDs (e.g., 16×2, 20×4)
• Works with 3.3 V and 5 V logic systems
• Suitable for microcontrollers with limited I/O pins
• Simplifies LCD integration in embedded systems and development boards

Electrical and Usage Notes

• The adapter requires a stable supply voltage matching the LCD and logic levels (typically 5 V or 3.3 V)
• I2C address must be configured to avoid conflicts when multiple devices are on the same bus
• Onboard pull-ups may need to be removed when cascading multiple I2C devices to avoid excessive loading of the I2C bus
• The interface speeds compatible with standard I2C clock rates; ensure host supports required frequency
• LCD contrast must be adjusted using the LCD’s contrast pin or onboard potentiometer where provided

Typical Applications

• Driving character LCD displays with minimal MCU pins
• Embedded user interfaces and status displays
• Microcontroller development projects with limited GPIO
• Data display in sensor and control systems
• Educational hardware and prototyping environments

Specifications

Module Type I2C interface for LCD module
Core IC PCF8574 I/O expander
Communication Interface I2C (SDA, SCL)
Pull-ups Onboard 10 kΩ pull-ups on SDA and SCL
I2C Address Configuration Selectable via jumpers or solder pads
Logic Voltage Support 3.3 V and 5 V systems
LCD Compatibility Character LCD displays (HD44780 compatible)
Use Case Bus-reduced LCD control over I2C

3 reviews for I2C interface for LCD module - PCF8574 (A)

  1. Rated 5 out of 5

    Craig –

    These worked well to provide I2C from Arduino to my LCD.

  2. Rated 5 out of 5

    Sam S. –

    Works as expected.

  3. Rated 4 out of 5

    shaun.lovell (verified owner) –

    The library suggested in the docs may not be available. I find the HD44780 library by Bill Perry works beautifully, using the hd44780_I2Cexp sub-class, which is written for the PCF8574. It auto-detects the I2C address (with provision for specifying the address or addresses of multiple displays) and the configuration between the PCF8574 and the display. Read more at https://forum.arduino.cc/t/newliquidcrystal-library/676274
