CANADUINO ESP32 PLC-100 V1 (for Espressif ESP32-C6-DevKitC)

Description

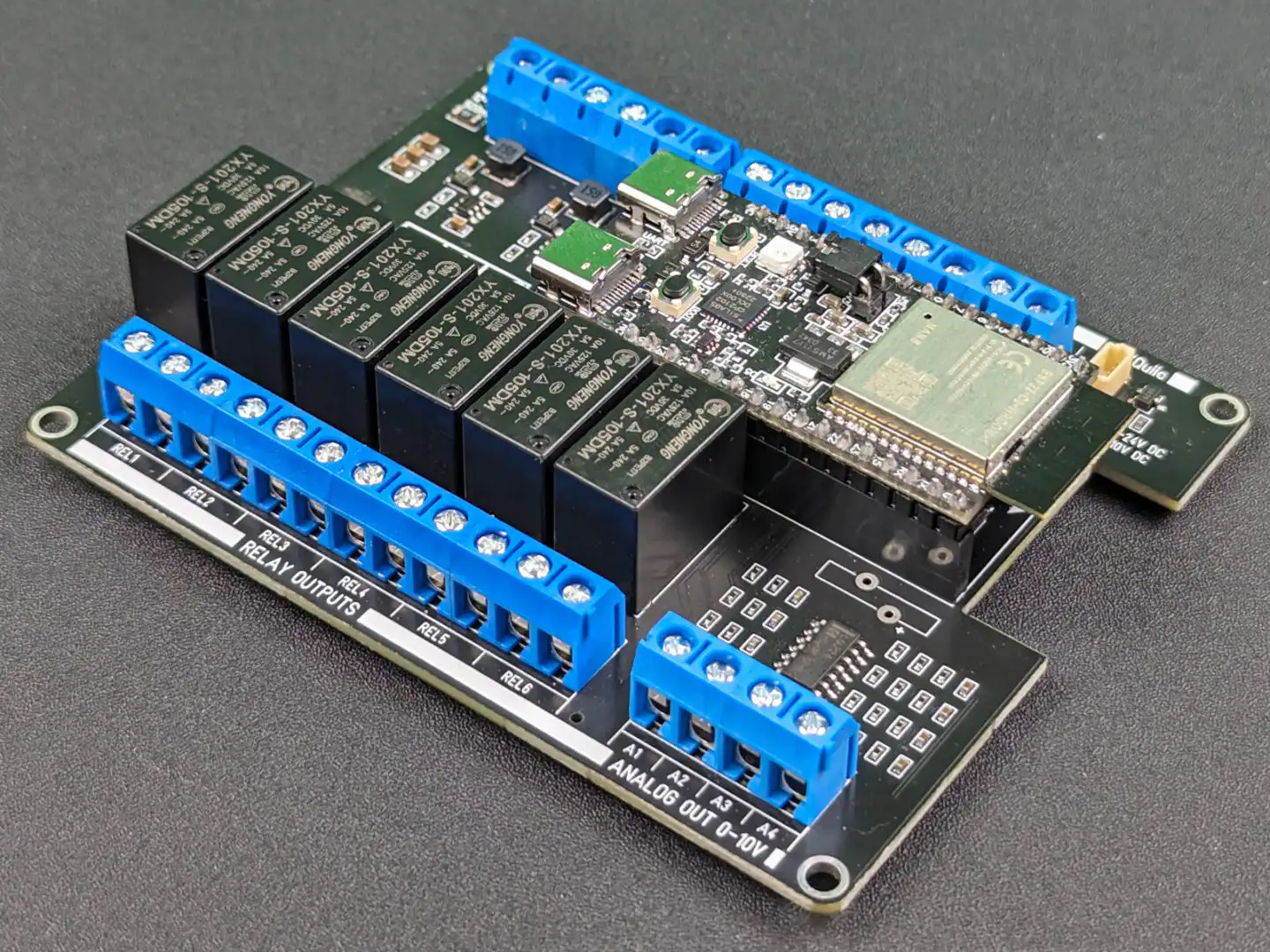

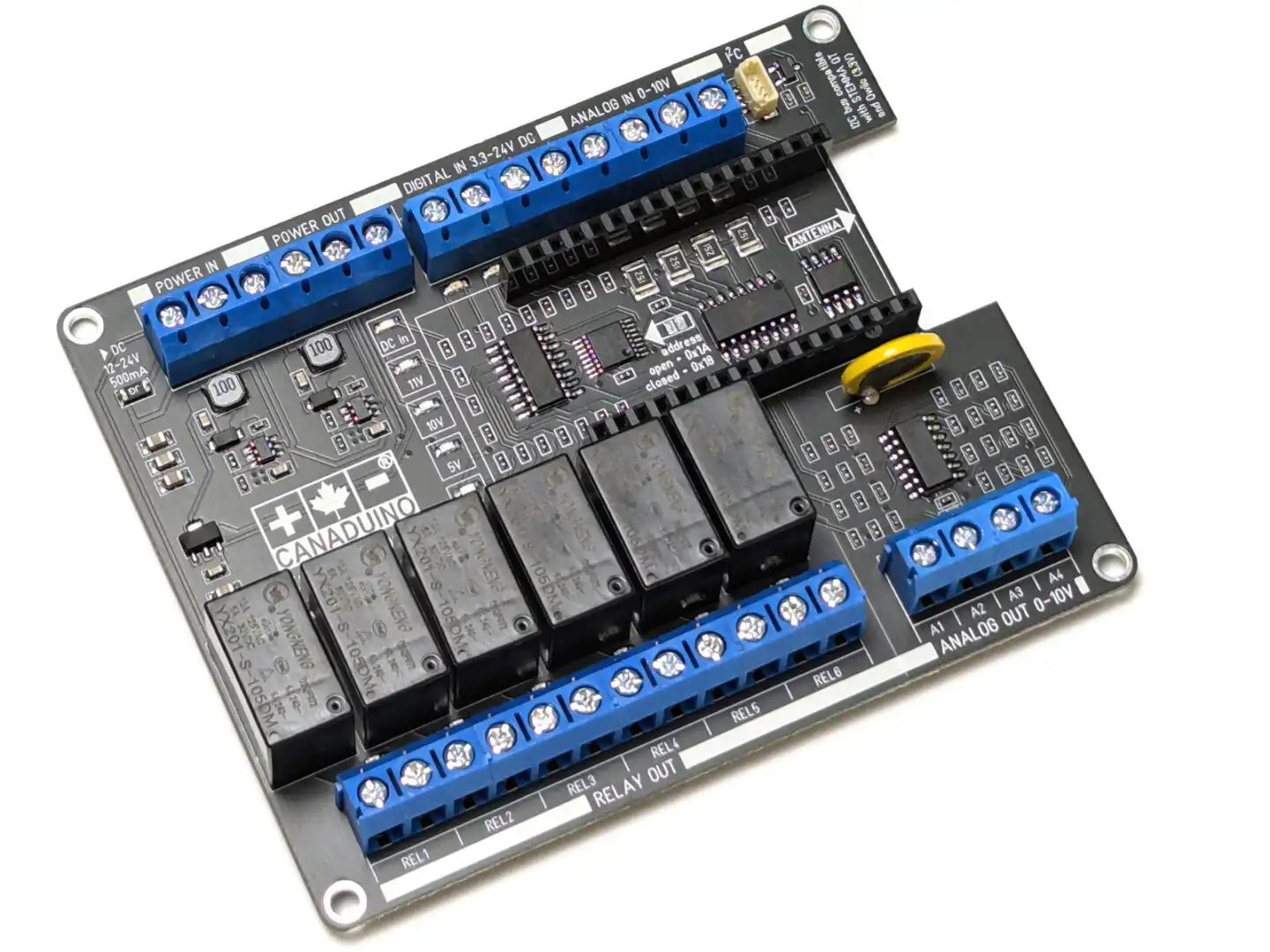

CANADUINO ESP32 PLC-100 V1 is a ready assembled and tested new version of our 100x80mm small Programmable Logic Controller module. It adds Wi-Fi 6, Bluetooth 5, ZigBee, more memory and a lot more processing power to the familiar design.

The CANADUINO ESP32 PLC-100 V1 is a fully fitted, tiny Programmable Logic Controller for the Espressif ESP32-C6-DevKitC module (compatible module available HERE) and comes with a footprint of just 100 x 80mm. It offers a very affordable opportunity to add programmable controls to different kinds of applications and supports the most common wireless communication protocols.

ESP32 PLC-100 can be programmed using Arduino IDE, Open-PLC, different ladder programming tools, or code-free applications like Visuino from Mitov.

ESP32 PLC-100 is extremely budget-friendly and provides a multitude of functions and power compared to much more expensive PLCs from big brands like ABB or Siemens.

This version of our PLC-100 module has a Qwiic-compatible I2C connector (3.3V logic level) on board which allows for easy expansion with sensors, displays, or any other I2C compatible devices.

A high-precision RTC chip DS3231 supports you with scheduled and timer controlled applications.

A few use cases:

1. Closing the garage door after the car is parked in position and no movement is recorded for 2 minutes.
2. Starting background music with the garden watering 30 minutes after sunset when soil moisture is <20%.
3. Injecting water when the humidity in your smoker drops <60% but the temperature is >70C.

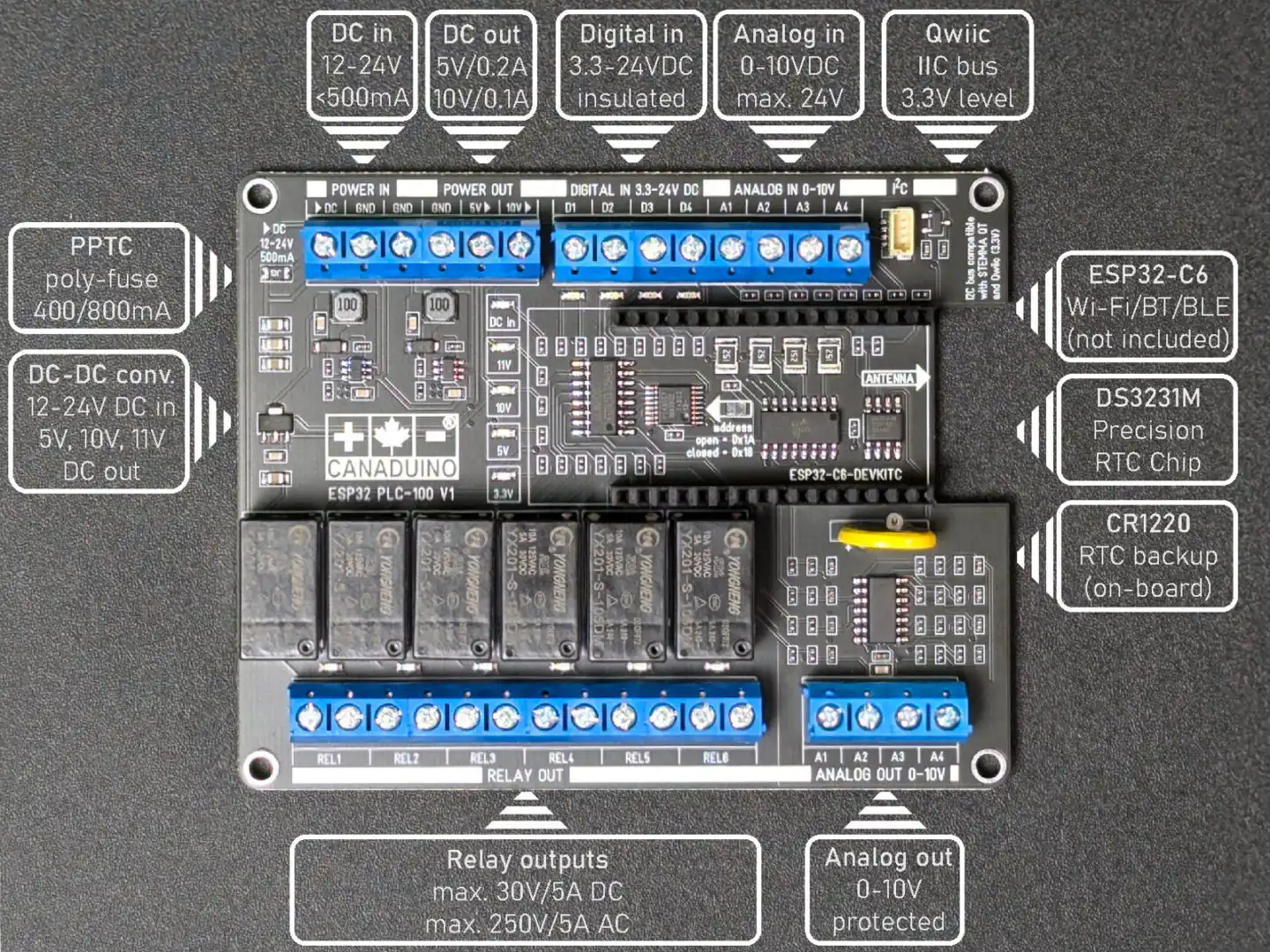

Basic features:

– Power supply 12*-24V DC, 0.5A
– 4 analog 0-10V inputs (adjustable res.)
– 4 analog 0-10V outputs (2.5mV res.)
– 4 digital inputs 3.3-24V
– 6 digital 250V/5A relay outputs
– I2C bus (3.3V) with Qwiic connector for sensors, displays etc.
– Supply voltages for auxiliary devices:
+ 3.3V (100mA, through I2C bus)
+ 5V (100mA) on terminal block
+ 10V (100mA for 0-10V devices, on terminal block)
– DS3231 real-time-clock with backup battery
– PCB dimensions: 100 x 80mm

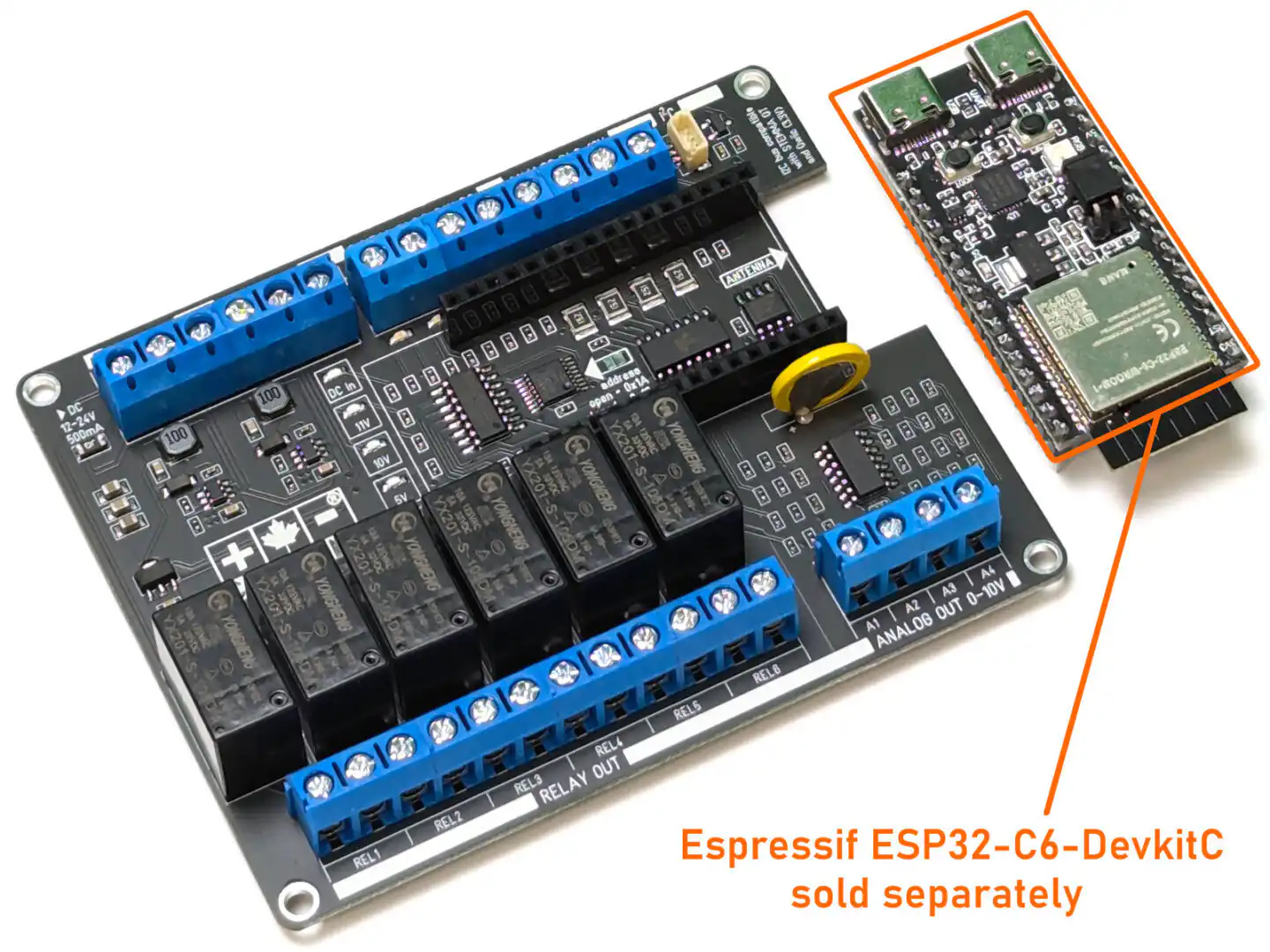

The module is assembled and only requires an ESP32-C6-DevKitC module to be ready for your program development.

Buy here: Espressif compatible ESP32-C6-DevKitC

Download a demo sketch to test inputs, outputs and the real-time-clock

Download schematic (PDF)

*At 12V supply voltage, the maximum analog output voltage is limited to about 9.6V, which is still within the allowed tolerance for 0-10V systems. To achieve full 10V analog output voltage, the supply voltage must be at least 12.2V DC.

Programmable Logic Controller (PLC)
Type	MEGA328 PLC-100 DIY Kit V2	MEGA328 PLC-100 SMD V2	RP2040 PLC-100 SMD V1	ESP32 PLC-100 SMD V1	MEGA2560 PLC-300 DIY Kit V1
Required MCU Module	Arduino Nano  Atmega328	Arduino Nano Atmega328	Waveshare RP2040 Zero	Espressif ESP32-C6-Devkit-C	Arduino MEGA 2560
Supply Voltage	12-24V DC	12-24V DC	12-24V DC	12-24V DC	12-24V DC
Digital Inputs	4 x 3.3-24V DC	4 x 3.3-24V DC	4 x 3.3-24V DC	4 x 3.3-24V DC	16 x 5-24V DC
Analog Inputs 0-10V	4	4	4	4	8
Relay Outputs 5A	6	6	6	6	14
Analog Outputs 0-10V	4	4	4	4	8
Real-Time-Clock	DS1307	DS1307	DS3231	DS3231	- -
RS232	- -	- -	- -	- -	optional
I2C	5V	5V	3.3V	3.3V	5V
SPI	- -	- -	- -	- -	5V

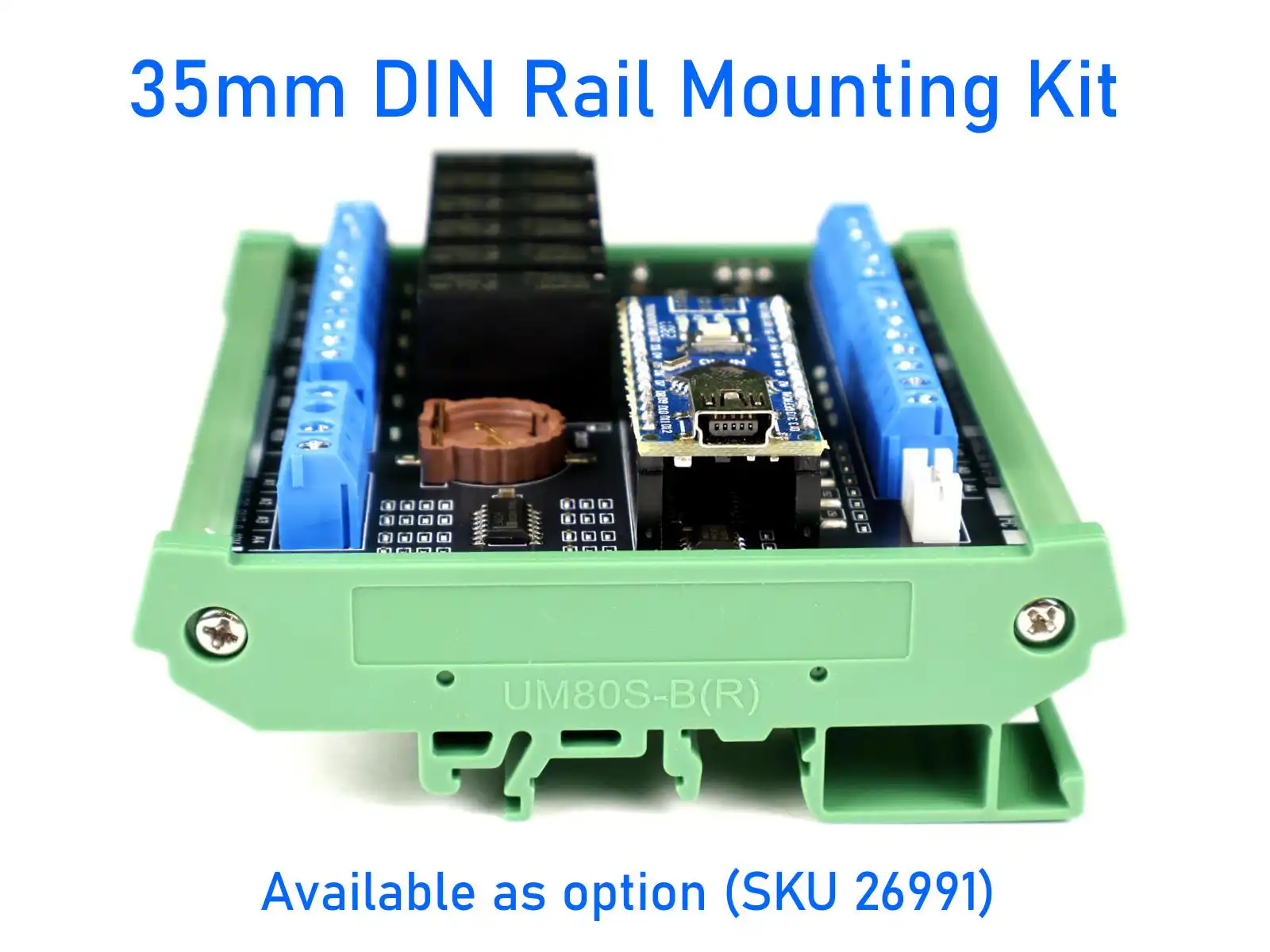

DIN rail mount	- -	- -	- -	- -	optional
Assembling Type	Soldering Kit	Assembled	Assembled	Assembled	Soldering Kit
PCB Dimensions	80x100mm	80x100mm	80x100mm	80x100mm	122x209mm
Part # (Go to)	26442	26941	26948	26942	26995
