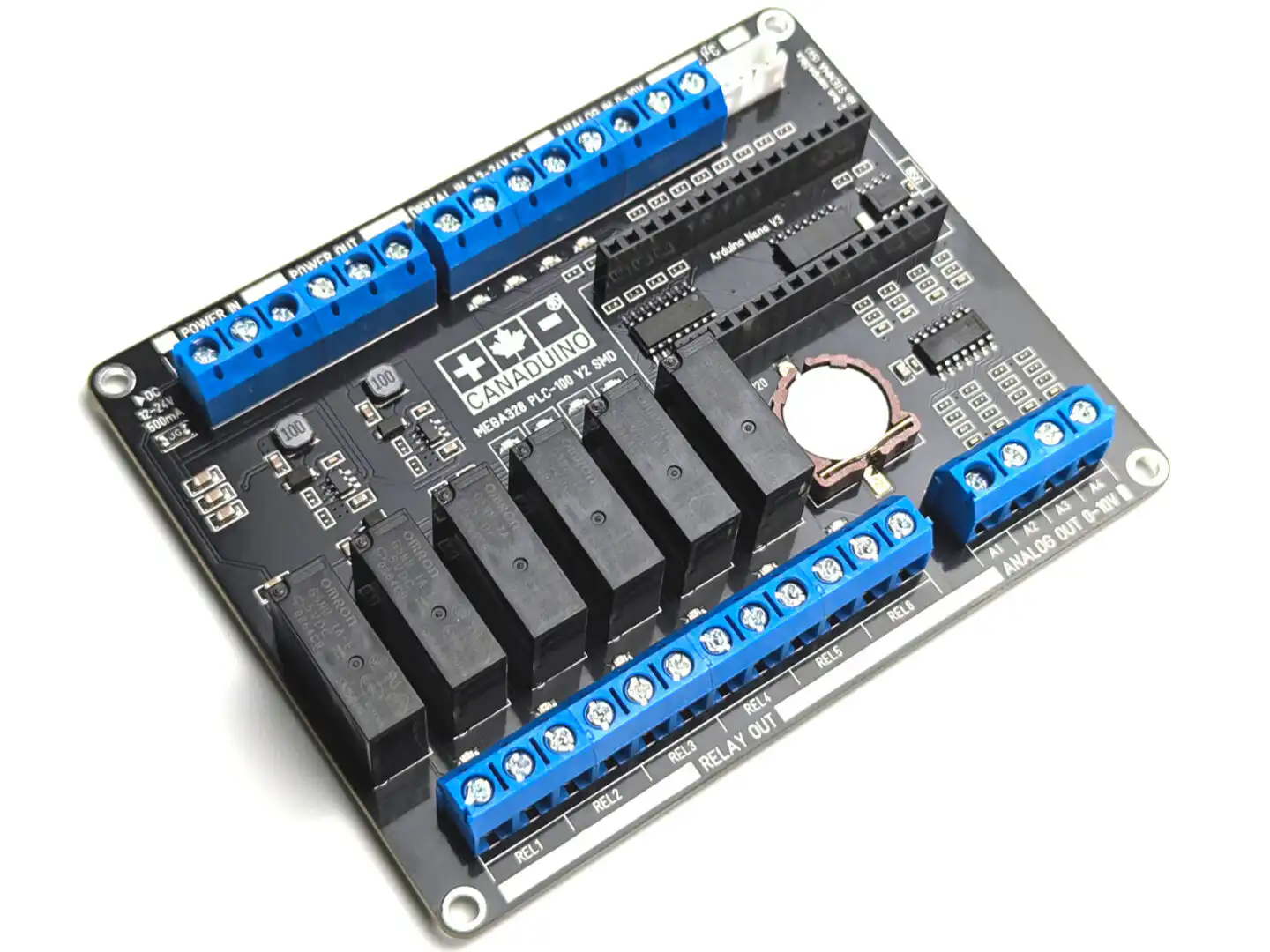

CANADUINO MEGA328 PLC-100 V2 SMD (for Arduino Nano)

Description

CANADUINO MEGA328 PLC-100 V2 SMD is a ready assembled and tested variant of our new version V2.

It provides the same features like the DIY soldering kit (SKU 26442) but does not require any soldering.

The CANADUINO MEGA328 PLC-100 V2 SMD is a fully fitted, tiny Programmable Logic Controller for Arduino Nano V3 (sold separately) with a footprint of only 100 x 80mm. It offers a very affordable opportunity to add programmable controls to different kinds of applications.

PLC-100 V2 is compatible with Arduino Nano V3 (Atmega328P) 5V modules, and can be programmed using Arduino IDE, Open-PLC, different ladder programming tools, or code-free applications like Visuino from Mitov.

PLC-100 V2 fits just any budget and delivers more power and versatility than many other control devices.

The new version V2 has a STEMMA-compatible I2C connector (5V logic level) on board which allows for easy expansion with sensors, displays, or any other I2C compatible devices.

A real-time-clock chip DS1307 supports you with scheduled and timer controlled applications.

A few use cases:

1. Closing the garage door after the car is parked in position and no movement is recorded for 2 minutes.
2. Starting background music with the garden watering 30 minutes after sunset when soil moisture is <20%.
3. Injecting water when the humidity in your smoker drops <60% but the temperature is >70C.

Basic features:

– Power supply 12*-24V DC, 0.5A
– 4 analog 0-10V inputs (10mV res.)
– 4 analog 0-10V outputs (2.5mV res.)
– 4 digital inputs 3.3-24V
– 6 digital 250V/5A relay outputs
– I2C bus (5V) with STEMMA connector for external sensors, displays etc.
– DS1307 RTC with battery backup (CR1220 coin cell included)

Advantages over the old version:

– Power supply 12*-24V DC instead of 12V DC only
– High-efficiency DC-DC voltage controller instead of LDO and Zener diodes
– Analog outputs provide full 0-10V swing with less PWM ripple
– Better protected digital inputs with wider voltage range
– I2C connector “STEMMA” (5V) for devices like sensors or displays

The module is assembled and only requires the coin cell battery and an Arduino Nano to be ready for your program development.

Buy here: Arduino Nano V3 module with Mini-USB
Buy here: Arduino Nano V3 module with USB Type-C

Download a demo sketch to test inputs, outputs and the real-time-clock

*At 12V supply voltage, the maximum analog output voltage is limited to about 9.6V, which is still within the allowed tolerance for 0-10V systems. To achieve full 10V analog output voltage, the supply voltage must be at least 12.2V DC.

Download schematic and port-mapping

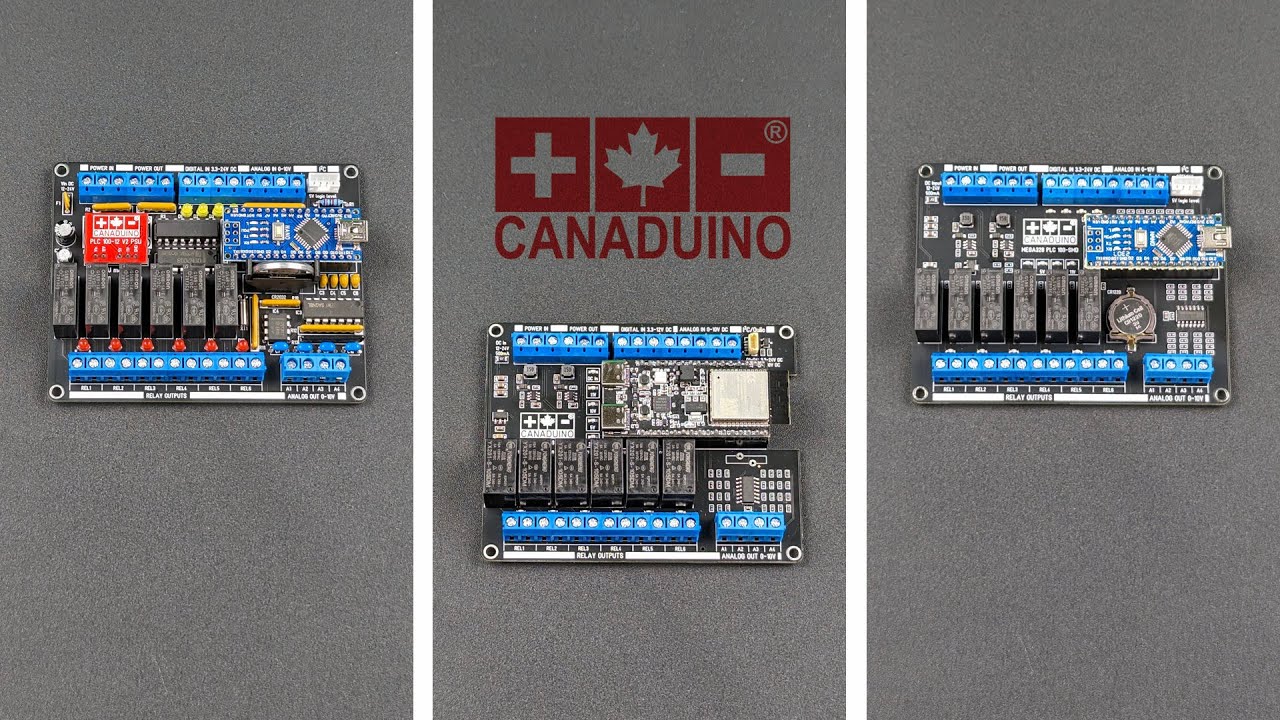

Programmable Logic Controller (PLC)
Type	MEGA328 PLC-100 DIY Kit V2	MEGA328 PLC-100 SMD V2	RP2040 PLC-100 SMD V1	ESP32 PLC-100 SMD V1	MEGA2560 PLC-300 DIY Kit V1
Required MCU Module	Arduino Nano  Atmega328	Arduino Nano Atmega328	Waveshare RP2040 Zero	Espressif ESP32-C6-Devkit-C	Arduino MEGA 2560
Supply Voltage	12-24V DC	12-24V DC	12-24V DC	12-24V DC	12-24V DC
Digital Inputs	4 x 3.3-24V DC	4 x 3.3-24V DC	4 x 3.3-24V DC	4 x 3.3-24V DC	16 x 5-24V DC
Analog Inputs 0-10V	4	4	4	4	8
Relay Outputs 5A	6	6	6	6	14
Analog Outputs 0-10V	4	4	4	4	8
Real-Time-Clock	DS1307	DS1307	DS3231	DS3231	- -
RS232	- -	- -	- -	- -	optional
I2C	5V	5V	3.3V	3.3V	5V
SPI	- -	- -	- -	- -	5V
DIN rail mount	- -	- -	- -	- -	optional
Assembling Type	Soldering Kit	Assembled	Assembled	Assembled	Soldering Kit
PCB Dimensions	80x100mm	80x100mm	80x100mm	80x100mm	122x209mm
Part # (Go to)	26442	26941	26948	26942	26995
