CANABLOX® 4-Channel 16-Bit ADC I2C (CX-ADS1115-S)

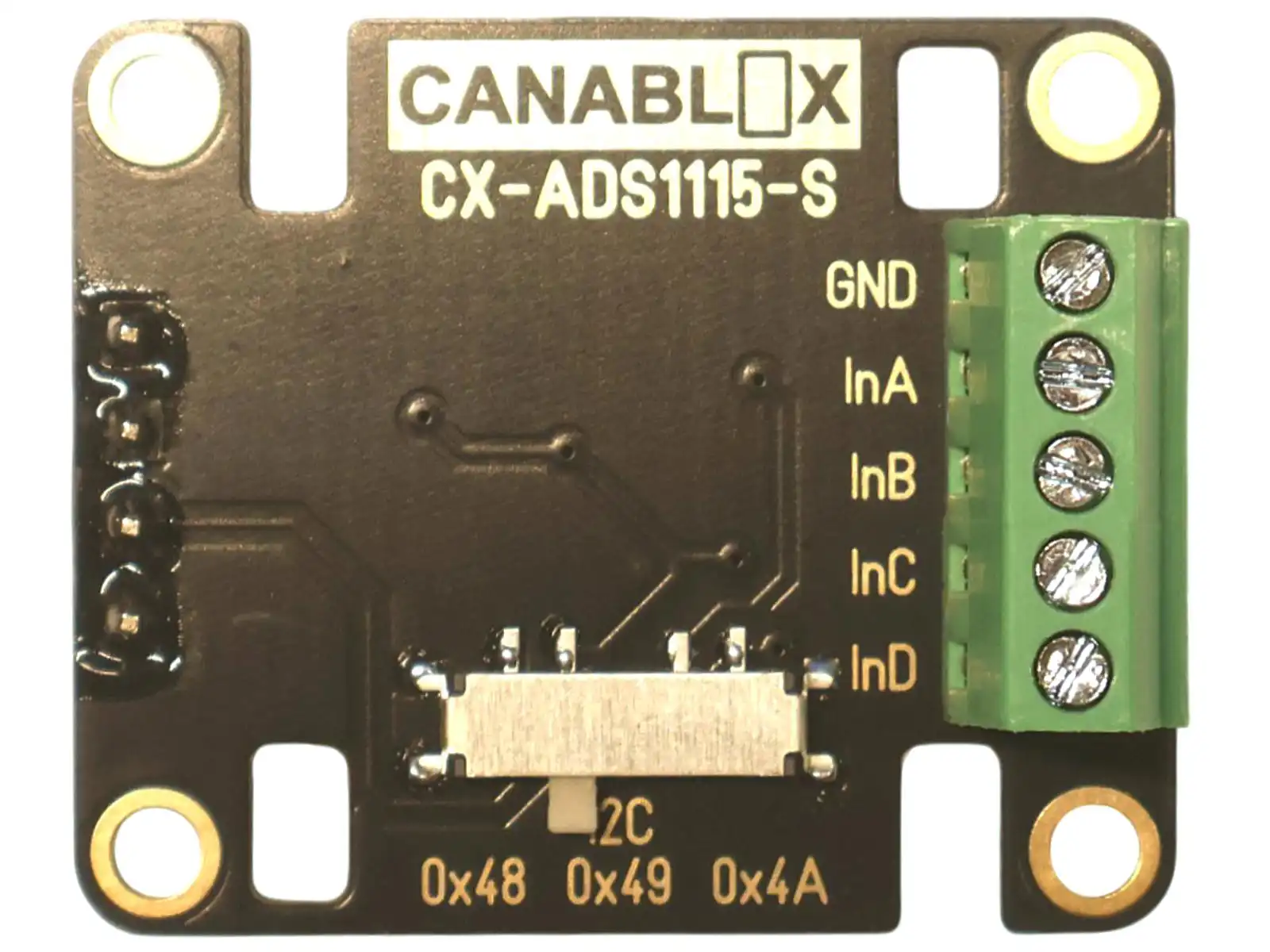

The CANABLOX® 4-Channel 16-Bit ADC CX-ADS1115-S can capture 4 analog voltage values between 0 and 3.3V connected between GND and its inputs. The maximum resolution in this mode is 0.25mV per bit. The module comes in the CANABLOX® Form Factor "S" (Single Slot).

Selectable I2C address: 0x48, 0x49, 0x4A

Code example:
Download a demo sketch (tested with XIAO ESP32C6) that reads 4 analog values and sends them to the serial monitor.

>>> Find the documentation in the comments inside the demo code. <<<

PDF Datasheet:
Download ADS1115 PDF Datasheet

This is in the bag:
1 x CANABLOX® module
1 x male pin header 4-pin
1 x screw terminal 5-pin
1 x CANABLOX® I2C Cable 5cm

Note:
Through-Hole (TH) connectors, like the I2C pin header or screw terminals, are included but not factory assembled.

The CANABLOX® ecosystem

CANABLOX® is a modular, clean, stackable ecosystem that replaces the chaos of traditional prototyping with I2C-connected building blocks.

CANABLOX® is not just a hobby tool; it’s a stepping stone from prototype to finished product. With over 60 modules envisioned, from environmental sensors to serial bridges and audio applications, CANABLOX® becomes a platform, not just a product.

Every CANABLOX® module connects directly to a sturdy baseplate or standardized cables, letting you build solid, real-world systems - without the clutter.

All modules use standardized CANABLOX® slot sizes and can be connected either through 4-pin JST-SH cables (compatible with Qwiic and Stemma QT) or by direct mounting onto the baseplate with headers. Every baseplate includes I2C headers (not assembled) and mounting hardware.
