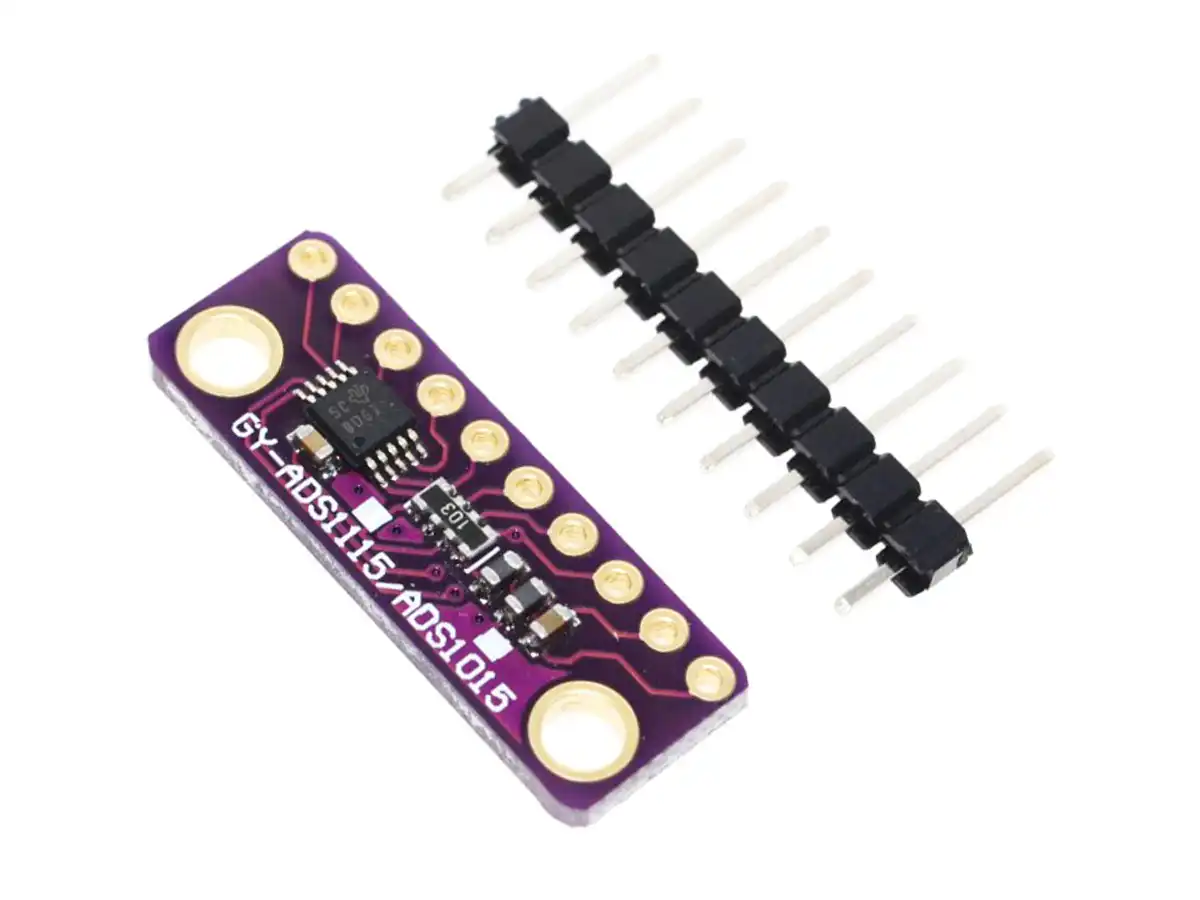

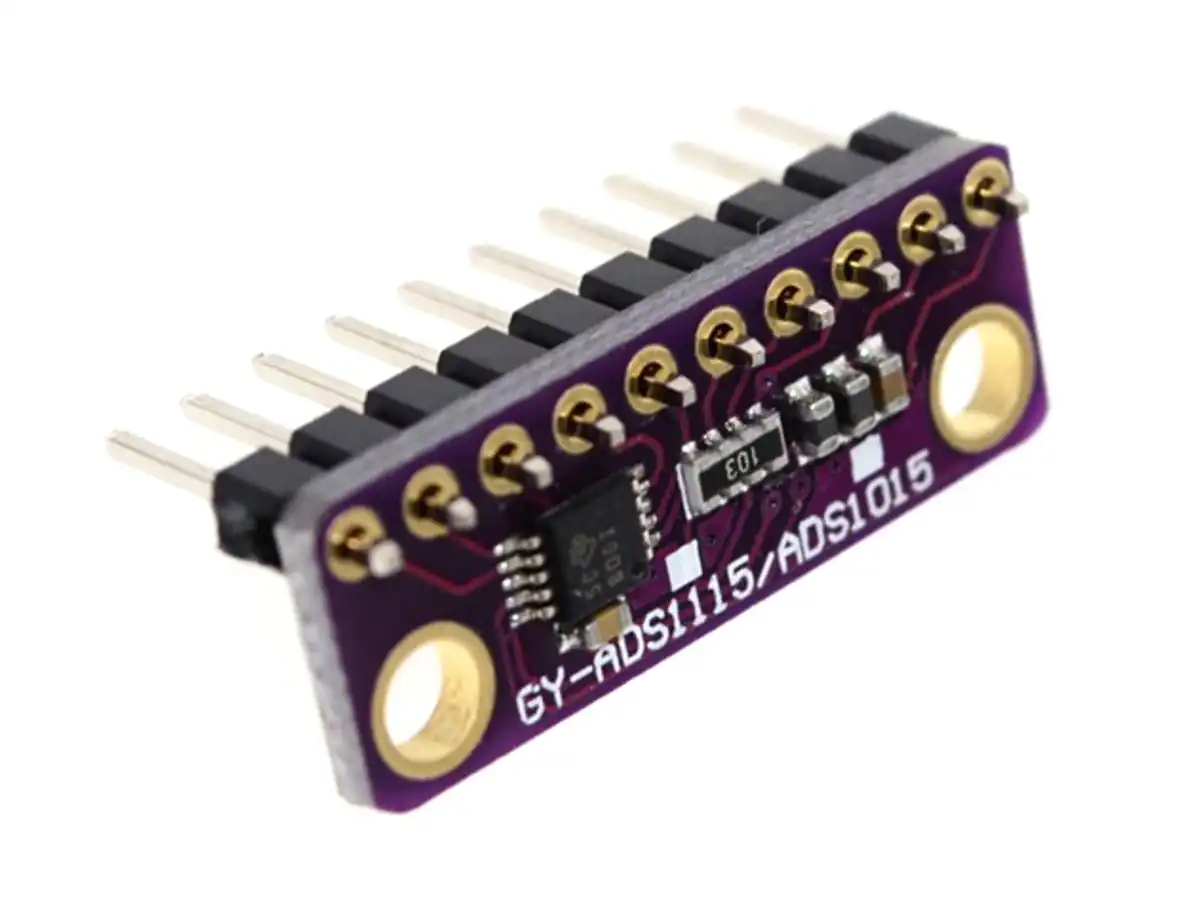

The ADS1115 ADC Module is a precision, low-power, 16-bit, I2C-compatible, analog-to-digital converter (ADCs).
It incorporates a low-drift voltage reference and an oscillator, a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS1115 well-suited for power-constrained sensor measurement applications.
The sensor performs conversions at data rates of up to 860 samples per second (SPS). The PGA offers input ranges from 256 mV to 6.144 V, allowing precise large- and small-signal measurements.

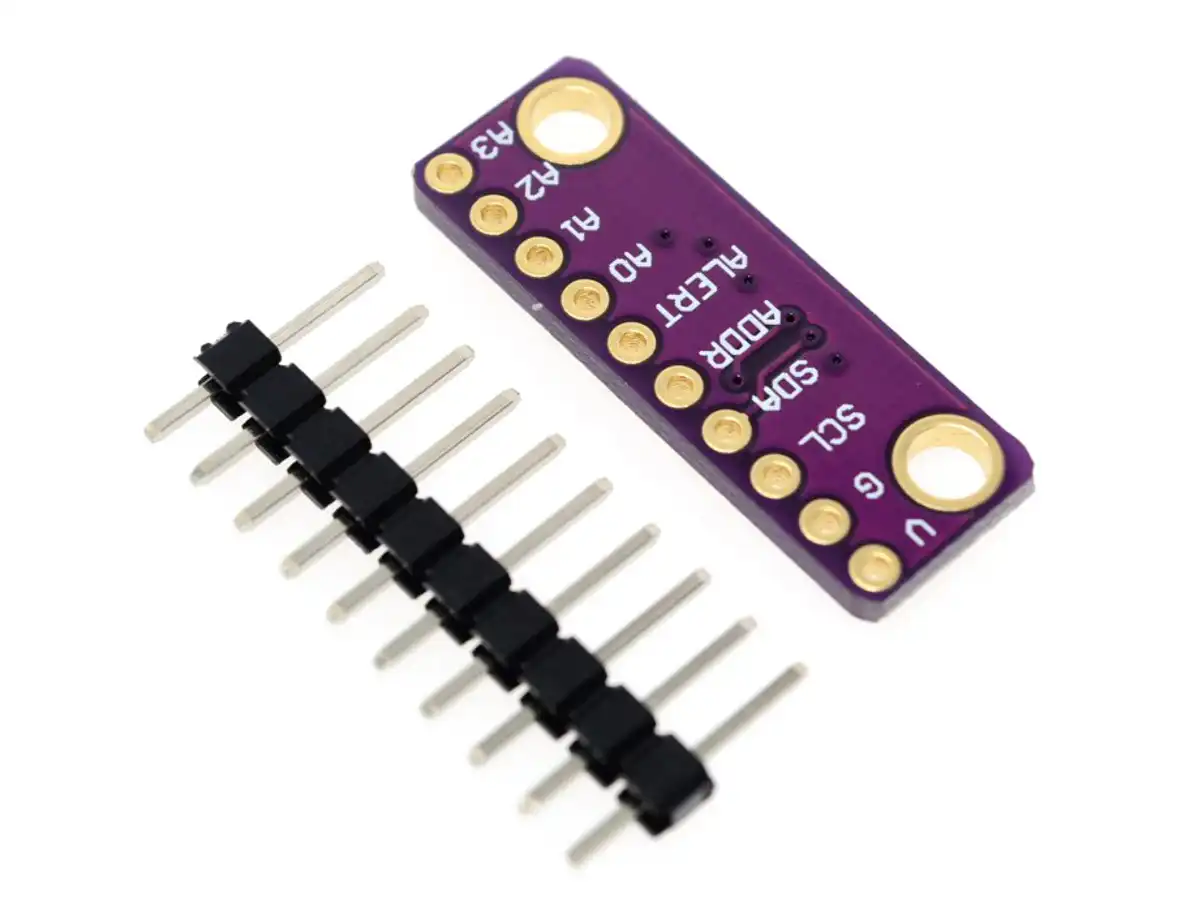

An input multiplexer (MUX) allows for two differential or four single-ended input measurements. Use the digital comparator in the ADS1115 for undervoltage and overvoltage detection.
The ADS1115 ADC Module operates in either continuous-conversion mode or single-shot mode. The device is automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.
The wide operating voltage range of 2.0 to 5.5V makes it the ideal choice for 3.3V and 5V microcontroller applications. The average current consumption in continuous conversion mode is just about 0.15mA.
Please use an online search to find plenty of example projects for Arduino, Raspberry etc.
2 reviews for ADS1115 ADC Module 4-Channel 16-Bit I2C
Rated 4 out of 5
gerald.wolfe (verified owner)–
Works well after finding the right library. I have tried 2 devices so far, both are fine. The results match my voltmeter and are stable and reproducible. The I2C comm works fine too. Good product.
Rated 5 out of 5
Gordon –
Great product. I had a problem with the first one I received and thy sent me another one without hesitation
Only logged in customers who have purchased this product may leave a review.
