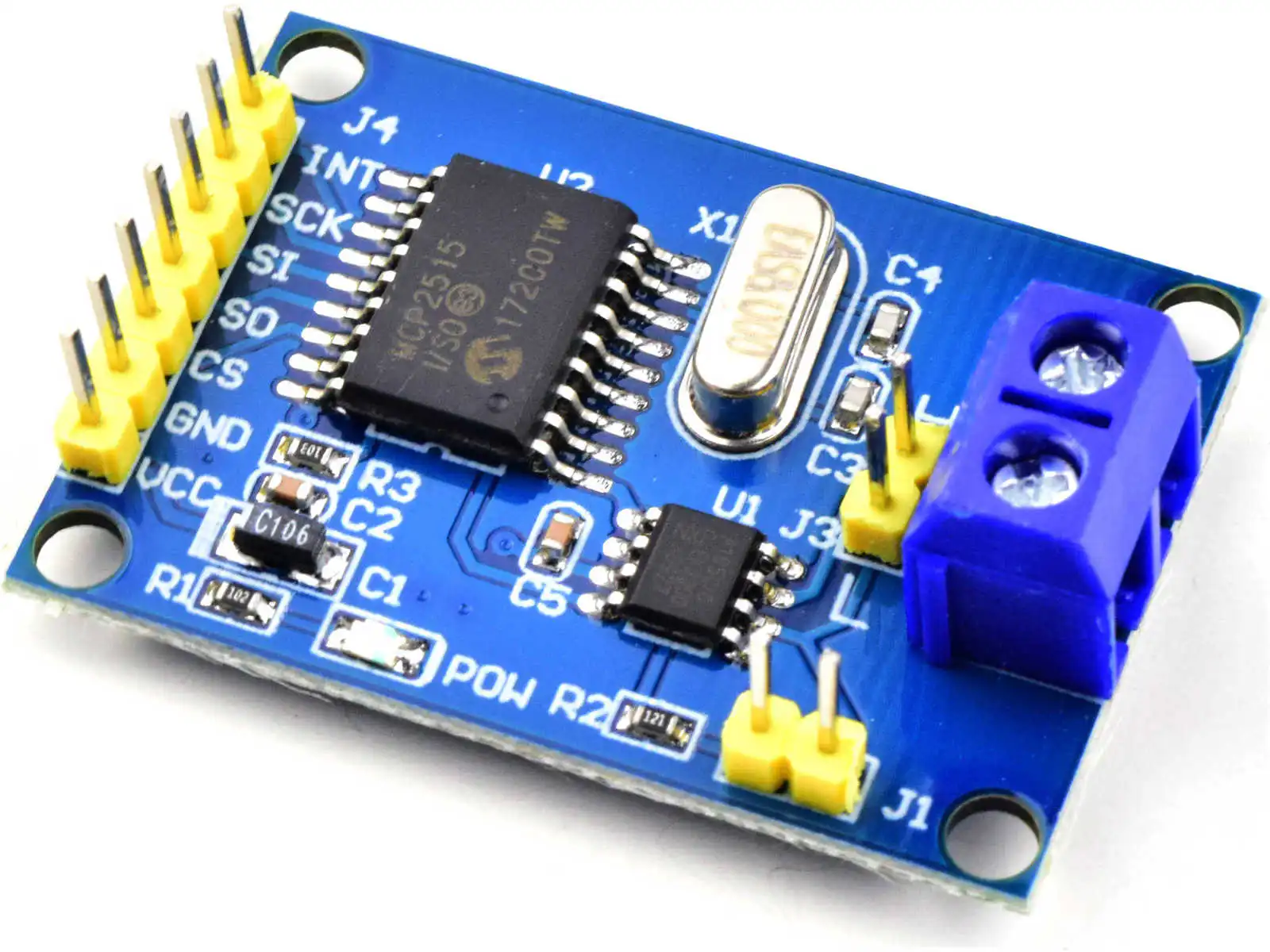

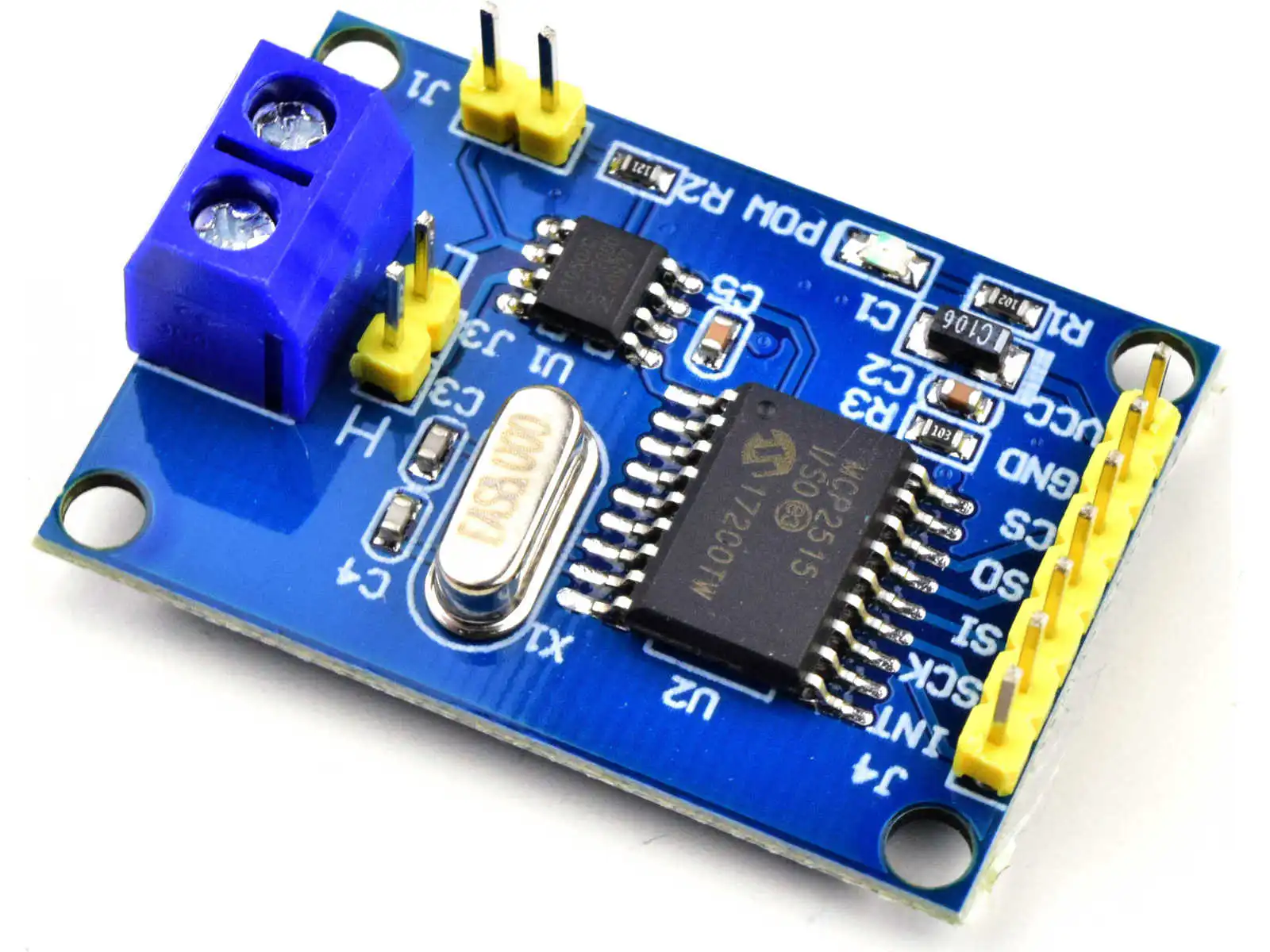

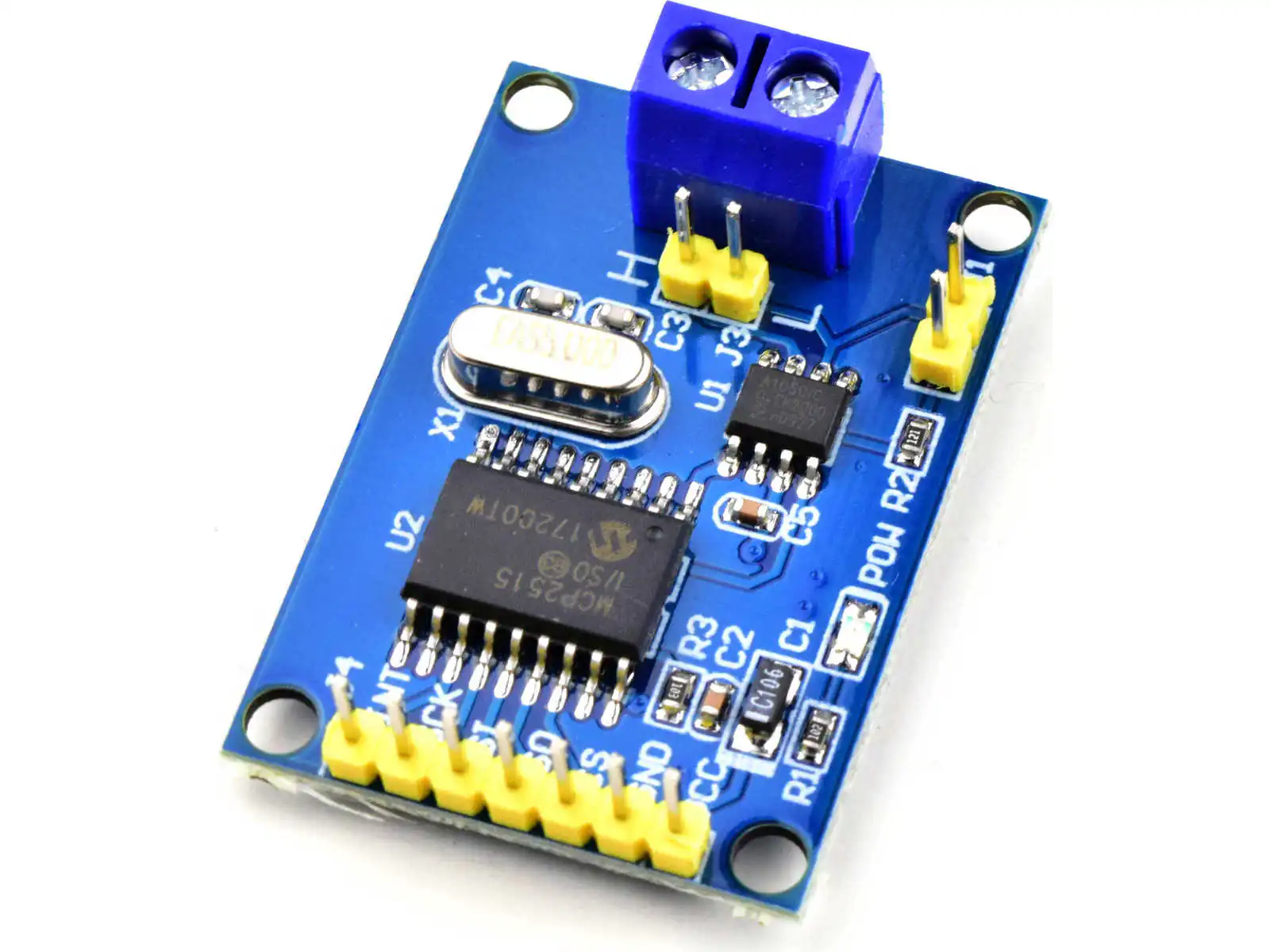

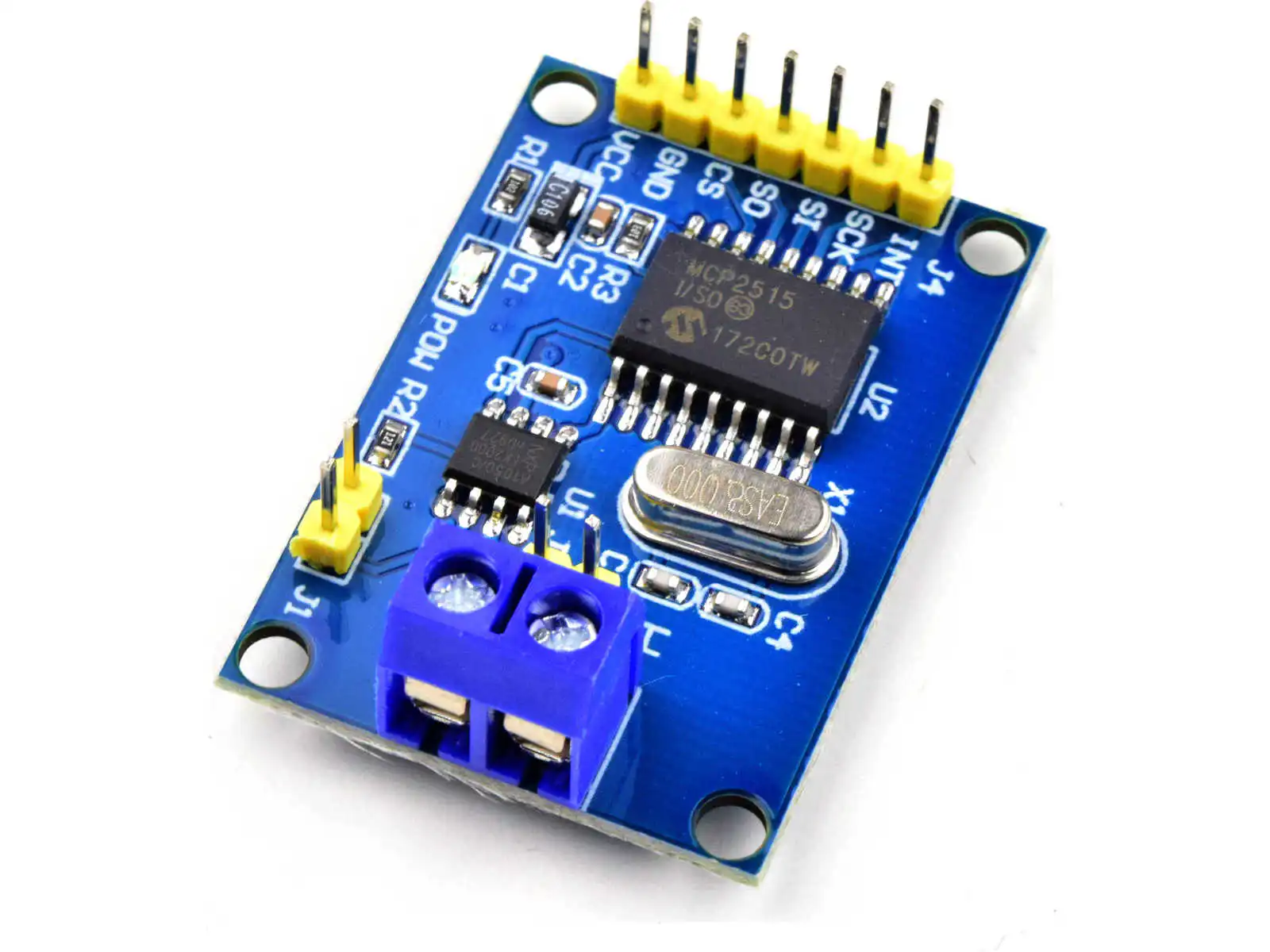

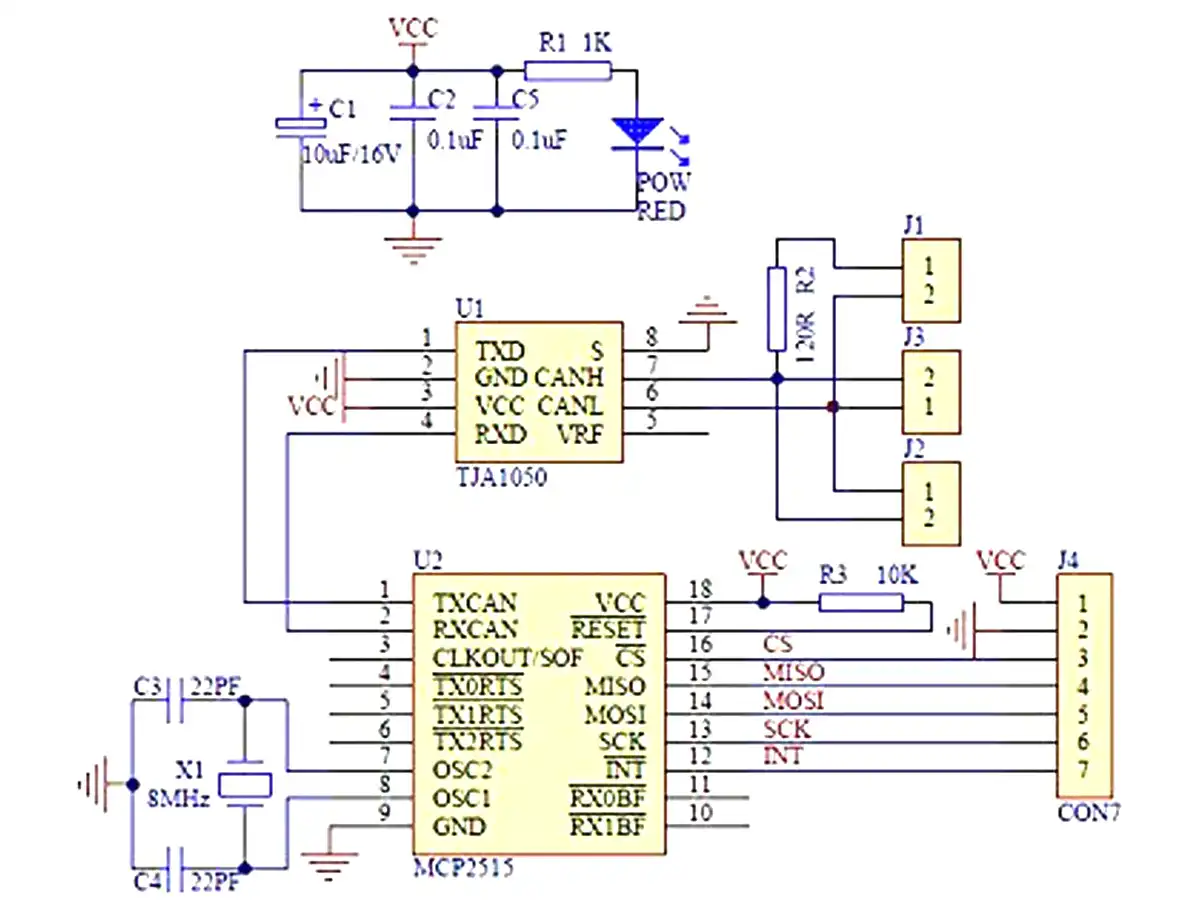

SPI CAN Bus Interface with MCP2515 and TJA1050

What Does the Module Do?

This SPI CAN Bus Interface enables your microcontroller (like an Arduino) to send and receive data over a CAN bus. The CAN protocol is widely used in systems where multiple devices need to share data reliably, such as in vehicles (engine control units, ABS, etc.), robotics, and industrial machinery.

How to Connect the Module to an Arduino (or Other Microcontroller)

Here are the steps to connect it:

Wiring the Module

1. Power Connections:
   • Connect the module's VCC to a 5V supply.
   • Connect the module's GND to the Arduino's ground.
2. SPI Connections: The MCP2515 communicates with the microcontroller via SPI. Connect the pins as follows:
   • CS (Chip Select) → Any digital pin on the Arduino. You’ll define this pin in your code.
   • SCK (Clock) → Arduino’s SPI clock pin.
   • SI (Slave In) → Arduino's MOSI pin.
   • SO (Slave Out) → Arduino's MISO pin.
   • INT (Interrupt) → Any digital pin on the Arduino. This pin is optional but can be used for efficient message handling.
3. CAN Bus:
   • CAN_H: Connect to the CAN bus high line.
   • CAN_L: Connect to the CAN bus low line.
   • Use a twisted pair for the CAN_H and CAN_L lines to minimize noise.
   • Include a 120-ohm termination resistor across CAN_H and CAN_L at both ends of the CAN bus.

Things to Consider

1. CAN Speed: Ensure that all devices on the CAN bus operate at the same baud rate (e.g., 125 kbps, 250 kbps, or 500 kbps).
2. Termination Resistors: Place 120-ohm resistors at both physical ends of the CAN bus. Some modules include a built-in resistor that you can enable or disable via a jumper.
3. Power Supply: Ensure the module and the Arduino share the same ground, and the module receives a stable 5V supply.
4. Debugging: If the module doesn't work as expected, check:
   • SPI connections.
   • Correct initialization of the MCP2515.
   • Baud rate and configuration matching the CAN network.

With this setup, your microcontroller can successfully communicate on a CAN network!
