RS232 to TTL adapter MAX232, provides RS232 port for MCU or Arduino

Overview

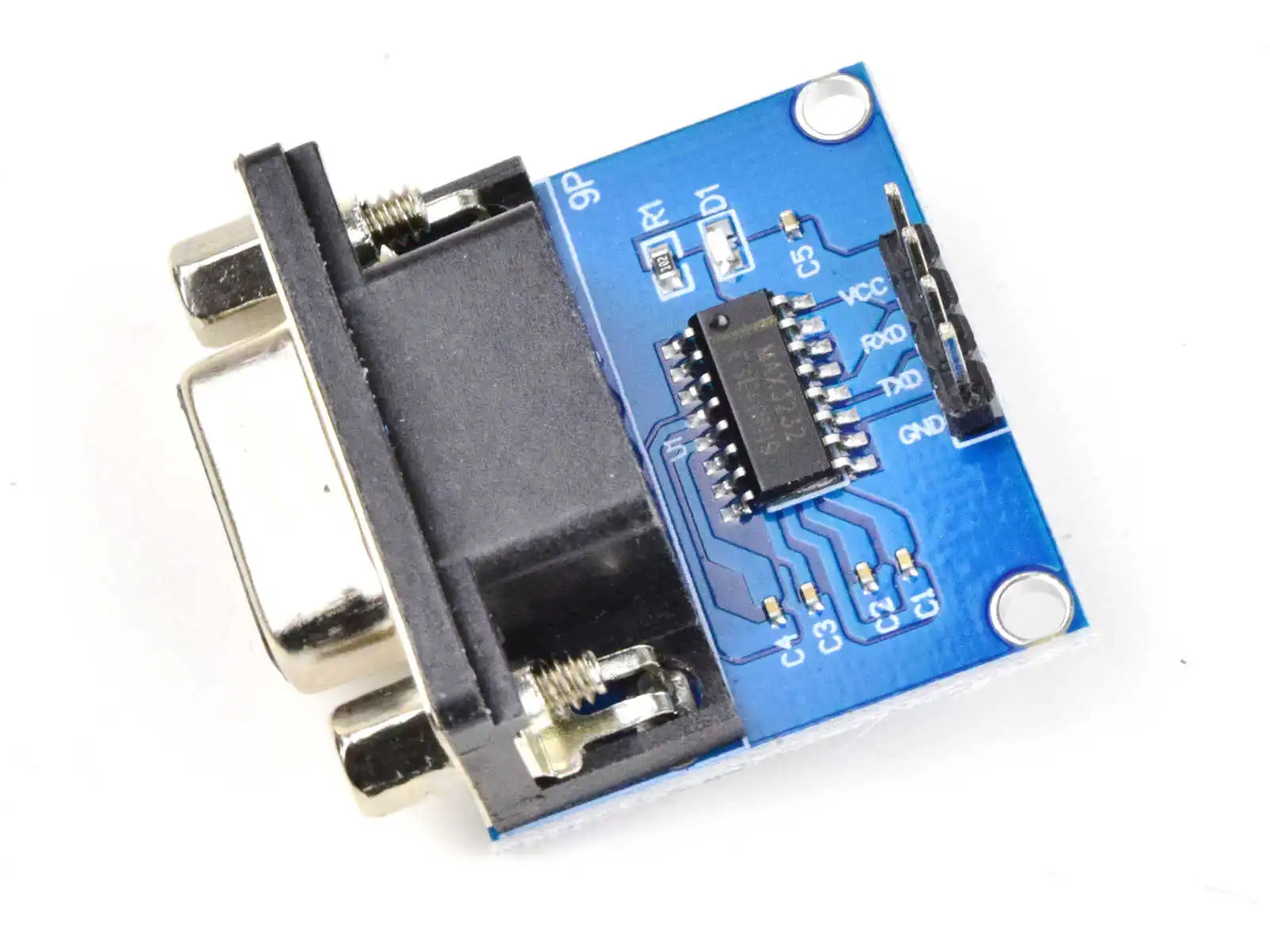

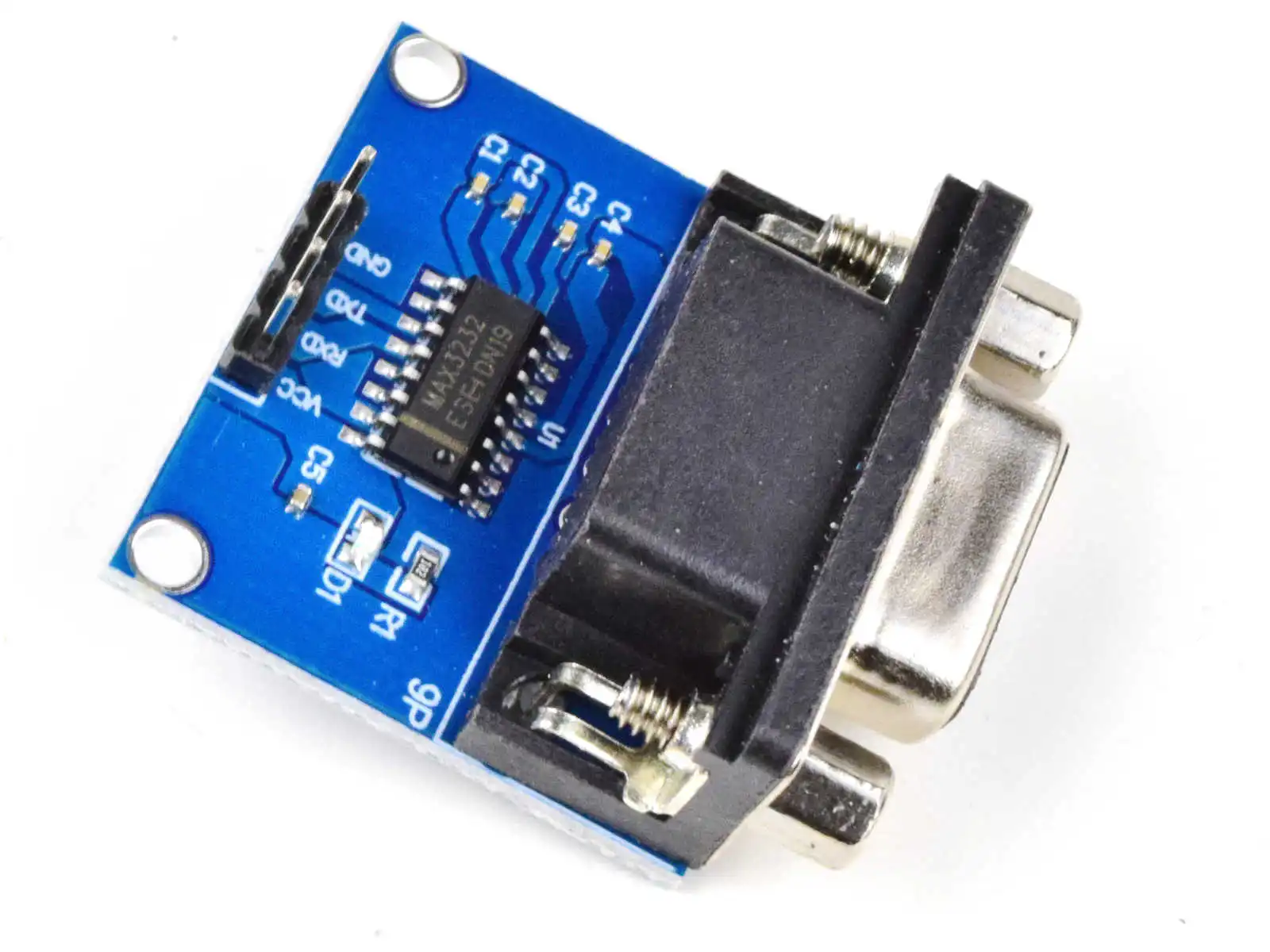

This rs232 to ttl adapter board provides level conversion between standard RS-232 signal levels and logic-level TTL signals used by microcontrollers, embedded systems, and serial peripherals. The board uses a MAX232 or equivalent charge pump driver IC to translate ±12 V RS-232 voltage levels to TTL levels compatible with UART interfaces on devices such as Arduino, PIC, AVR, STM32, and other microcontroller platforms.

The adapter enables communication with legacy equipment, industrial controllers, and PC COM ports that use RS-232, while interfacing directly to 3.3 V or 5 V logic devices. It includes the necessary capacitive charge pump components to generate the required RS-232 voltage levels from a single supply and provides standard pin headers or screw terminals for signal connections.

Key Features

• Converts RS-232 voltage levels to TTL logic levels and vice versa
• Based on the MAX232 charge pump driver IC
• Supports standard UART signal directions
• Compatible with 5 V and 3.3 V logic systems (depending on supply and design)
• Includes onboard capacitors required for internal charge pump operation
• Provides standard pin header or terminal interface for easy connection
• Suitable for microcontroller and PC serial communication projects

Electrical and Usage Notes

• Requires a DC supply voltage appropriate for the MAX232 IC and logic side
• RS-232 ports typically operate at ±5 V to ±12 V; this adapter translates those levels to TTL logic
• Logic side voltage must match the target MCU or device logic level
• UART communication parameters (baud rate, parity, stop bits) must be configured in the host and target devices
• Ensure correct TX, RX, RTS, and CTS wiring where applicable
• Avoid applying external voltages beyond rated levels to avoid damage

Typical Applications

• Interfacing microcontrollers with RS-232 serial devices
• Communication between PCs or legacy terminals and embedded systems
• Serial data logging and debugging
• Industrial controller communication
• Firmware upload and serial console access

Specifications
