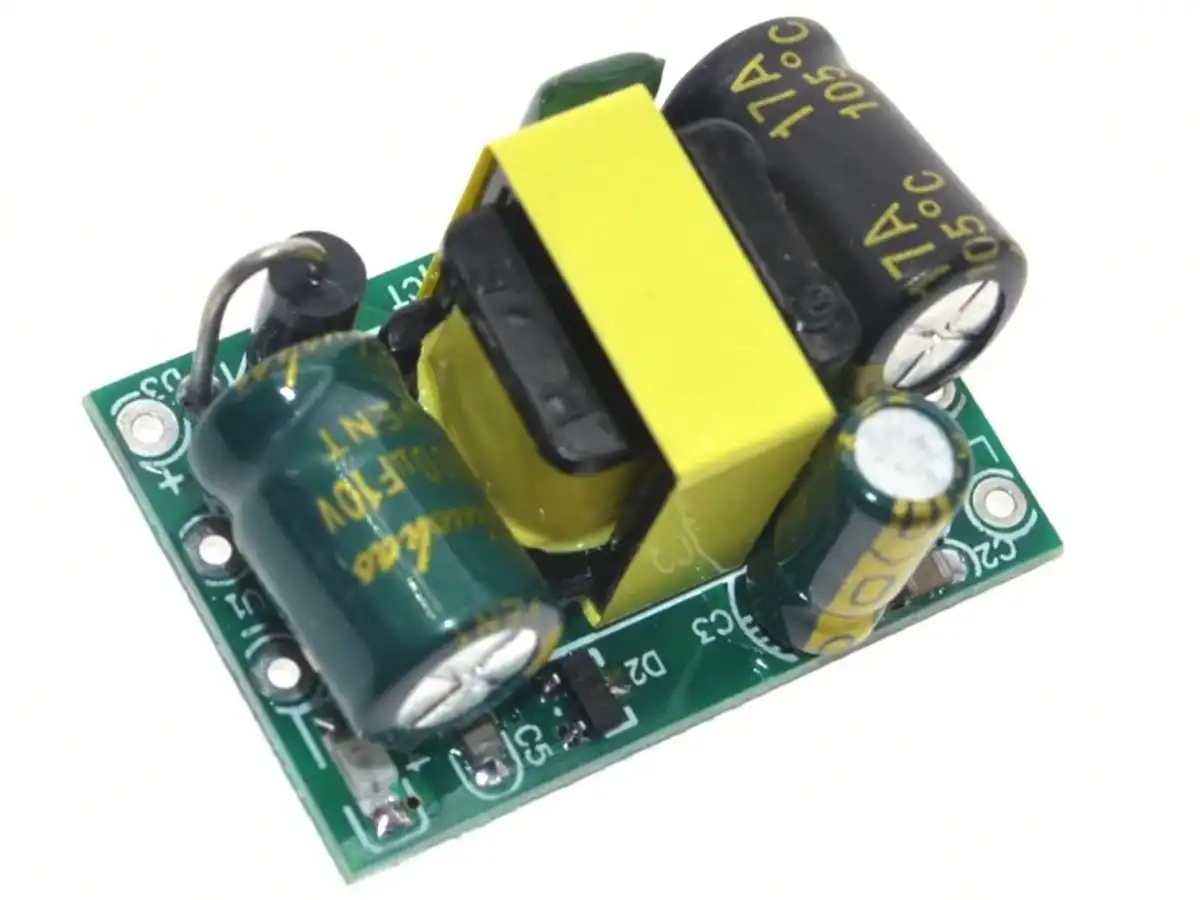

3.5W AC-DC Converter 5V 700mA - 85-265VAC input

The era of heavy transformers is over. Modern designs use compact, efficient switching converters like this insulated AC-DC power supply module. It converts 85-265V AC mains into a stable 5V DC output with up to 700mA current capability.

This 3.5W AC-DC Converter 5V module includes over-temperature and over-current protection and will even survive a short circuit on its output.

Specifications:

• Input voltage: AC 85-265V 50/60Hz or DC 100-370V
• Input current: 0.03A (AC 110V) / 0.015A (AC 220V)
• Input inrush current: 20A
• Output voltage: DC 5V (+/- 0.2V)
• Output current: 0-700mA (peak 800mA)
• Output power: 3.5W
• Output range: 4.8-5.2V
• Ripple: 60mV
• Efficiency: >80%
• Operating temperature: -20 to +60°C
• Relative humidity: 40-90% RH
