3W AC-DC Converter 5V HLK-PM01 - 100-240VAC

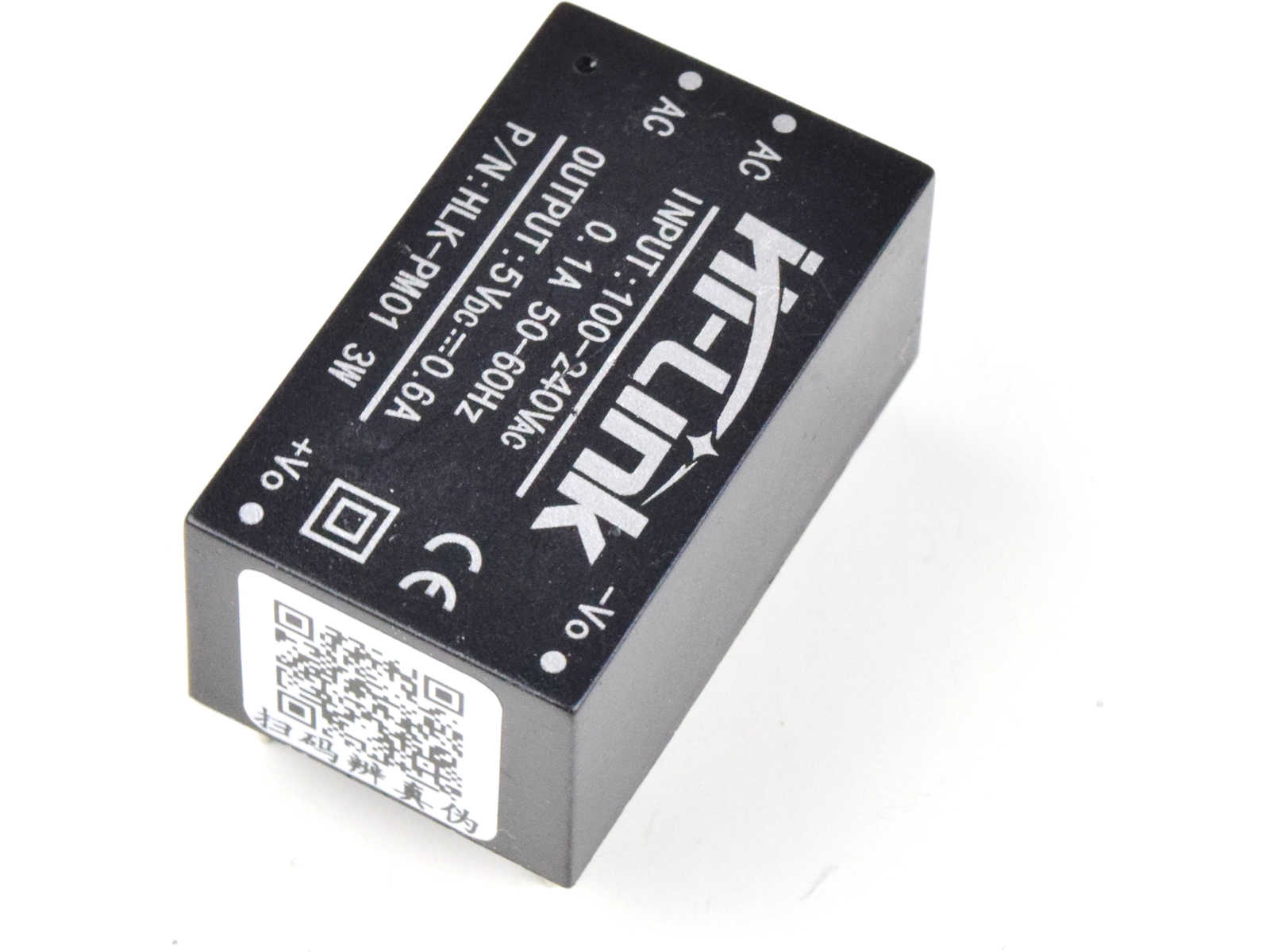

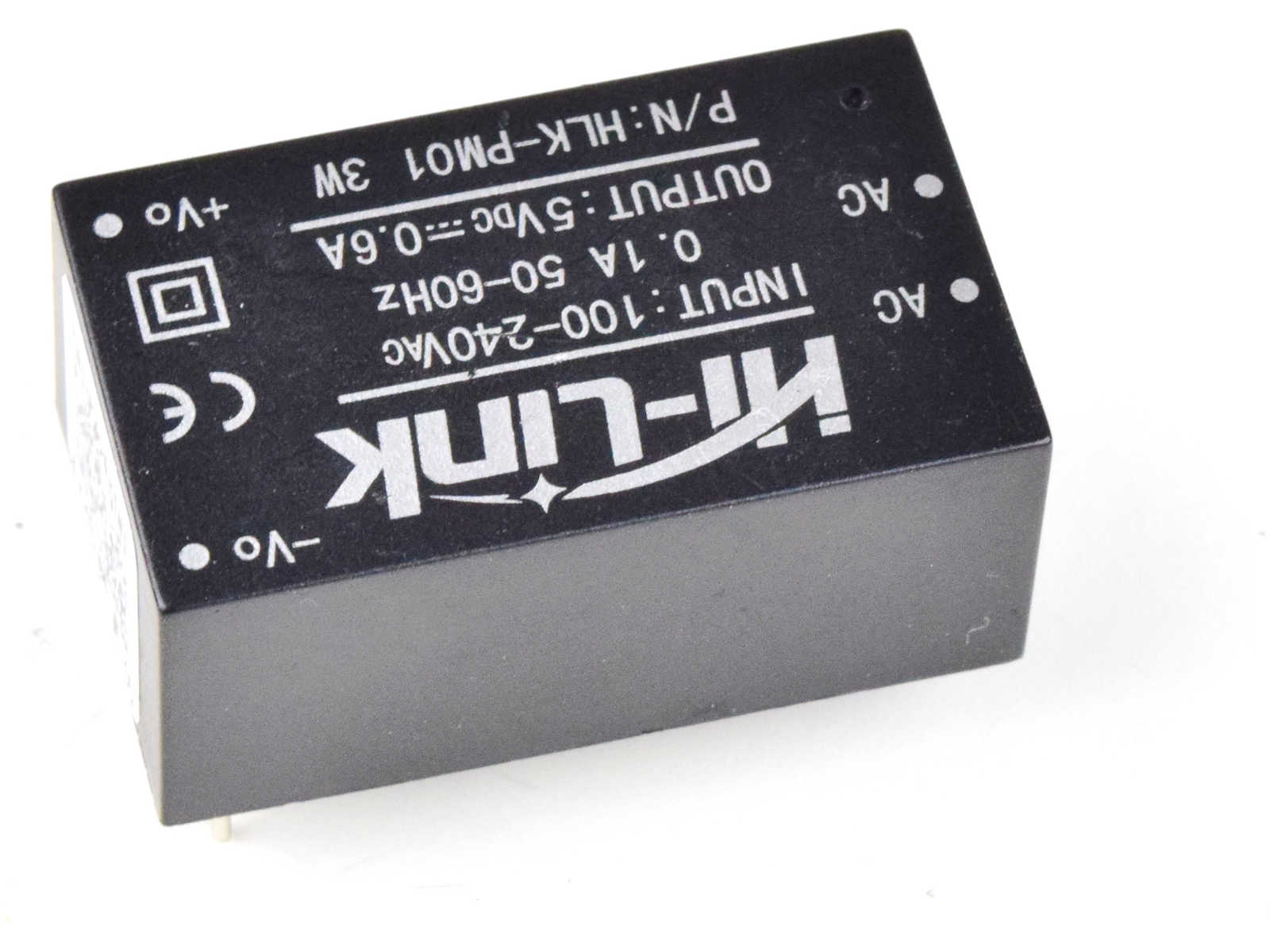

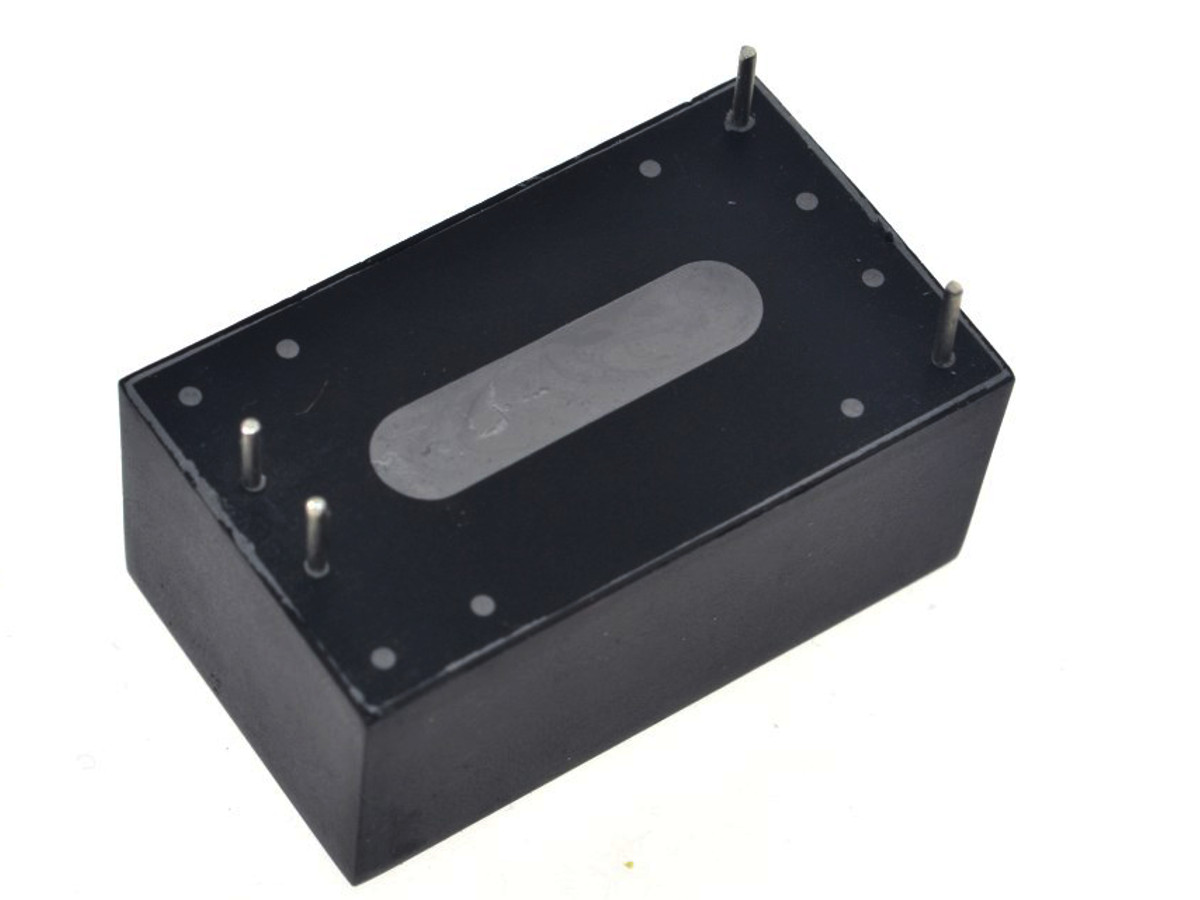

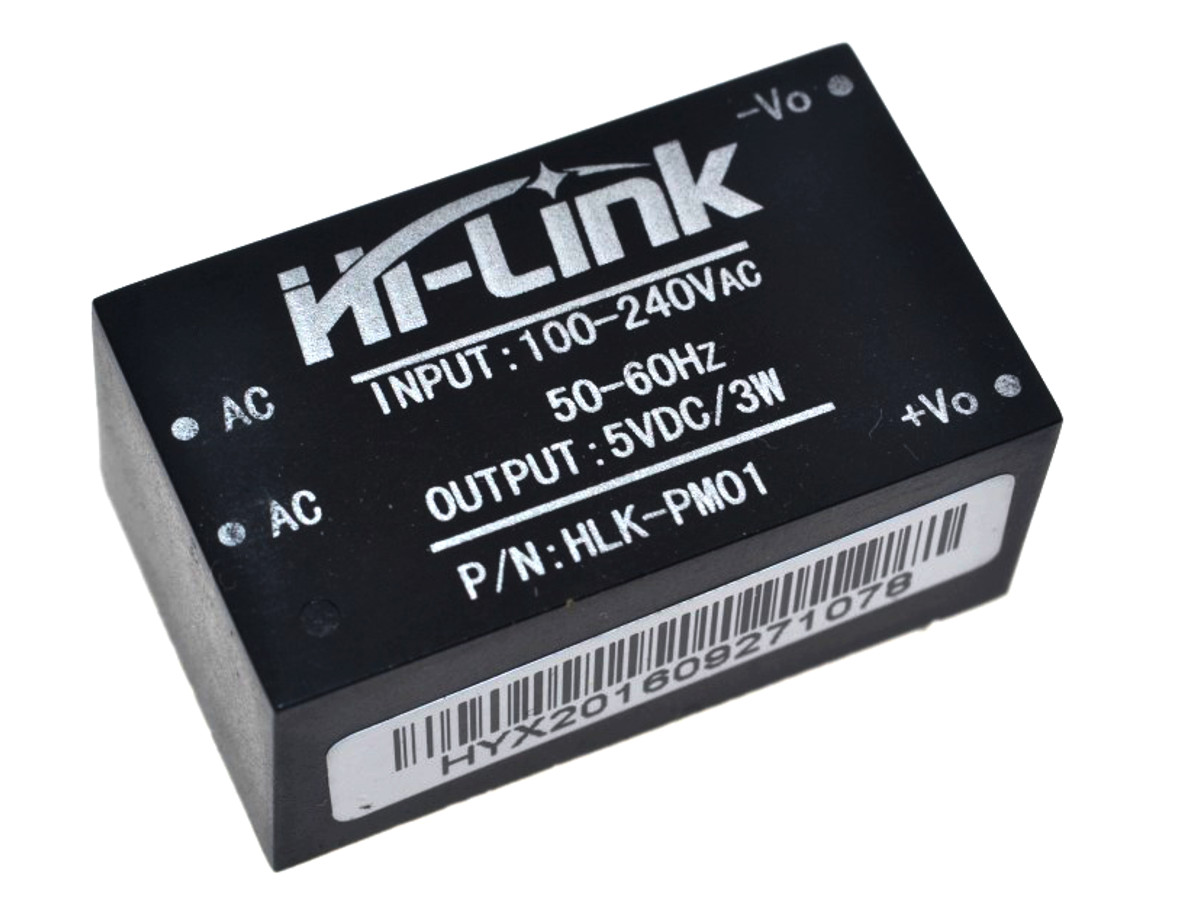

The AC-DC converter 5V HLK-PM01 from Hi-Link is a tiny, encapsulated and UL-certified AC-DC converter module for PCB assembling.

It works with international voltages from 90V to 264V AC (100-240 recommended).

Output voltage: 5V
Output current: max. 0.6A

The output voltage contains low ripple and low noise, no-load power consumption is less than 100mW, and the efficiency is about 70%.

This AC-DC converter module comes with short-circuit and overload (>150% of nominal current) protection.

Download the datasheet for the Hi-Link HLK-PM 3W module series
