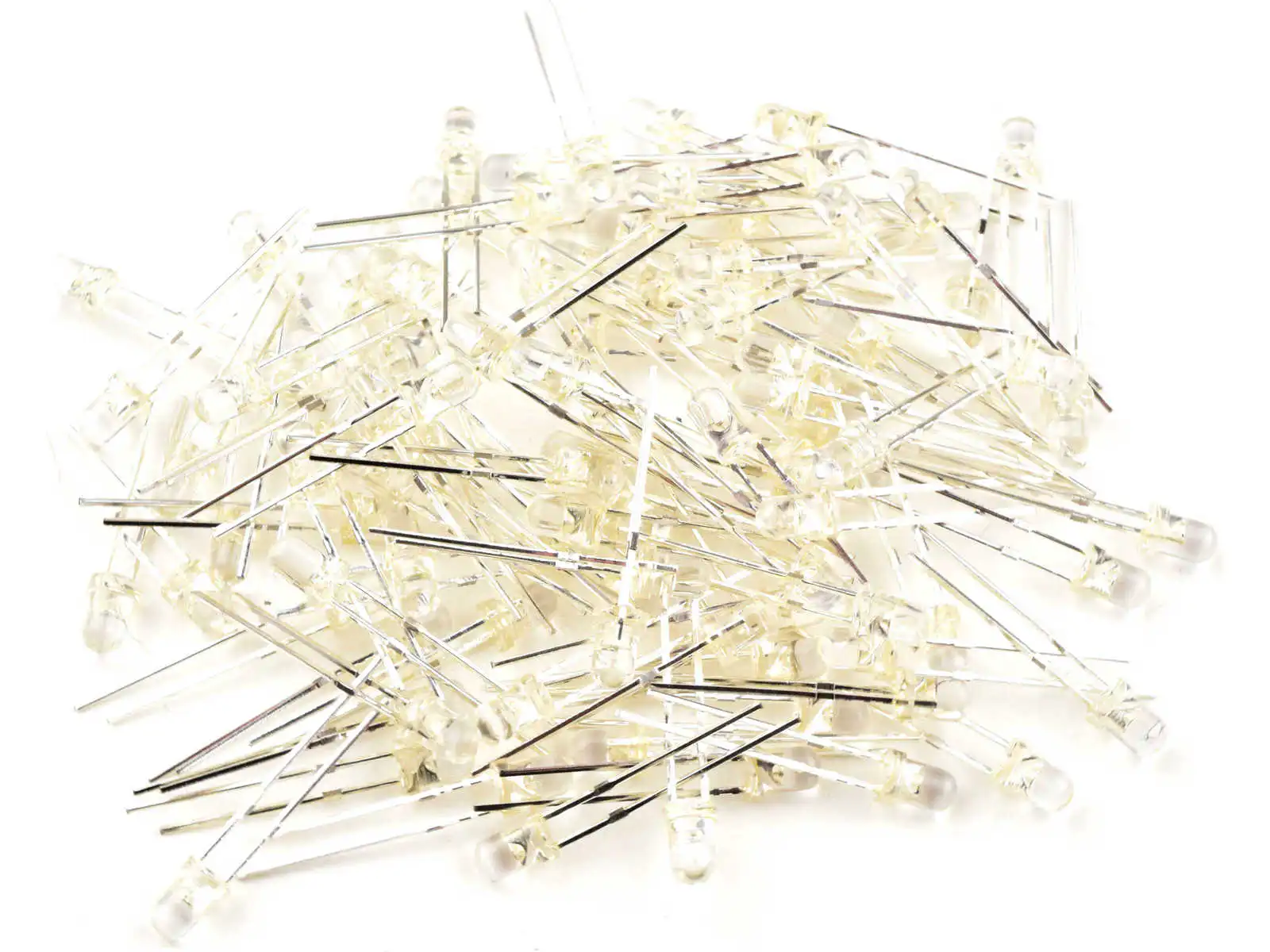

100 x LED White 3mm Round - Water Clear - Standard Package T-1

LED White 3mmtinted, clear LED in T-1 package.

The max. continuous current is 20mA, resulting in 3.5-3.6V forward voltage.

LED White 3mm are operated at constant current, not voltage! It is necessary, to limit the LEDs forward current with a resistor.

The value of the resistor is easy to calculate following Ohm's law: R = U / I. For example, on a 12V power supply, U = 12-3.5 = 8.5V, I = 0.02A. The resistor in this circuit should not be less than 8.5V / 0.02A = 425 Ohm (for max. brightness).

LEDs, operating on their current limit, are barely producing more visible brightness than when operated with a lower current, but they will have a much shorter life span. Therefore, we always set the LED current to about 1-5mA in our developments.
