AC-DC Converter 3.3V 1A – PCB Module 100-240V

Description

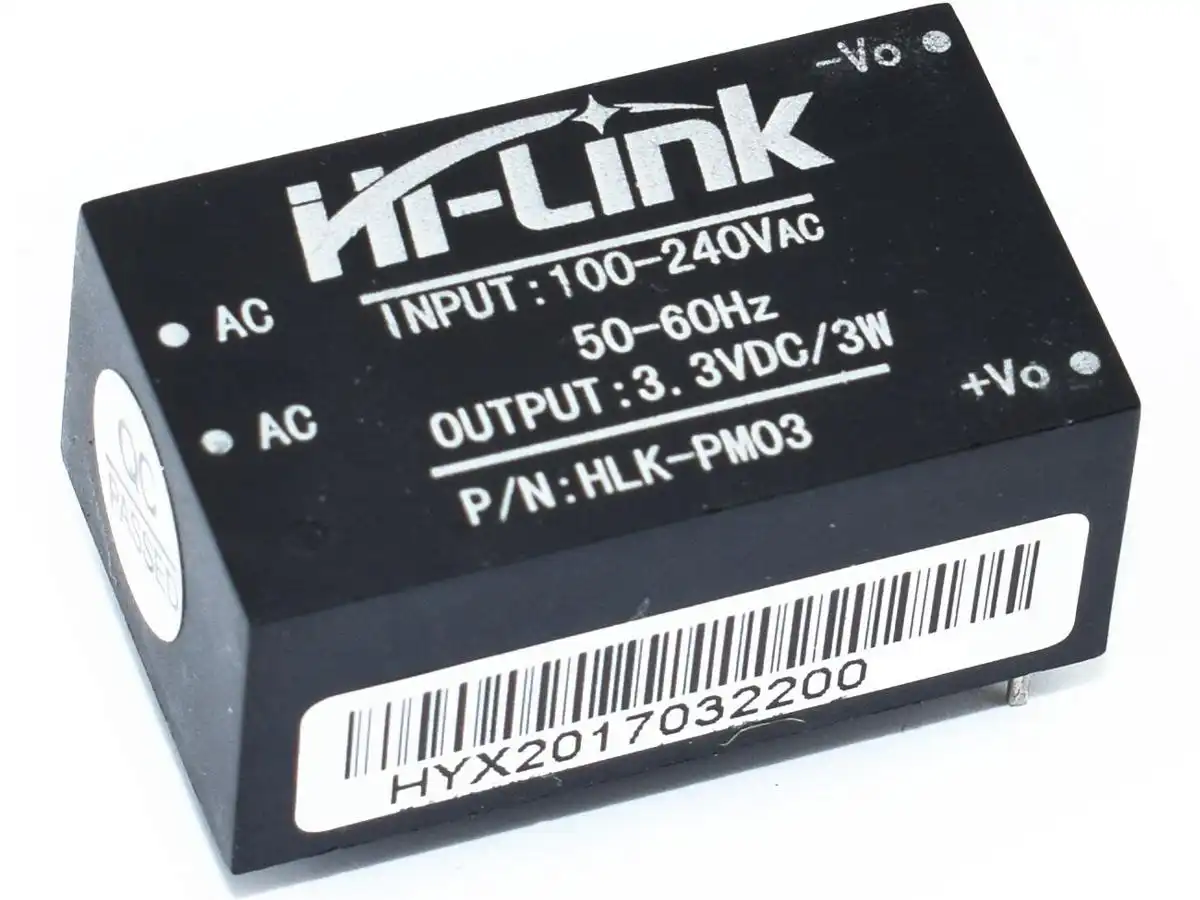

HLK-PM03 from Hi-Link is a tiny, encapsulated and UL-certified AC-DC Converter 3.3V module for PCB assembling.

It works with international voltages from 90V to 264V AC (100-240 recommended).

Output voltage: 3.3V
Output current: max. 1A

The output voltage contains low ripple and low noise, no-load power consumption is less than 100mW, and the efficiency is about 70%.

This AC-DC converter module comes with short circuit and overload (>150% of nominal current) protection.

Download the datasheet for the Hi-Link HLK-PM 3W module series
