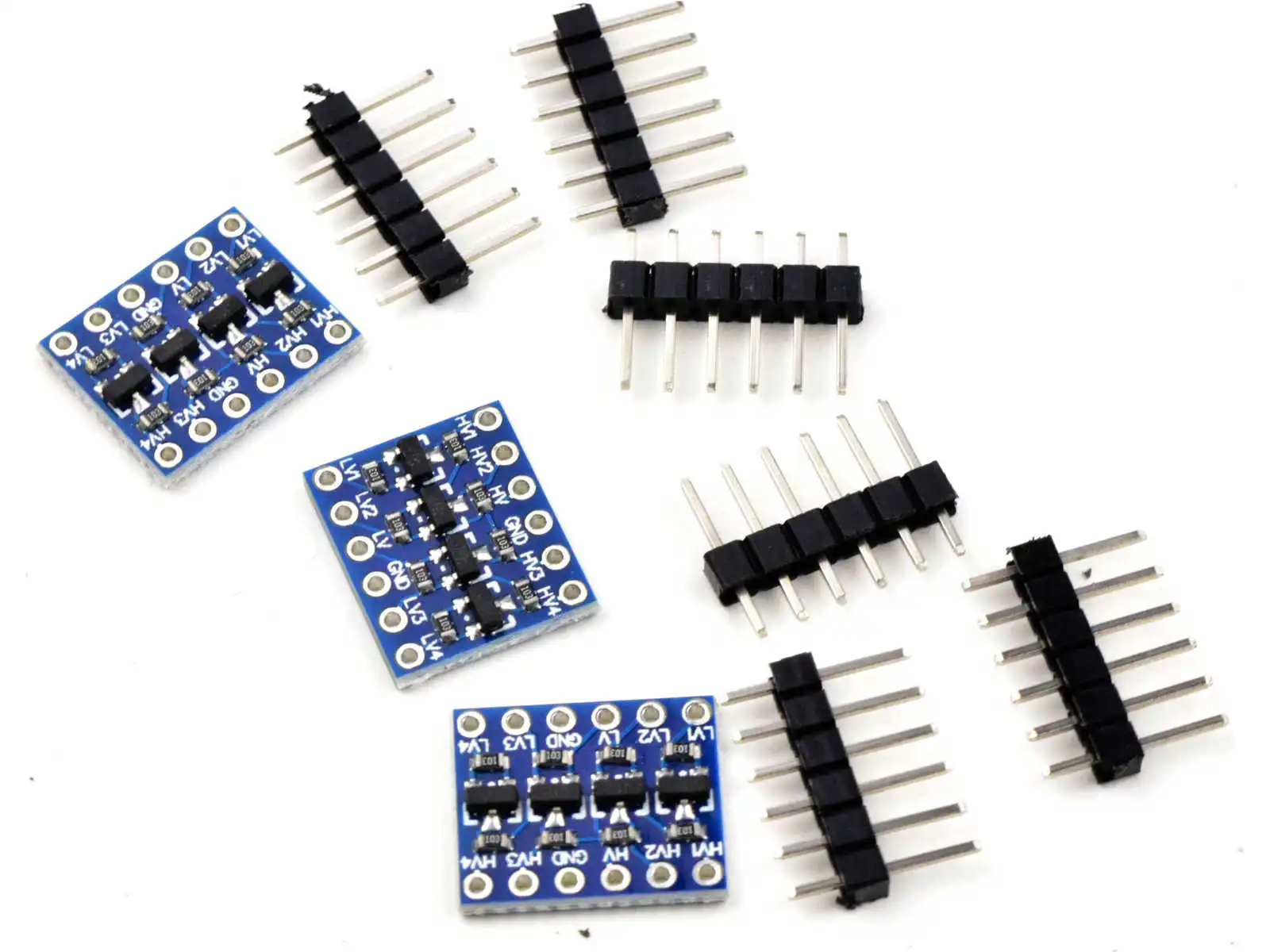

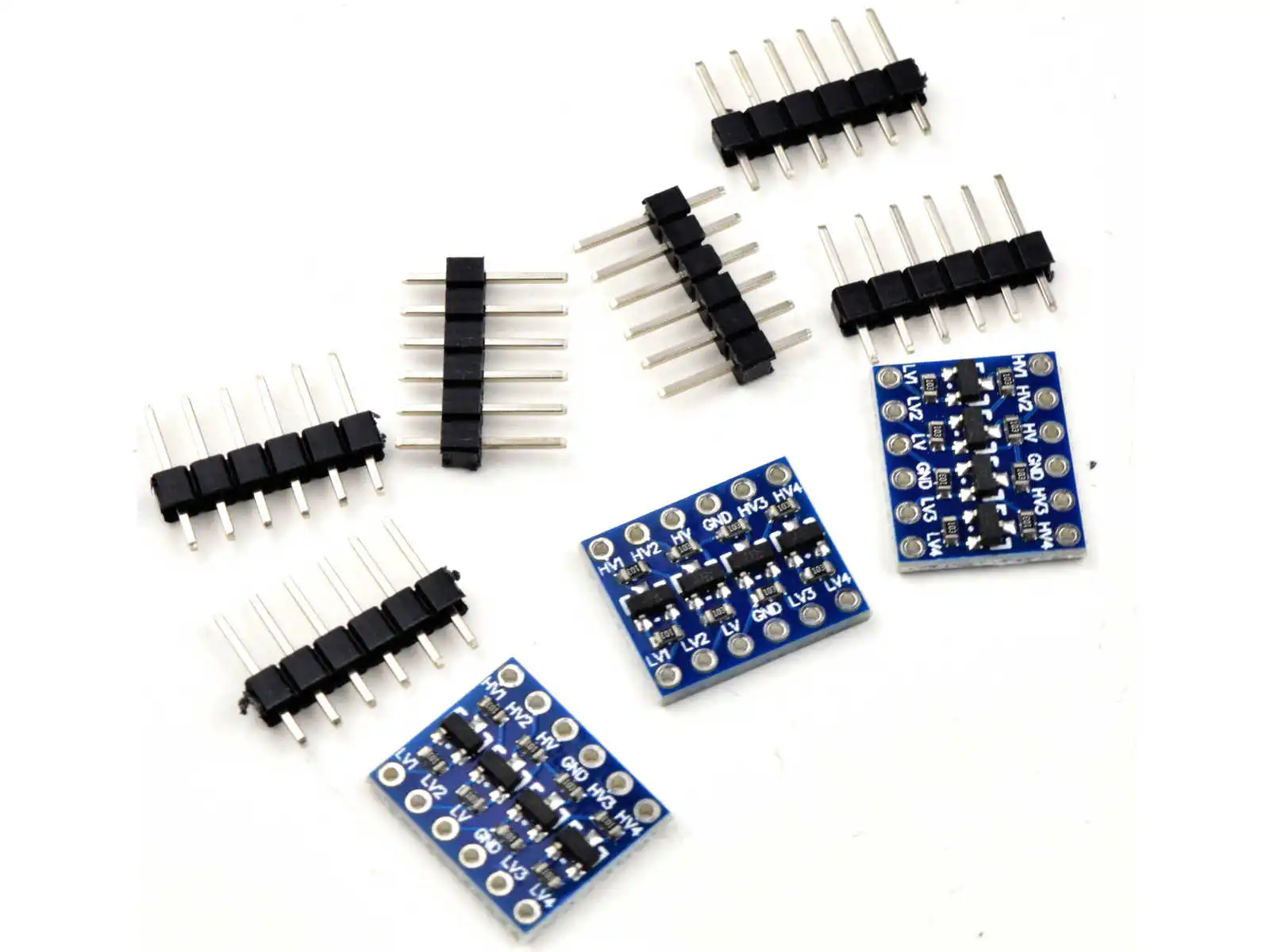

3 x Logic Level Converter 4-Channel 3.3V-5V Bi-Directional I2C ISP ICSP

CAD 2.90

Need more than we have? Order now, we will ship when back in stock. Lead time about 2-3 weeks.
See our backorder policy.
Availability: In stock (can be backordered) SKU: 26246
Quantity 3 - 9 CAD 2.61
Quantity 10 - 24 CAD 2.54
Quantity 25 + CAD 2.47

Description

If you want to connect 3.3V devices (sensors, memory cards etc.) to a 5V microcontroller, or the other way around, you will most likely need a level converter. Not many microcontrollers, running on a 3.3V power supply, can accept 5V signals on their inputs and outputs, without damage.

This tiny board works with max. data transfer rates of 28.8 kBaud, and it operates in both directions the same way (bi-directional).

  • power supply 5V and 3.3V required
  • 4 bi-directional signal lines
  • 3.3V to 5V and 5V to 3.3V
  • reliable data rate about 30k bps max.

Typical applications are for UART interfaces, 1-wire interfaces, I2C and SPI interfaces, Atmel ICSP interfaces etc.

Additional information

Weight 0.01 kg
Dimensions 20 × 20 × 10 mm
Brand

CANADUINO

Manufacturer

UNIVERSAL-SOLDER Electronics

EAN

4260474032464
