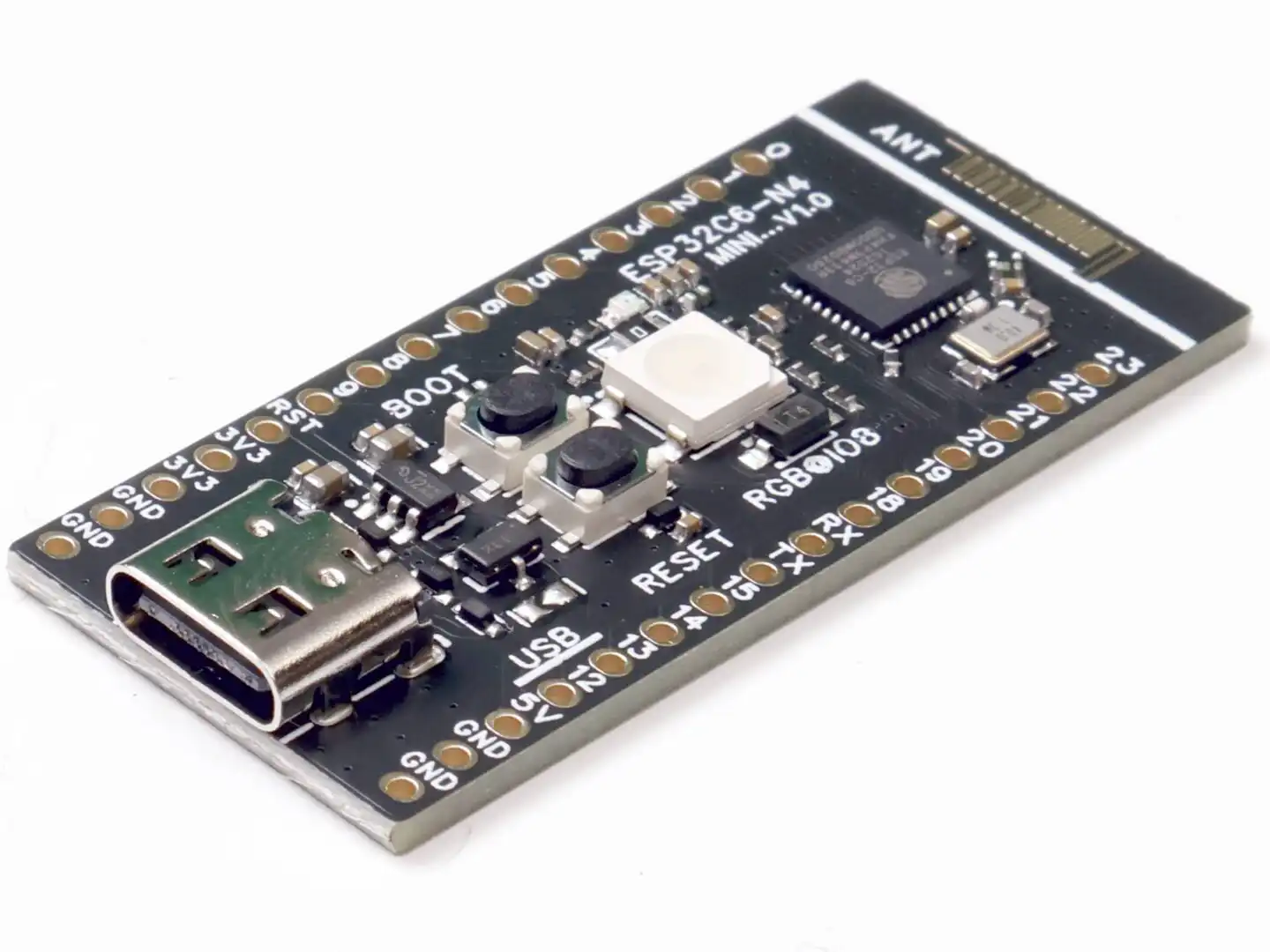

WeAct ESP32-C6-MINI WiFi Bluetooth Mesh Board - 4MB

Experience next-generation IoT performance with the ESP32-C6-N4 development module, powered by the RISC-V processor and featuring integrated 4MB flash memory. This cutting-edge module offers WiFi 6, Bluetooth 5.0 (LE), and 802.15.4 protocols, ensuring seamless and efficient connectivity for modern IoT and smart home applications. Designed for advanced security, low power consumption, and versatile connectivity, the ESP32-C6-N4 is perfect for developers seeking a robust platform for IoT and wireless mesh networking projects.

1. Processor:
   • Single-core 32-bit RISC-V CPU
   • Up to 160 MHz clock speed
2. Memory:
   • 4MB embedded flash memory
   • 512KB SRAM
3. Connectivity:
   • WiFi 6 (802.11ax, 2.4 GHz)
   • Bluetooth 5.0 (LE) with extended advertising
   • 802.15.4 support for Zigbee and Thread
4. I/O Capabilities:
   • GPIO pins: 22
   • SPI, I2C, I2S, UART, PWM, ADC
   • USB interface for development and debugging
5. Security:
   • Secure boot
   • Flash encryption
   • Hardware-accelerated cryptography (AES, SHA, RSA, ECC)
6. Power Management:
   • Optimized for ultra-low power consumption
   • Deep sleep current: ~5 μA
   • Operating voltage: 3.3V/5V
   • Logic level: 3.3V
7. Advanced Features:
   • WiFi 6 enhancements: Target Wake Time (TWT) for power-saving
   • Multi-protocol coexistence for simultaneous use of WiFi, Bluetooth, and Zigbee/Thread
   • Mesh networking support
8. Development Support:
   • Compatible with ESP-IDF and Arduino
   • Rich development tools and SDKs available
9. Physical Dimensions:
   • Compact form factor for versatile applications
   • Fits our Universal Screw Terminal Adapter (SKU 26162)

This module is ideal for advanced IoT devices, home automation, wireless sensor networks, and edge computing applications!
