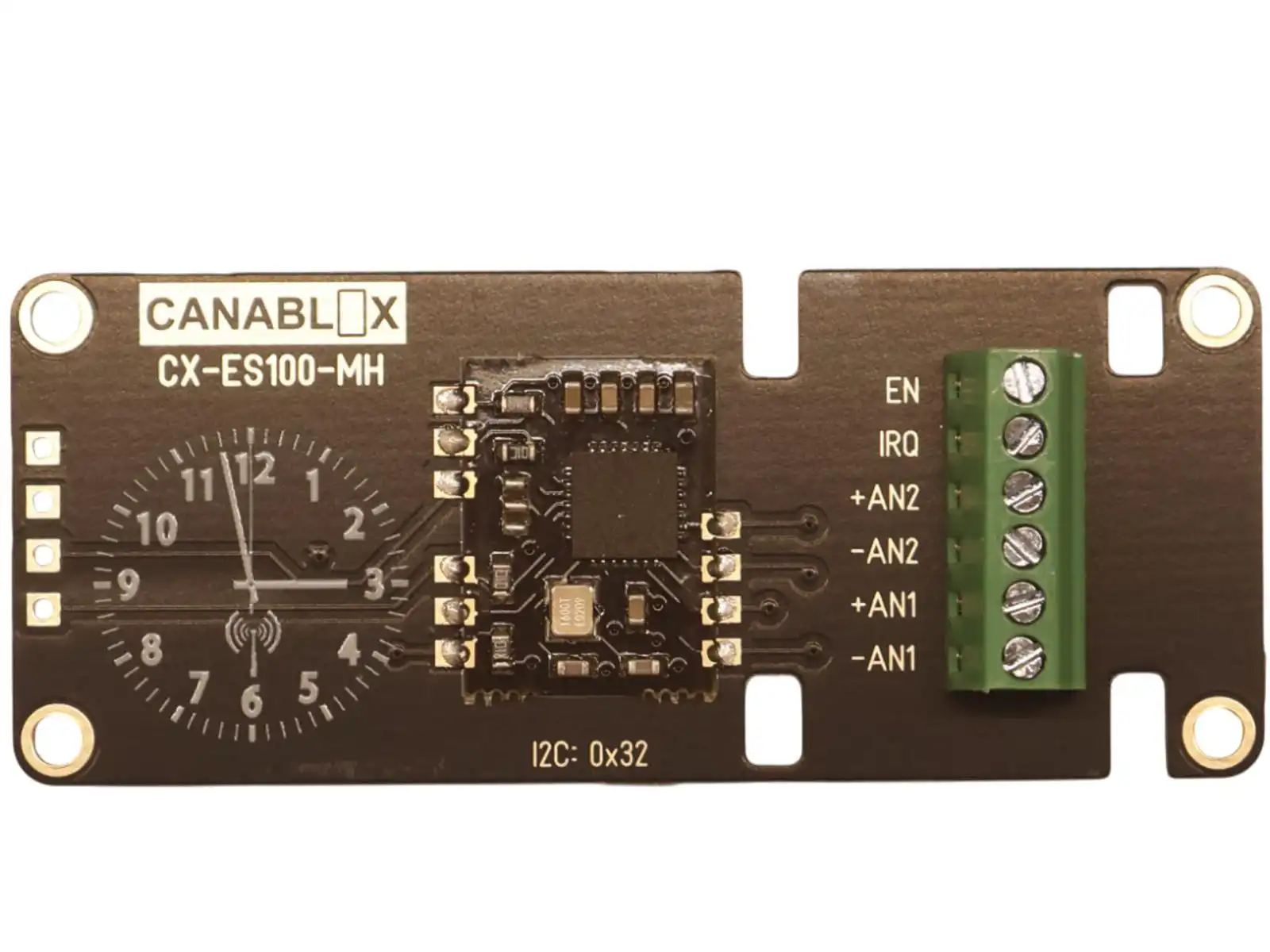

CANABLOX® WWVB-BPSK Atomic Clock Receiver ES100 I2C (CX-ES100-MH)

The CANABLOX® WWVB-BPSK Atomic Clock Receiver CX-ES100-MH is based on the CANADUINO® ES100-MOD receiver module. It contains a dual-antenna receiver for the 60kHz BPSK Atomic Clock signal from NIST in Boulder, Colorado. The kit includes one fine-tuned 60kHz ferrite antenna (60mm long). A second antenna can be connected to use the antenna auto-select feature. For more details and datasheets, please see our other Everset ES100 products.

Fixed I2C address: 0x32

Code example:
Code example: coming soon.

PDF Datasheet:
See our CANADUINO® ES100 products for descriptions and datasheets

This is in the bag:
1 x CANABLOX® module
1 x ES100-MOD receiver SoC

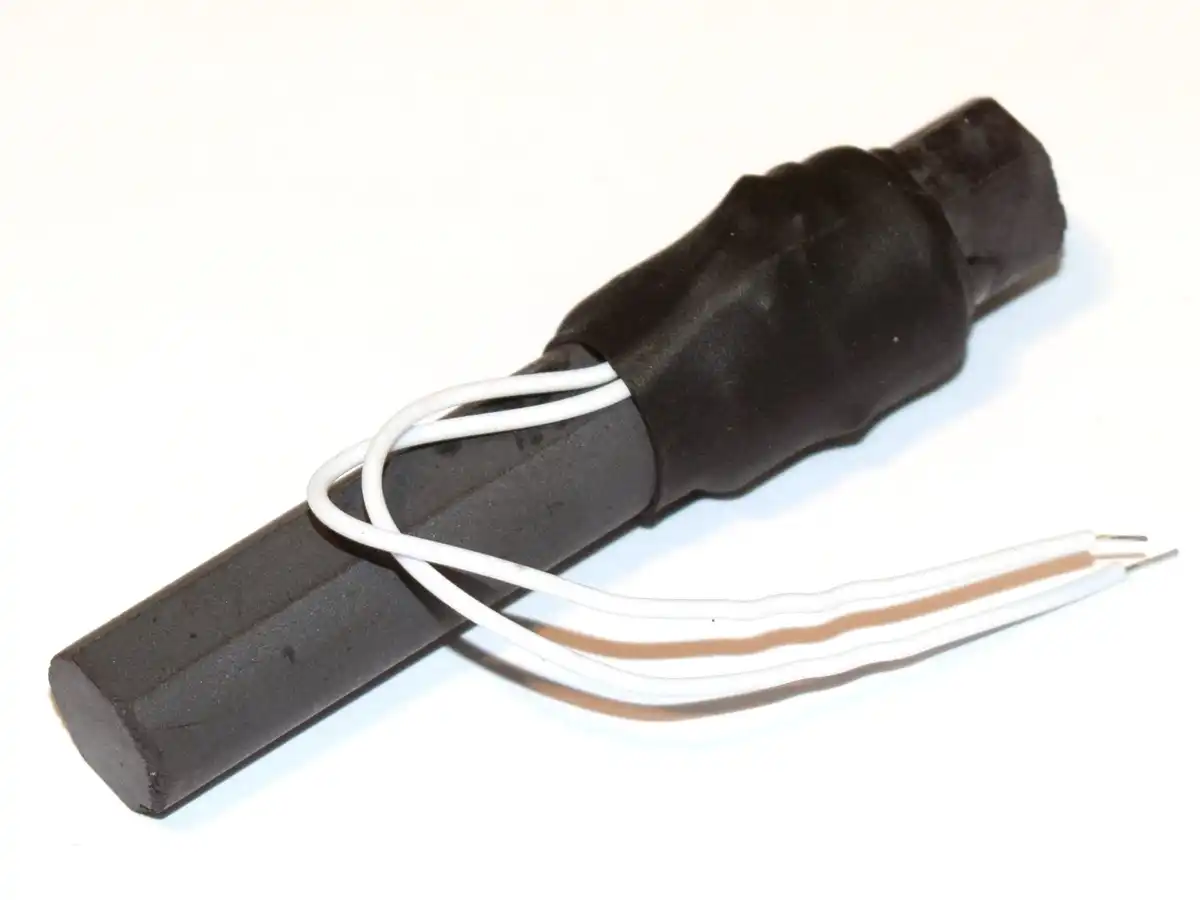

1 x antenna stick 60kHz
1 x male pin header 4-pin
1 x screw terminal 6-pin
1 x CANABLOX® I2C Cable 10cm

Note:
Through-Hole (TH) connectors, like the I2C pin header or screw terminals, are included but not factory assembled.

The CANABLOX® ecosystem

CANABLOX® is a modular, clean, stackable ecosystem that replaces the chaos of traditional prototyping with I2C-connected building blocks.

CANABLOX® is not just a hobby tool; it’s a stepping stone from prototype to finished product. With over 60 modules envisioned, from environmental sensors to serial bridges and audio applications, CANABLOX® becomes a platform, not just a product.

Every CANABLOX® module connects directly to a sturdy baseplate or standardized cables, letting you build solid, real-world systems - without the clutter.

All modules use standardized CANABLOX® slot sizes and can be connected either through 4-pin JST-SH cables (compatible with Qwiic and Stemma QT) or by direct mounting onto the baseplate with headers. Every baseplate includes I2C headers (not assembled) and mounting hardware.

Baseplate sizes:

Layout examples:
