ICL8038 Signal Generator DIY Soldering Kit

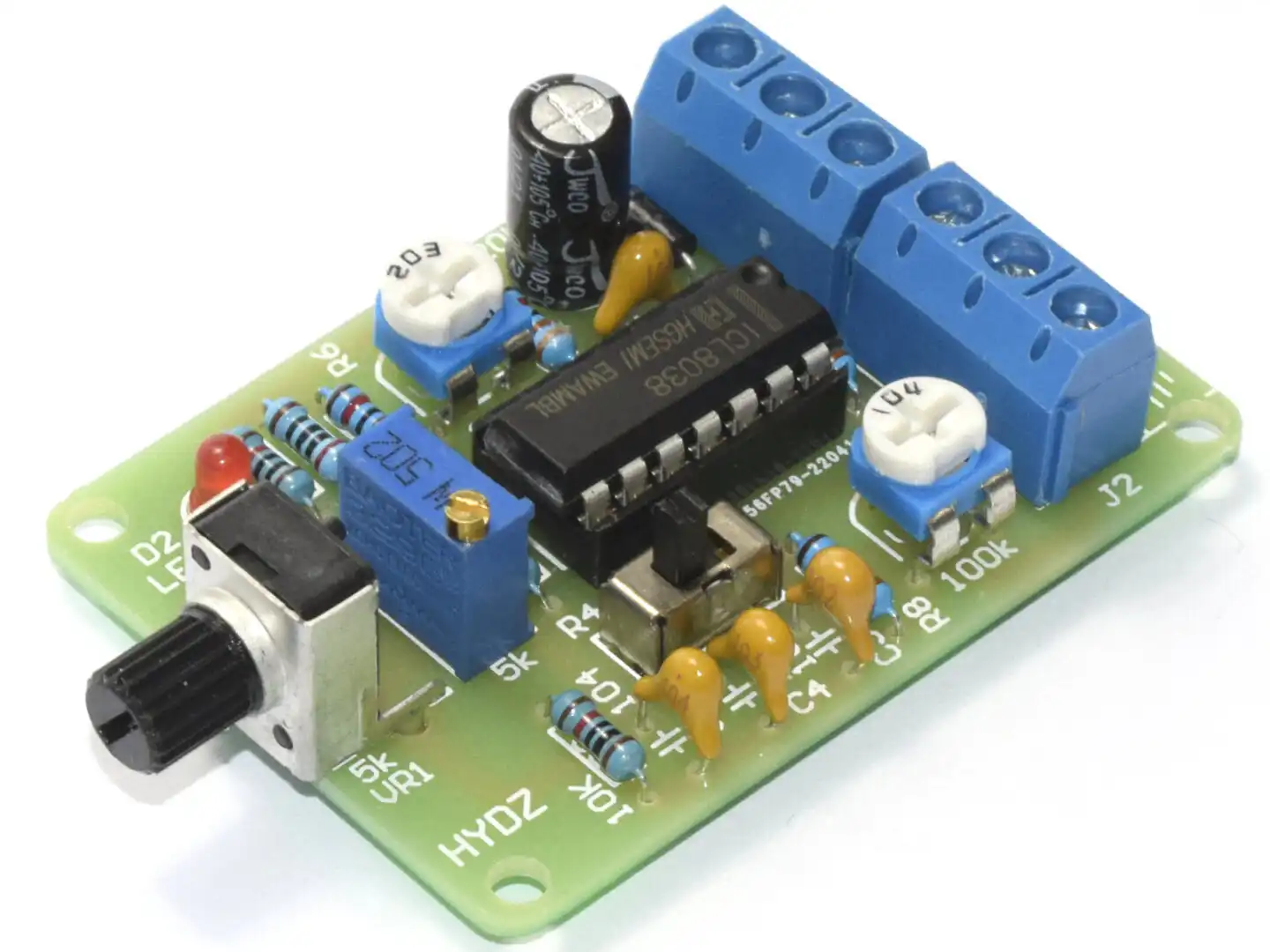

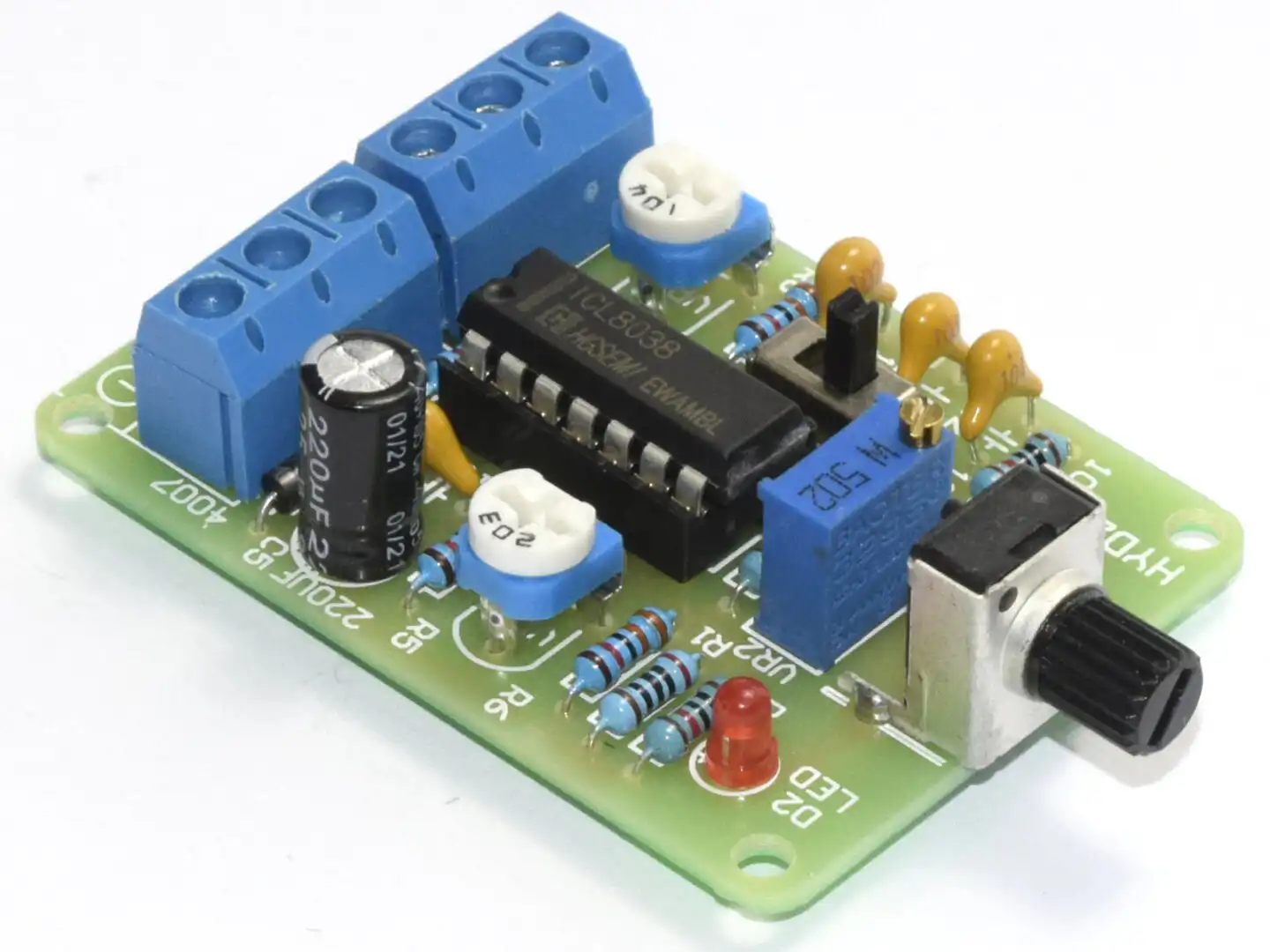

The ICL8038 Signal Generator DIY Soldering Kit is a small circuit board with the legendary, discontinued ICL8038 Monolithic Function Signal Generator IC. The module generates an output frequency of 50Hz to 7kHz as a sine wave, square wave and triangle wave.

The output frequency range can be selected by a switch and adjusted by a potentiometer and a smaller trimmer potentiometer on the PCB. By replacing the capacitor value on pin 10, the frequency range can be changed within the limits of about 0.001Hz to 300kHz.

Operating voltage: 10-30V (recommended 12V)

This is a DIY soldering kit that needs assembling.
