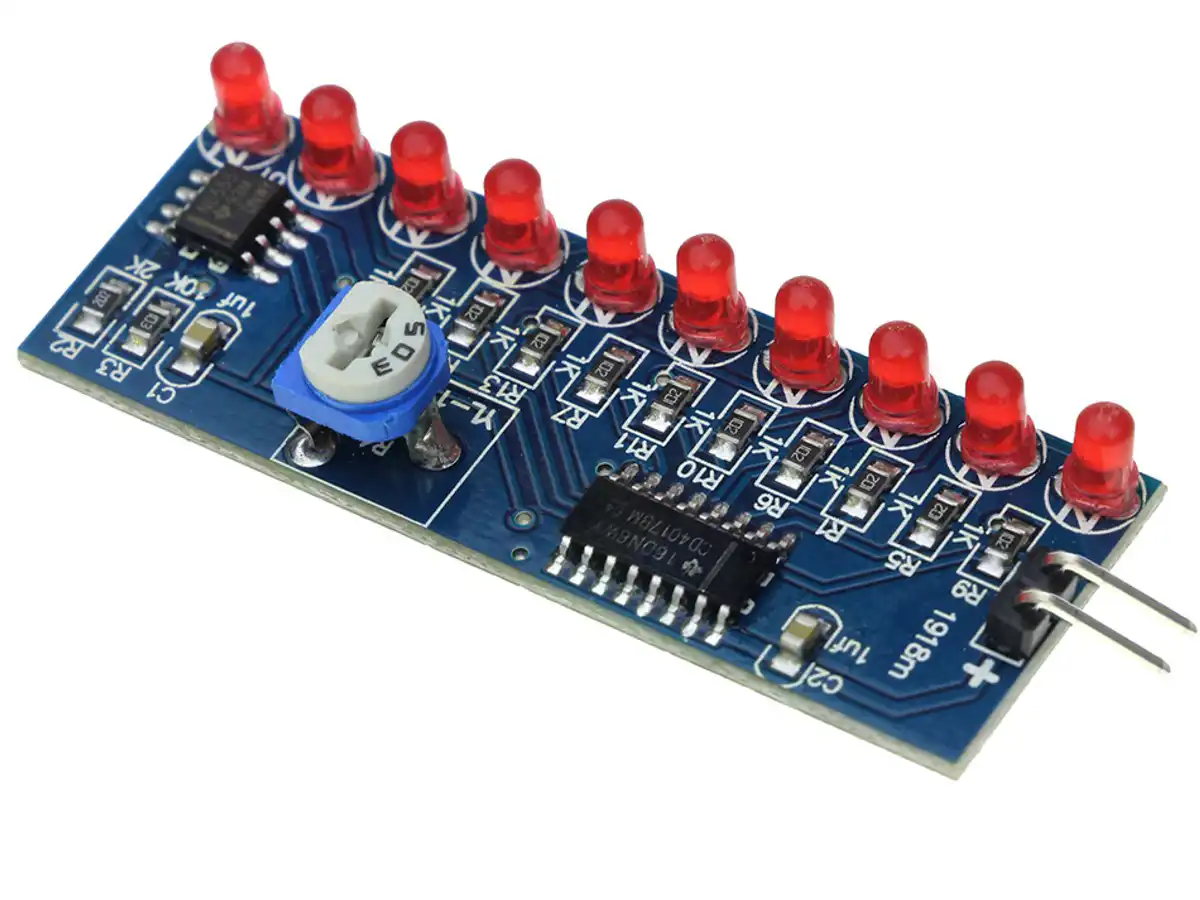

Chaser Light DIY Solder Learning Kit NE555 CD4017

Overview

The chaser light DIY soldering kit uses standard digital logic and timing ICs (NE555 timer and CD4017 decade counter) to generate sequential lighting effects. The kit is intended for soldering practice, learning through construction, and demonstration of basic digital timing and sequencing principles. Once assembled, the chaser light provides a visually engaging sequential LED pattern typically used for learning, decor, indicators, and hobby electronics projects.

The circuit uses a timed oscillator to drive a decade counter, which in turn steps through a series of outputs to produce the “chaser” effect across the connected LEDs. Kit assembly reinforces soldering skills and provides hands-on experience with through-hole components.

Key Features

• chaser light DIY soldering learning kit
• Uses NE555 timer to generate adjustable clock pulses
• CD4017 decade counter provides sequential output driving
• Multiple LEDs arranged for sequential lighting effect
• Through-hole components for soldering practice
• Educational electronics kit suitable for beginners and hobbyists
• Compact PCB footprint for small project spaces
• Component layout labeled for guided assembly

Electrical and Usage Notes

• The NE555 timer generates a square-wave clock signal to drive the CD4017 counter
• The sequence of LED illumination is determined by the counter outputs
• Power supply requirements must match the voltage rating of LEDs and ICs
• Proper orientation of polarized components (LEDs, electrolytic capacitors) is required during assembly
• Solder all components with correct polarity and secure solder joins for reliable operation
• The assembled circuit is not intended as a high-power lighting device; LEDs are limited in current and brightness by design

Typical Applications

• Electronics soldering practice and skill development
• Learning digital timing and sequencing principles
• Educational demonstrations in labs and workshops
• Visual indicators in hobby projects
• Basic decorative lighting effects
