CANABLOX® 4 x 16 Characters LCD Module I2C (CX-LCD164-L)

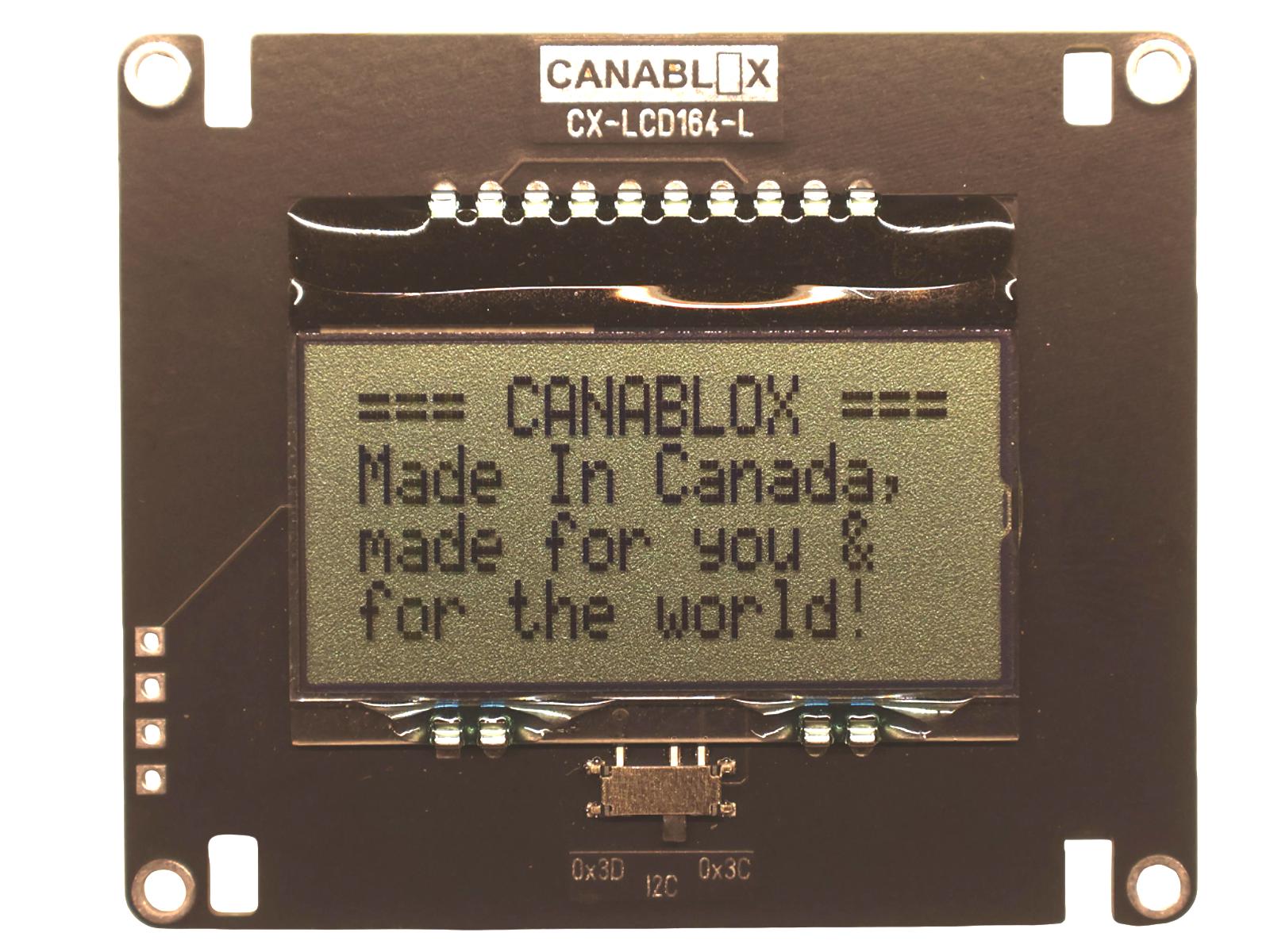

The CANABLOX® 4x16 Characters LCD Module CX-LCD164-L with integrated SSD1803A controller provides 4 lines with 16 characters or 2 lines of 16 characters with double height. This reflective black-on-white FSTN display is optimized for sunlight readability and requires no backlight. It also comes with 8 user-definable characters and 3 built-in ROM character sets for European, Cyrillic, and English/Japanese. The module is available in "L" form factor (2x2 Slots).

Selectable I2C address: 0x3C, 0x3D

Code example:
Download a demo sketch (tested with XIAO ESP32C6) that shows a scrolling text on the display.

>>> Find the documentation in the comments inside the demo code. <<<

PDF Datasheet:
Download SSD1803A PDF Datasheet

This is in the bag:
1 x CANABLOX® module
1 x male pin header 4-pin
1 x CANABLOX® I2C Cable 10cm

Note:
Through-Hole (TH) connectors, like the I2C pin header or screw terminals, are included but not factory assembled.
