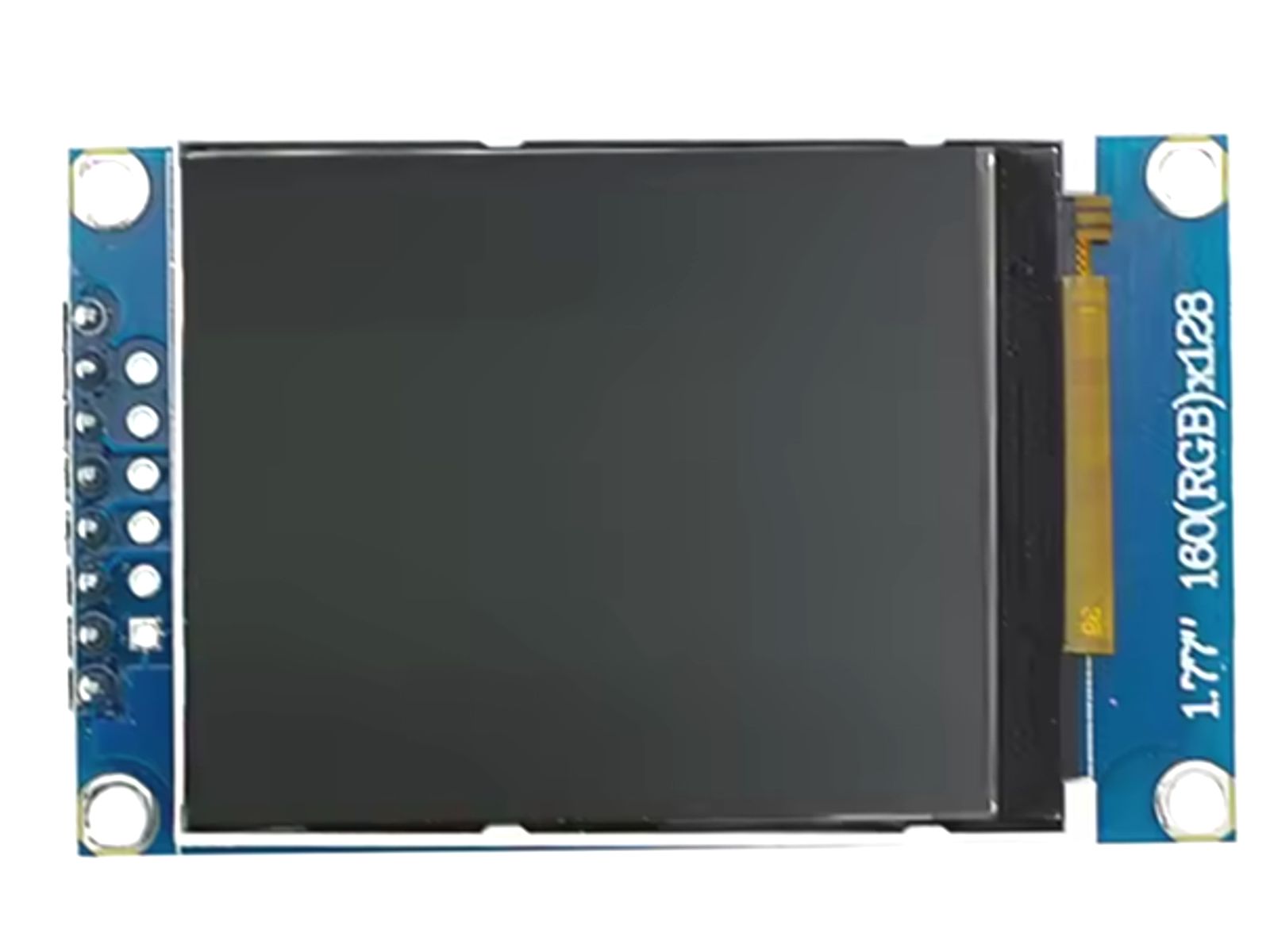

1.77 inch Display TFT IPS with ST7735 - 128x160 pixel - SPI

Product Description:

This 1.77-inch TFT LCD display module offers a compact and vibrant solution for visual output in embedded systems and DIY electronics projects. Featuring a resolution of 128x160 pixels and driven by the ST7735S controller, it delivers clear and colorful images suitable for various applications.

Key Features:

• Display Size: 1.77 inches (diagonal)
• Resolution: 128 x 160 pixels
• Color Depth: 262K colors (18-bit)
• Controller IC: ST7735S
• Interface: SPI (Serial Peripheral Interface)
• Operating Voltage: 3.3V (logic and backlight)
• Viewing Direction: 12 o'clock
• Brightness: Approximately 500 cd/m²
• Contrast Ratio: 500:1
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -30°C to +80°C

Physical Dimensions:

• Module Dimensions: 34.0 mm (W) x 45.83 mm (H) x 2.65 mm (D)
• Active Display Area: 28.03 mm x 35.04 mm

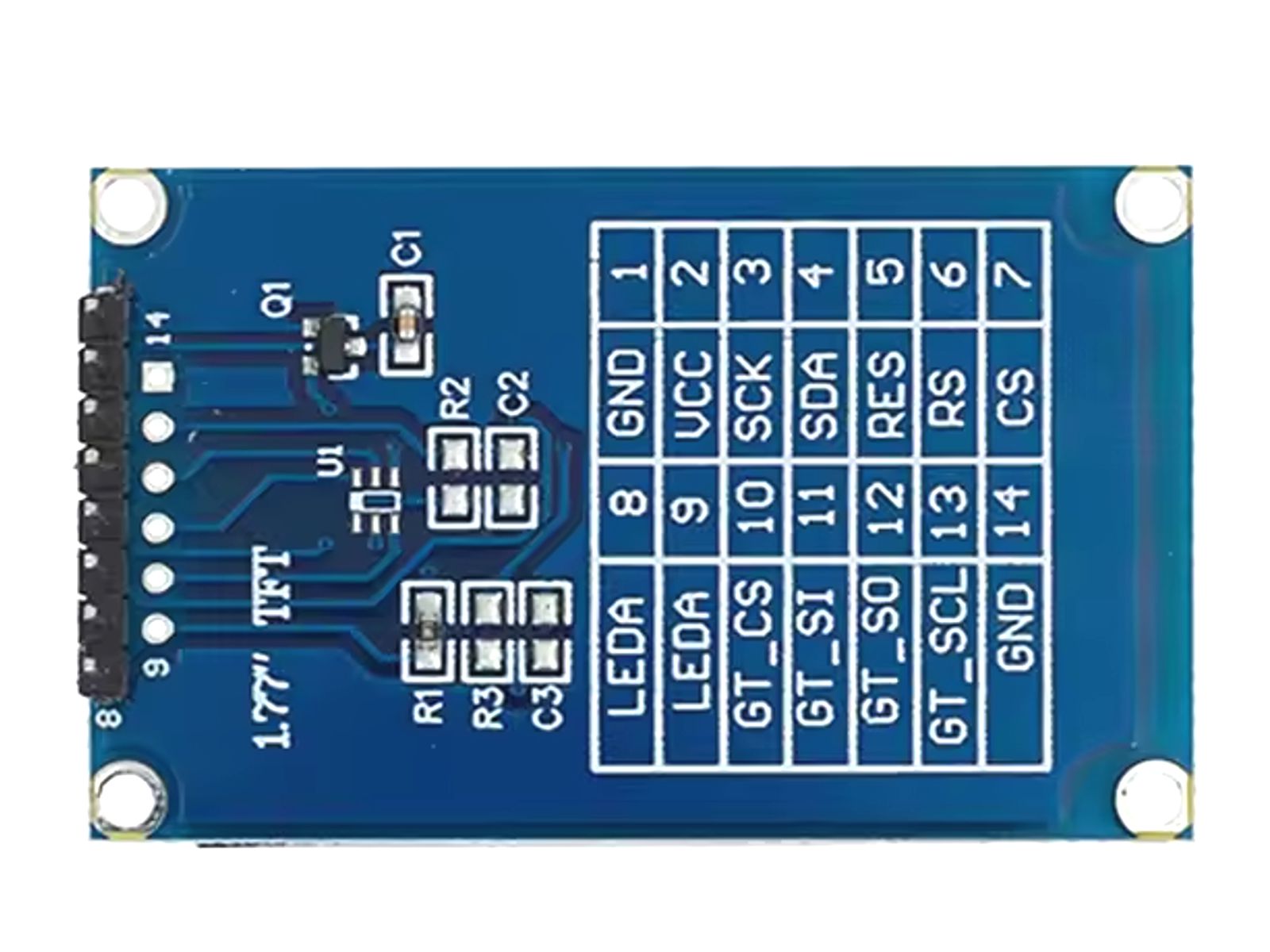

Pin Configuration:

1. GND: Ground
2. VCC: Power supply (3.3V)
3. SCL: SPI clock input
4. SDA: SPI data input
5. RES: Reset
6. DC: Data/Command selection
7. CS: Chip select
8. BL: Backlight control

Applications:

• Portable devices
• Embedded systems
• Consumer electronics
• DIY electronics projects
• Industrial control panels

Usage Notes:

• Ensure that the supply voltage does not exceed 3.3V to prevent damage to the module.
• Utilize appropriate level shifters if interfacing with 5V logic systems.
• The module does not include a touch panel; touch functionality would require additional components.
