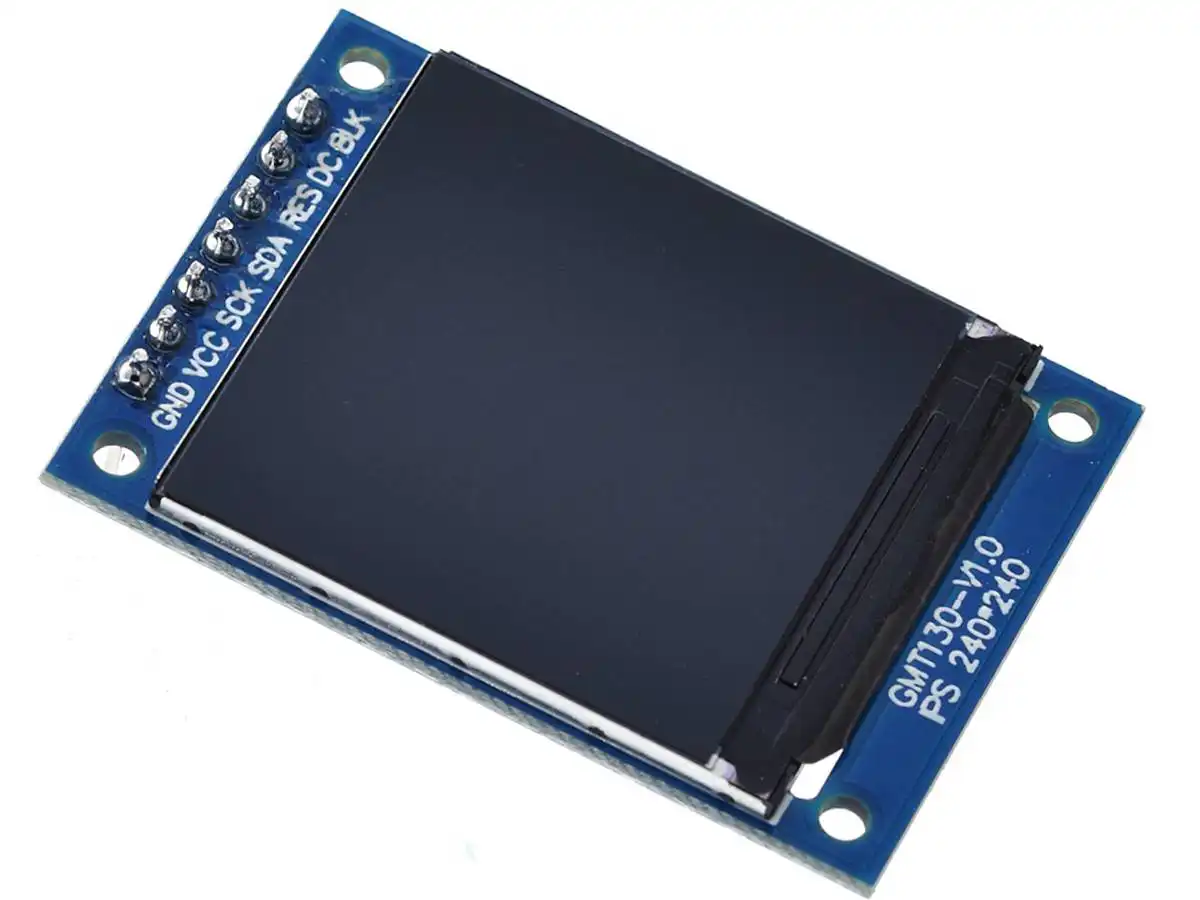

1.3 inch Display TFT IPS with ST7789 - 240x240 pixel - SPI

C$7.90

Availability: In stock (can be backordered)

2 - 9 C$7.51
10 - 24 C$7.11
25 + C$6.72
- +
GTIN: 4260474034697 SKU: 26469 Categories: , Tags: , ,

1.3 inch Display with IPS Panel and 65k colours connects through its SPI interface with your microcontroller.

The ST7789 TFT display controller requires 3.3V power supply and logic level.

The backlight control pin BLK is low-active.

Please note: The 1.3 inch Display TFT module doesn't have a Chip-Select pin.

  • Module dimension: 28 x 39mm
  • Screen dimension: 23 x 23mm
  • Mounting holes: 2mm

Like always, libraries for ST7789 TFT (for example for Arduino) are available on GitHub.
