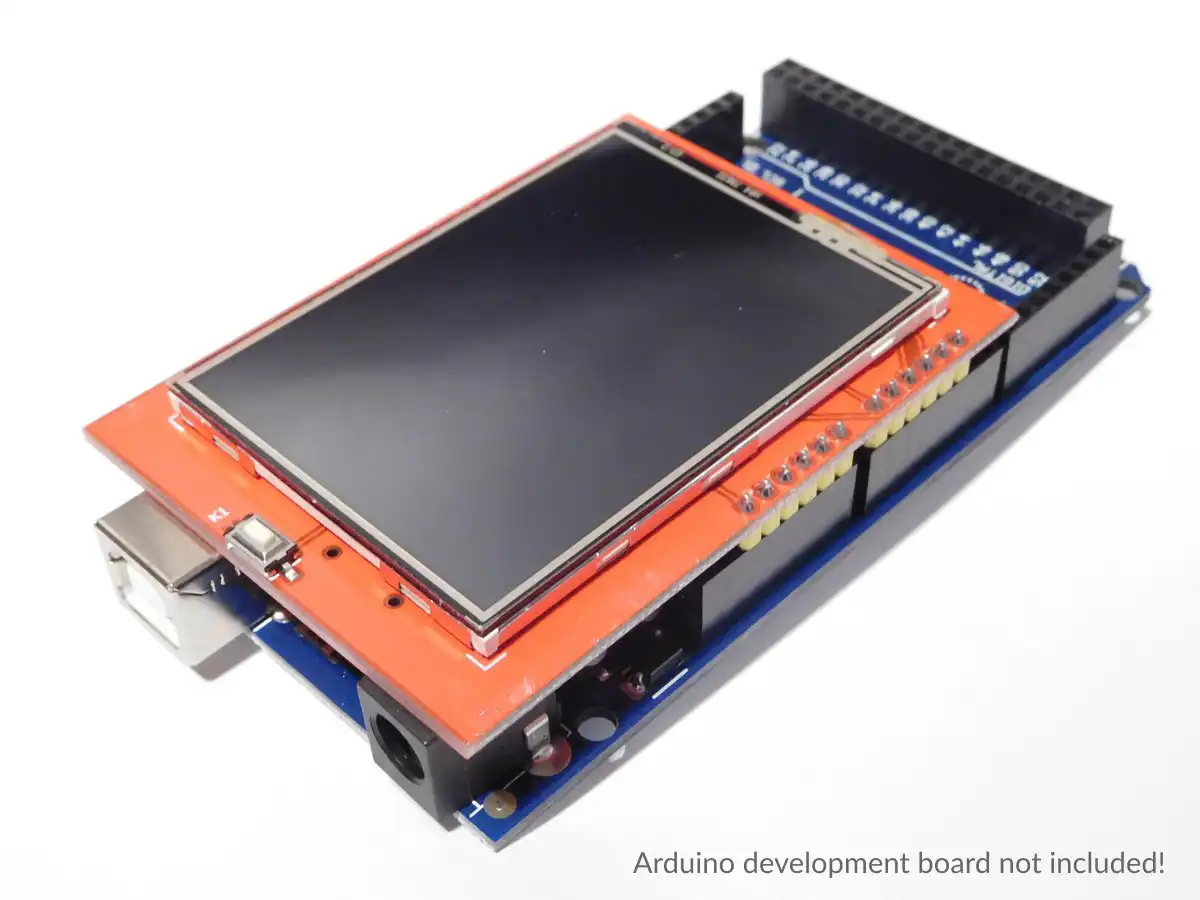

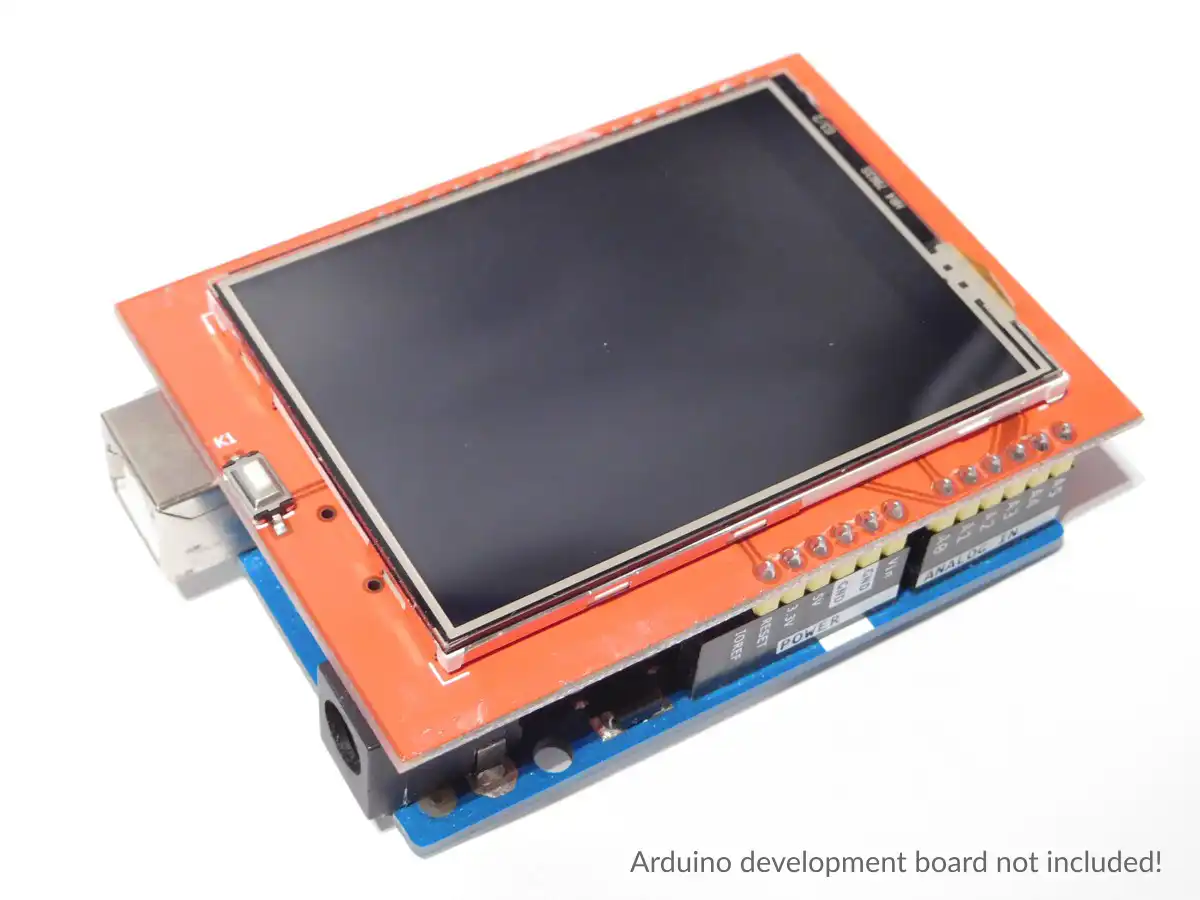

Enhance your Arduino experience with the 2.4 TFT Touch Display for Arduino UNO, MEGA2560, and other similar boards. This display stands out with its vibrant 240x320 pixel resolution, bringing your projects to life with rich, colorful graphics.

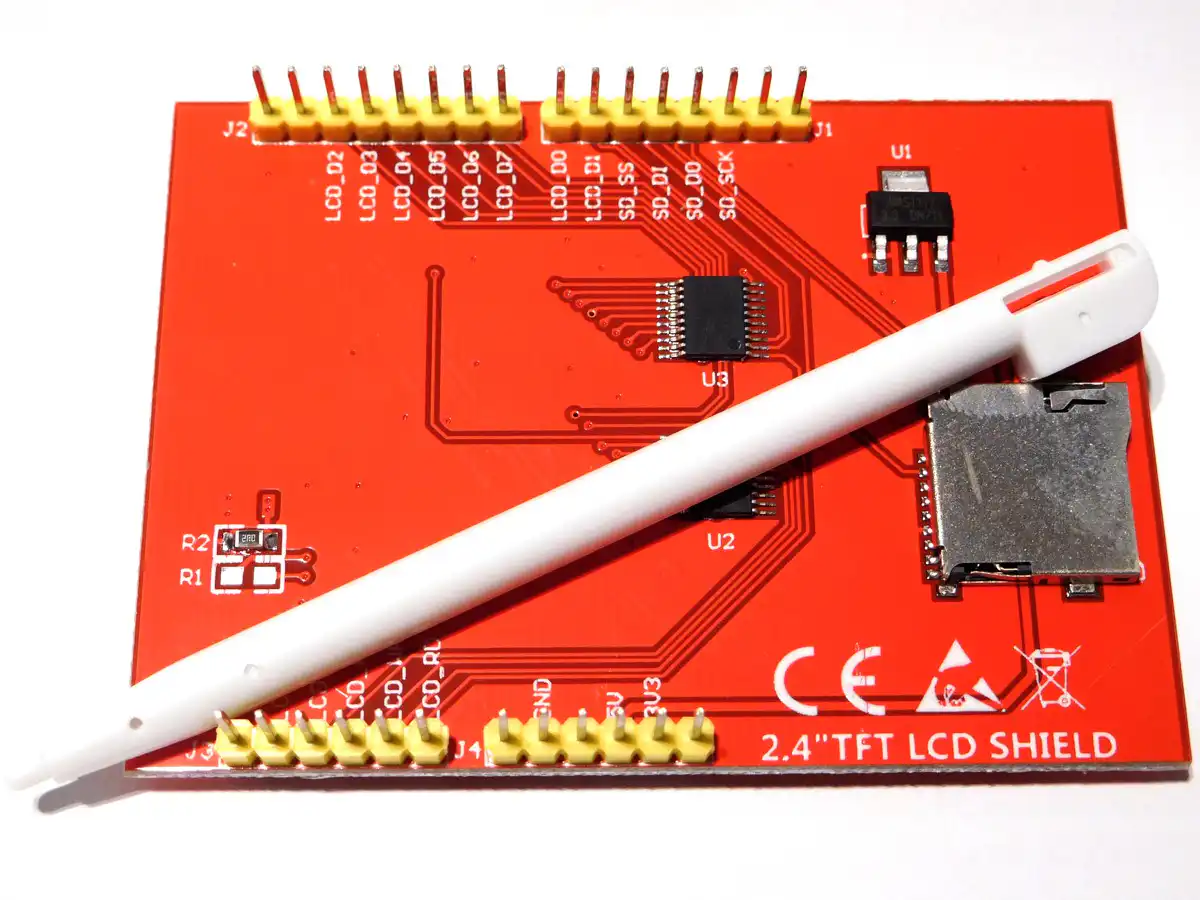

The display features a responsive 4-wire resistive touch screen, adding interactive capabilities to your creations. Additionally, it comes equipped with a convenient micro SD slot, enabling easy storage and access to images and icons for your projects.
The Touch Display for Arduino is driven by the reliable SPFD5408 controller, ensuring smooth and efficient performance. Its integration is made hassle-free, thanks to the onboard level converter, allowing safe connections to both 3.3V and 5V Arduino boards. Moreover, we recommend using the JoaoLopesF/SPFD5408 updated library (available on GitHub) for optimal compatibility and performance.
Measuring 72 x 53 mm in PCB size, with a viewable screen area of 39 x 54 mm (2.4 inches), this display strikes the perfect balance between size and functionality. It also features a bright backlight provided by 4 white LEDs, ensuring clear visibility under various lighting conditions.

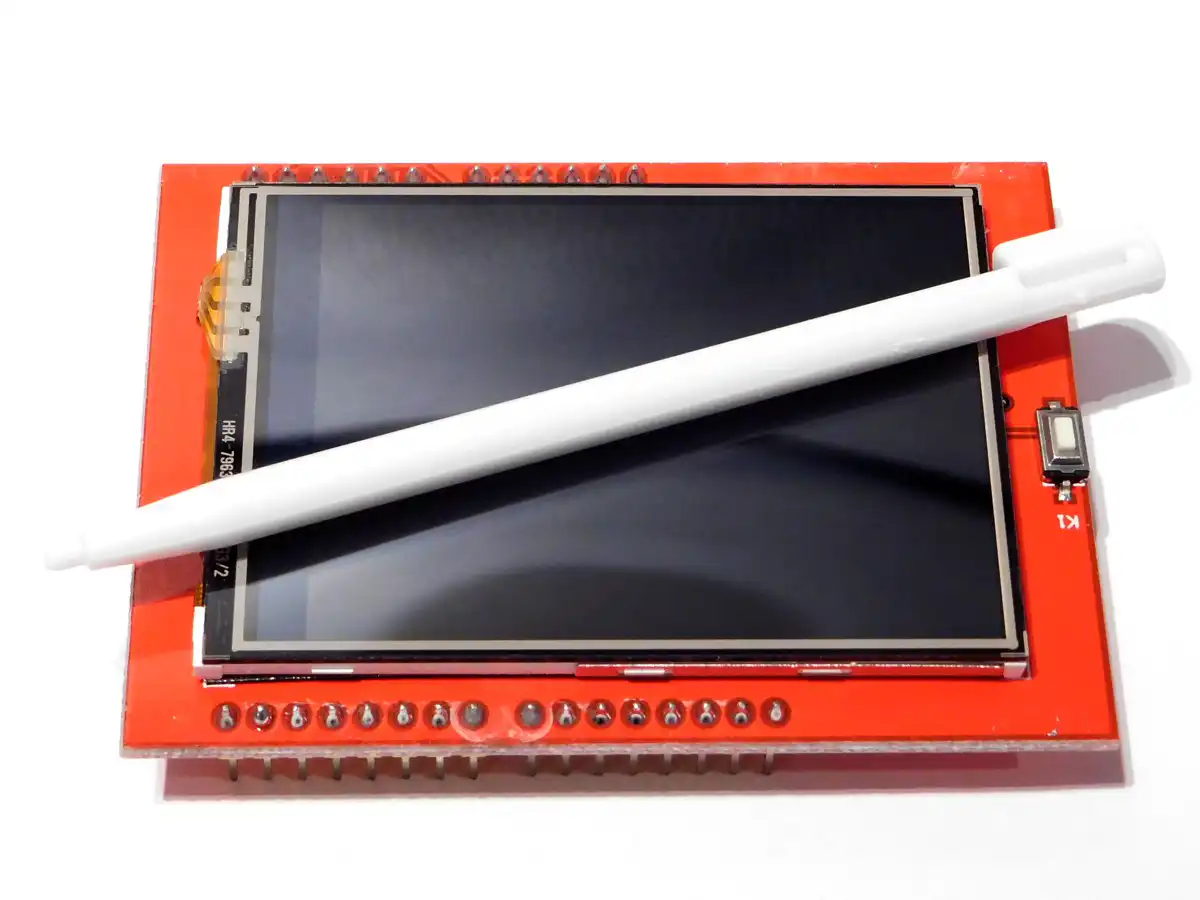

Included with the 2.4 TFT Touch Screen for Arduino UNO, MEGA2560 is a touch pen, enhancing the usability of the touch interface. Whether you're building a home automation system, a custom control interface, or an educational tool, this 2.4 TFT Touch Screen for Arduino adds a new dimension of interaction to your Arduino projects.
This bright and clear IPS TFT Display connects right on Arduino Development boards. Thanks to the on-board level converter will this TFT Display hook up to 3.3V and 5V Arduino boards without any voltage compatibility issues.
We recommend the JoaoLopesF / SPFD5408 Library (available on GitHub) since this is an updated version of the Adafruit TFT Library, specially designed for these display modules.
- Shows characters and graphics.
- 320 x 240 pixel, 18-bit (262,000) color
- PCB size: 72 x 53 mm
- Screen size: 39 x 54 mm (2.4 Inches)
- On-Board 3.3V / 300mA LDO voltage regulator
- 4-wire resistive touch screen
- Data interface: I/O 5-13, and analog in 0-3
- Bright backlight provided by 4 white LEDs
- touch pen included
