CANABLOX® 16-Key 0-9, A-F Hexadecimal Keypad I2C (CX-KEYPAD-S)

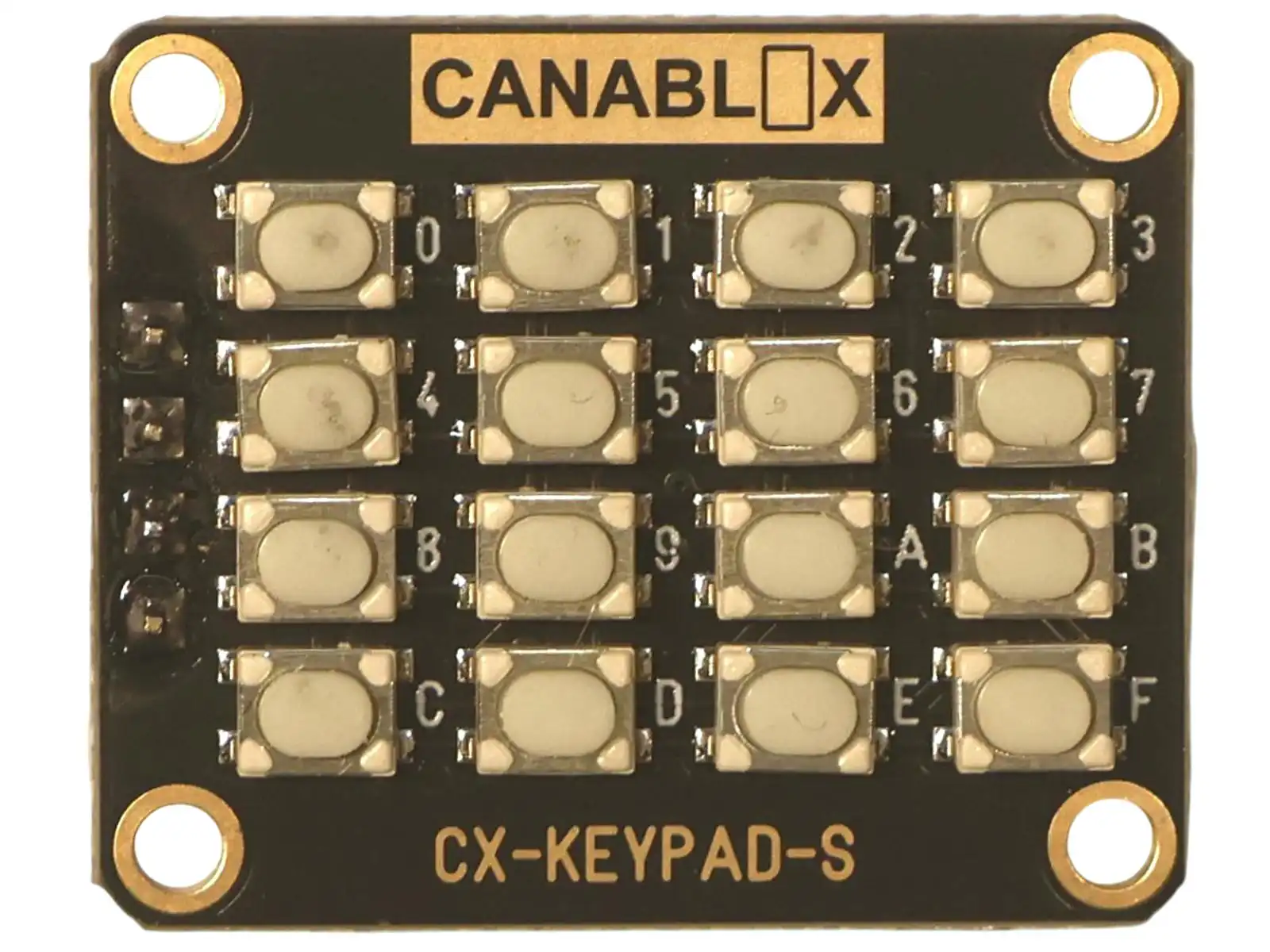

The CANABLOX® 16-Key 0-9, A-F Hexadecimal Keypad CX-KEYPAD-S is based on the PCF8574A I/O Expander. The module is available in the Single Slot form factor.

Selectable I2C address: 0x3B, 0x3D, 0x3E

Code example:
Download a demo sketch (tested with XIAO ESP32C6) that sends the hexadecimal number of the currently pressed key (0-F) to the serial monitor

>>> Find the documentation in the comments inside the demo code. <<<

PDF Datasheet:
Download PCF8574A PDF Datasheet

This is in the bag:
1 x CANABLOX® module
1 x male pin header 4-pin
1 x CANABLOX® I2C Cable 5cm

Note:
Through-Hole (TH) connectors, like the I2C pin header or screw terminals, are included but not factory assembled.
