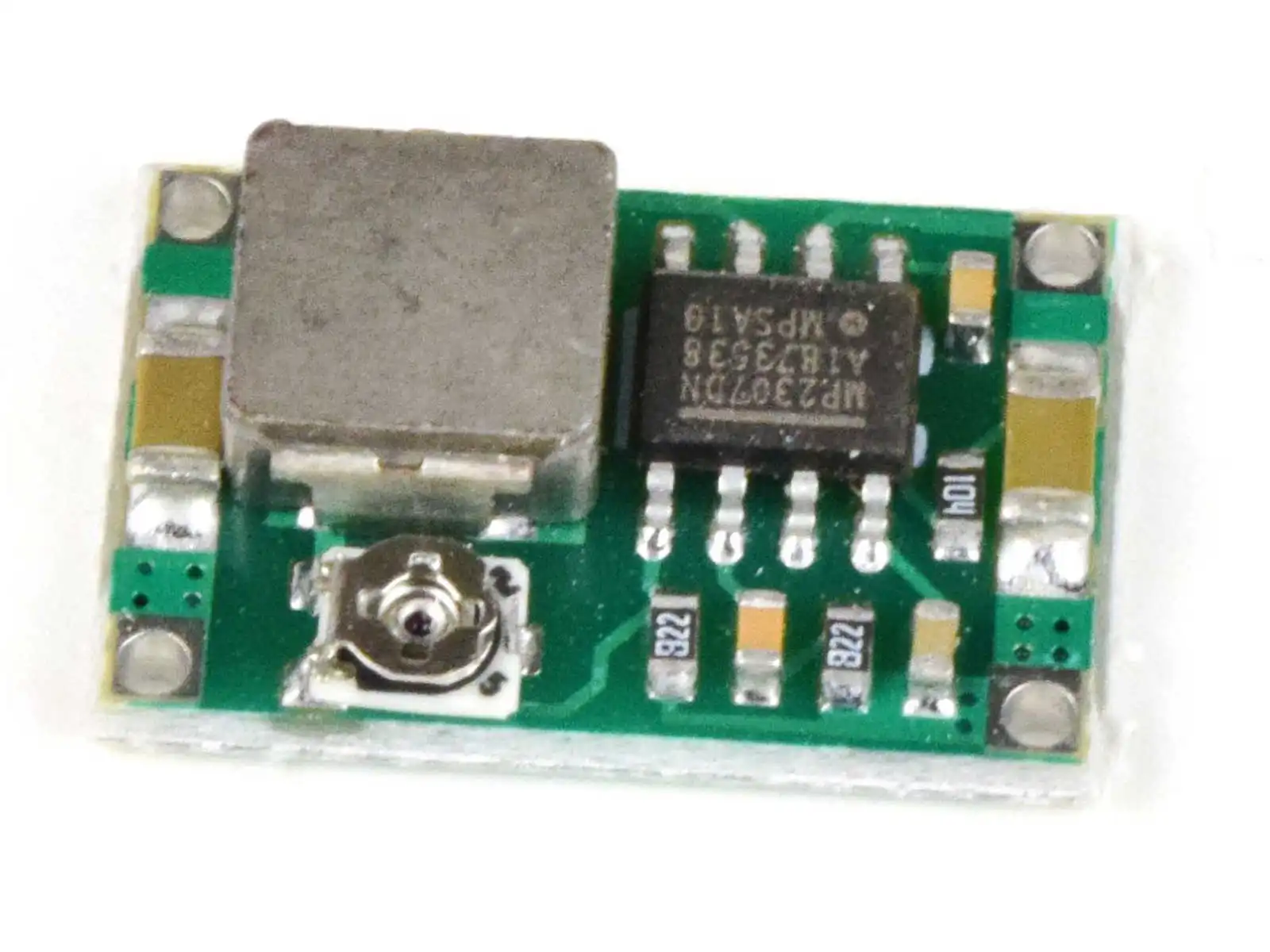

Set of 2 powerful, Tiny DC-DC Converter with 1-17V adjustable output voltage, max. 3A.
This module comes ready assembled and tested with very high efficiency of up to 96%.
The output voltage can be adjusted by the onboard trimmer potentiometer. The input voltage must be at least 3V higher than the output voltage.
Specifications:
Input voltage: 4.75 to 23V DC
Output voltage: 1 to 17V DC, adjustable
Output current: max 3A
Conversion efficiency: up to 96%
Dimensions: 1.1 * 1.7 cm
Weight: 1.6 g
jason.brett (verified owner) –
I’ve used them in one or two projects… they work great and are an amazing bargain at this price. I’ve got them dropping 17VDC to 5VDC to drive a Raspberry Pi Pico and about 150 WS2812B LEDs (not at full brightness… just a couple amps of current) and it works like a charm. The 5VDC level looks pretty smooth on a scope.
I take one star off because the mounting holes are not on a 0.100″ (2.54mm) grid spacing. This means you have to create some custom headers if you want to use this on a breadboard, and a custom part if you want to put it on your printed circuit board design. It’s not a deal-breaker, but just frustrating that whoever designed the board never thought “Hey… Maybe someone will want to plug this into a breadboard one day!”. On the bright side you can surface mount the part directly to a PCB. I am writing this review because I’m buying more of them, so they must be good! 🙂
radcomtech (verified owner) –
Work well on the bench in buck mode even at 5V and 10Watt load from automotive input around 14V (alternator turning). useful.
