D1 Mini Motor Driver
D1 Mini Motor Driver

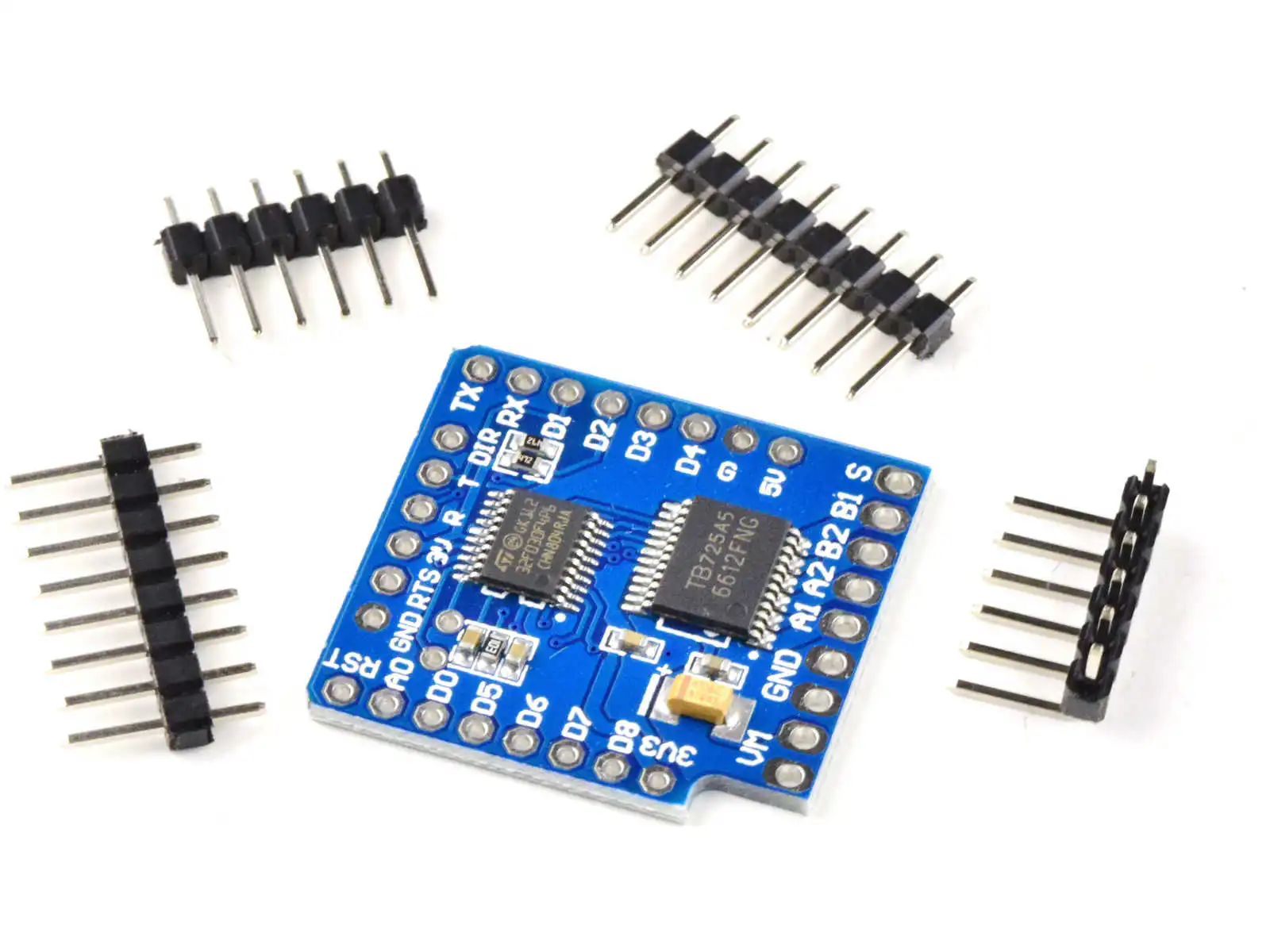

WEMOS D1 Mini Motor Shield

0 out of 5
( There are no reviews yet. )

C$7.90

Learn about Availability Status and Backorder

Availability: In stock (can be backordered) SKU: 26215
Quantity discount 2 - 9 C$7.51
Quantity discount 10 - 19 C$7.11
Quantity discount 20 + C$6.72

Description

The motor driver shield for the D1 Mini Motor Shield and compatible modules communicate through the I2C bus with the MCU, which only requires 2 GPIO ports.

I2C interface
Power supply voltage: VM=15V max
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes

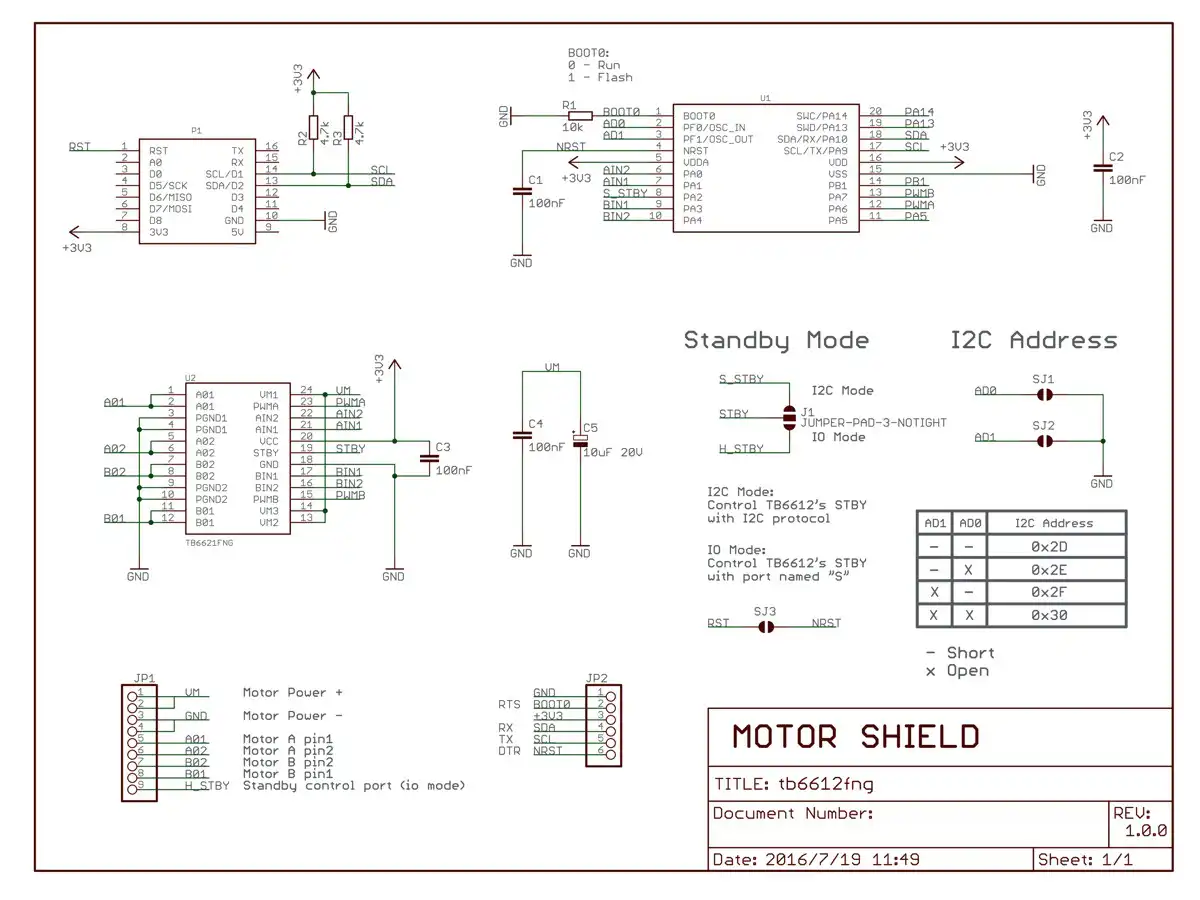

Pin description:

VM: Motor power supply + (Max 15Vdc)
GND: Motor power supply –
A1 A2: Motor A
B1 B2: Motor B
S: Standby control port (in IO mode)
Standby control mode
I2C mode: Control TB6612s STBY with I2C protocol
IO mode: Control TB6612s STBY with S pin
Shield reset mode
short: reset with d1 mini (reset at power on or press d1 minis reset button)
open: reset by DTR pin.

Example codes for Wemos D1 Mini Sensors and Modules (GitHub)

Another source for Wemos D1 Mini compatible Arduino libraries (GitHub)
