USB 5V Power Supply DC-DC Converter 5A

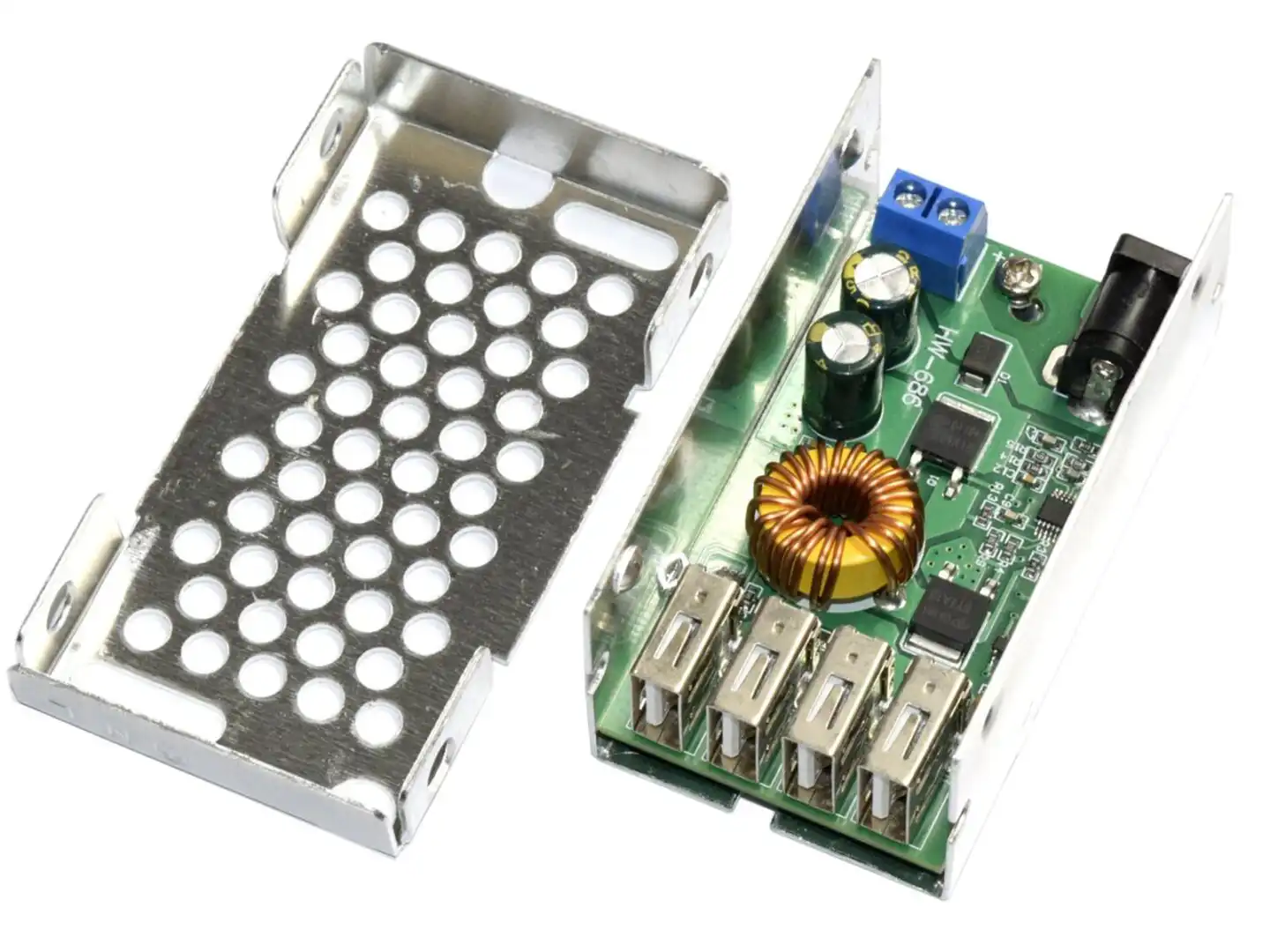

A DC-DC USB 5V Power Supply with USB Output. The enclosed module delivers 5V with max. 5A on 4 USB Type-A outputs.

The DC-DC Power Supply with USB Output is perfectly suitable to drive typical USB gadgets like lights, fans or heating plates/mats, for example.

The maximum output current is the sum of all 4 ports.

• Input voltage: 9-36V DC
• Output voltage: 5V DC (USB-A)
• Module size: 70 x 40 x 30mm

The maximum output current and power depend on the input voltage:

• Input <24V: 6A (30W)
• Input 24-32V: 5A (25W)
• Input >32V: 3.5A (18W)
