NOTE: We added more security features to prevent fraud. Should you have issues with card payments, please use a different card, PayPal, or contact us. Dismiss
The Arduino Pro Micro 5V is a small, breadboard-friendly microcontroller board. It has an operating voltage of 5V and a clock speed of 16 MHz, making it suitable for a wide range of applications. The ATmega32U4 microcontroller has 32KB of flash memory, 2.5KB of SRAM, and 1KB of EEPROM, and features built-in USB support, which eliminates the need for a separate USB-to-serial converter. The Arduino Pro Micro has several digital and analog input/output pins, making it easy to interface with sensors, actuators, and other components. It is commonly used for DIY electronics projects, hobbyist inventions, and educational purposes, and is ideal for projects that require a compact and low-cost microcontroller board.
9 channels of 10-bit ADC, 5 PWM pins, 12 digital I/O as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorited, Arduino-compatible boards, but this little guy can go just about anywhere.
There is a voltage regulator on board which can accept a power supply of 6-9VDC (max. 10V). Make sure to connect the input voltage to the RAW pin and not VCC (5V).

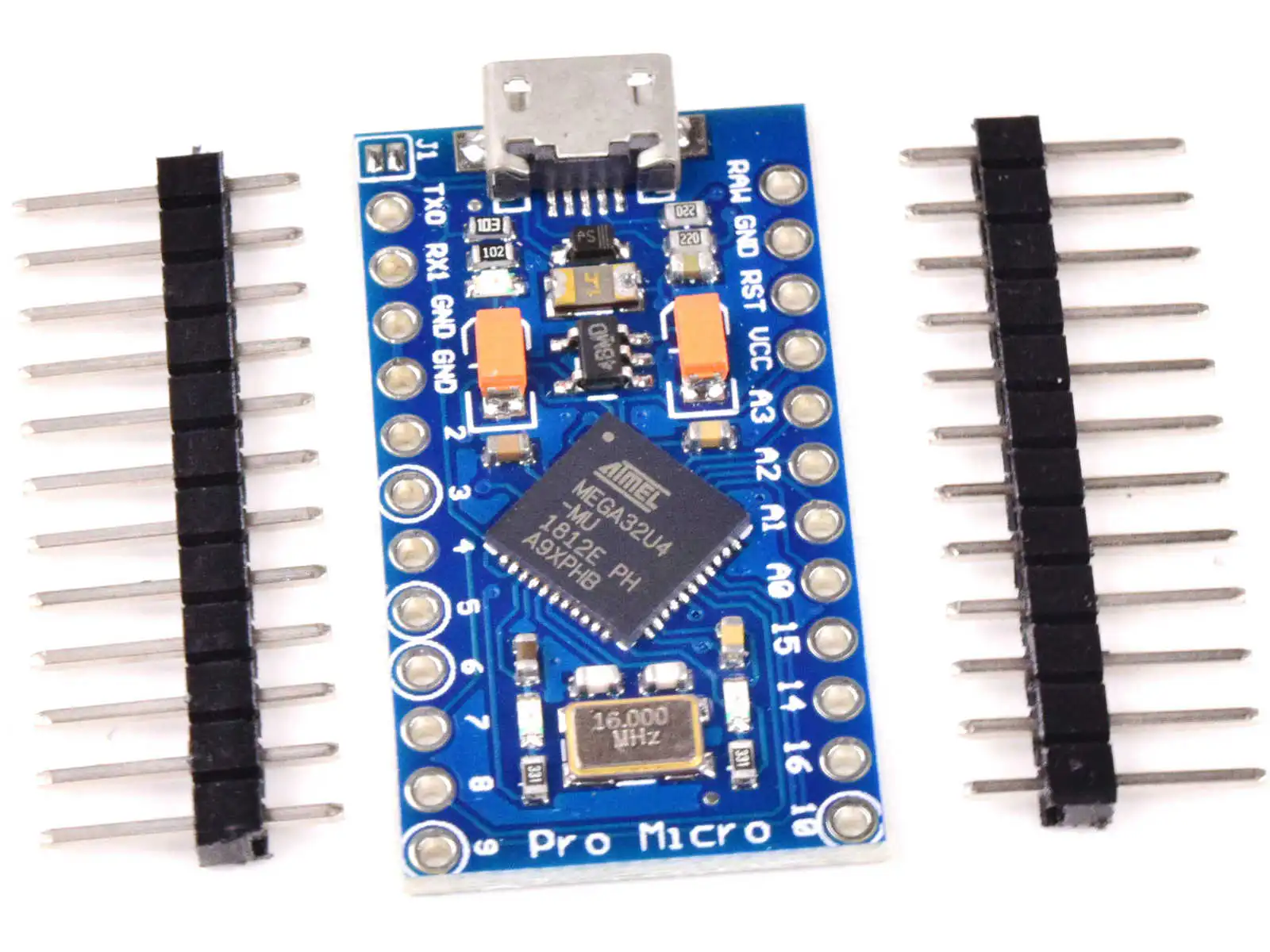

The Pro Micro Arduino compatible board is originally developed as open hardware by the company Sparkfun. It comes with the Atmel Atmega32u4 MCU and runs with 16MHz. A pair of pin headers are included, as shown in the picture.
For more information, please follow the link to the official Arduino Pro Micro Atmega32u4 project page: click here.
7 reviews for Arduino Pro Micro 5V 16MHz (compatible). Atmega32u4
Rated 5 out of 5
Jerome –
To simulate mouvements and clics from a mouse only by pushing once on a push-button. Can simulate keyboards typing too.
Rated 5 out of 5
Alex Vella –
Clean looking, everything is soldered on nice and straight, except for the headers that aren’t soldered at all, but come as an option, which i appreciated. Had some issues connecting the board to a serial moniter in xubuntu, however windows 7 works like a charm. (Xubuntu gave me a bunch of errors along the lines of cannot connect to /dev/ttyacm0 device is busy, but would eventually connect if you tried enough times) btw great customer service too!
Rated 5 out of 5
Lucas –
As advertised, shipping was faster than advertised, packaged well, works great
Rated 5 out of 5
_That Guy__That Guy_ –
This thing is smaller than I expected! I honestly thought this was the 6 axis gyro I intended to attach to this tiny thing. I plan on building a EDTracker with this board. It will act like a TrackIR, but have a little bit lower latency and a higher reliability.The Pro Micro 5V is built well, with all pads appearing to be well soldered to the board. The PCB is a little rough around the edges and could use a bit of sanding to look smoother; but isn’t that important, as most people will be putting their final build into a box/case/housing of some sort. The free ‘Non-Prime’ shipping was pleasantly fast, and was well packaged using static safe envelopes.
Rated 5 out of 5
Retired golfer/bounty hunter –
Definitely operates fully within Arduino specs. I ordered some Chinese imitations that really let me down. Their clock speed was four times slower than it was supposed to be, didn’t hold the memory it was supposed to. It was a wreck. The CANADUINO works exactly as it should. And it got here SO much faster than the Chinese ones. This is my go to from now on.
Rated 5 out of 5
plume –
I use this for a remote pendant on my cnc router with no issue.
Rated 5 out of 5
Ben W. –
Great micro controller! Works well and arrived earlier than expected, very happy. Will purchase again
Only logged in customers who have purchased this product may leave a review.
