Osram SCD55100A intelligent 10-digit Dot-Matrix Display (red) DIP-28

New Old Stock

The Osram SCD55100A Intelligent LED Display is a 10-digit, 5×5 dot matrix display with integrated serial interface, decoders, multiplexers, and LED drivers - all in a compact 28-pin DIP package. It features user-defined characters, built-in brightness control, and low power consumption, making it ideal for custom instruments, counters, and calculators.

Designed for seamless connection with microcontrollers, the SCD55100A operates with either internal or external multiplex clocks.

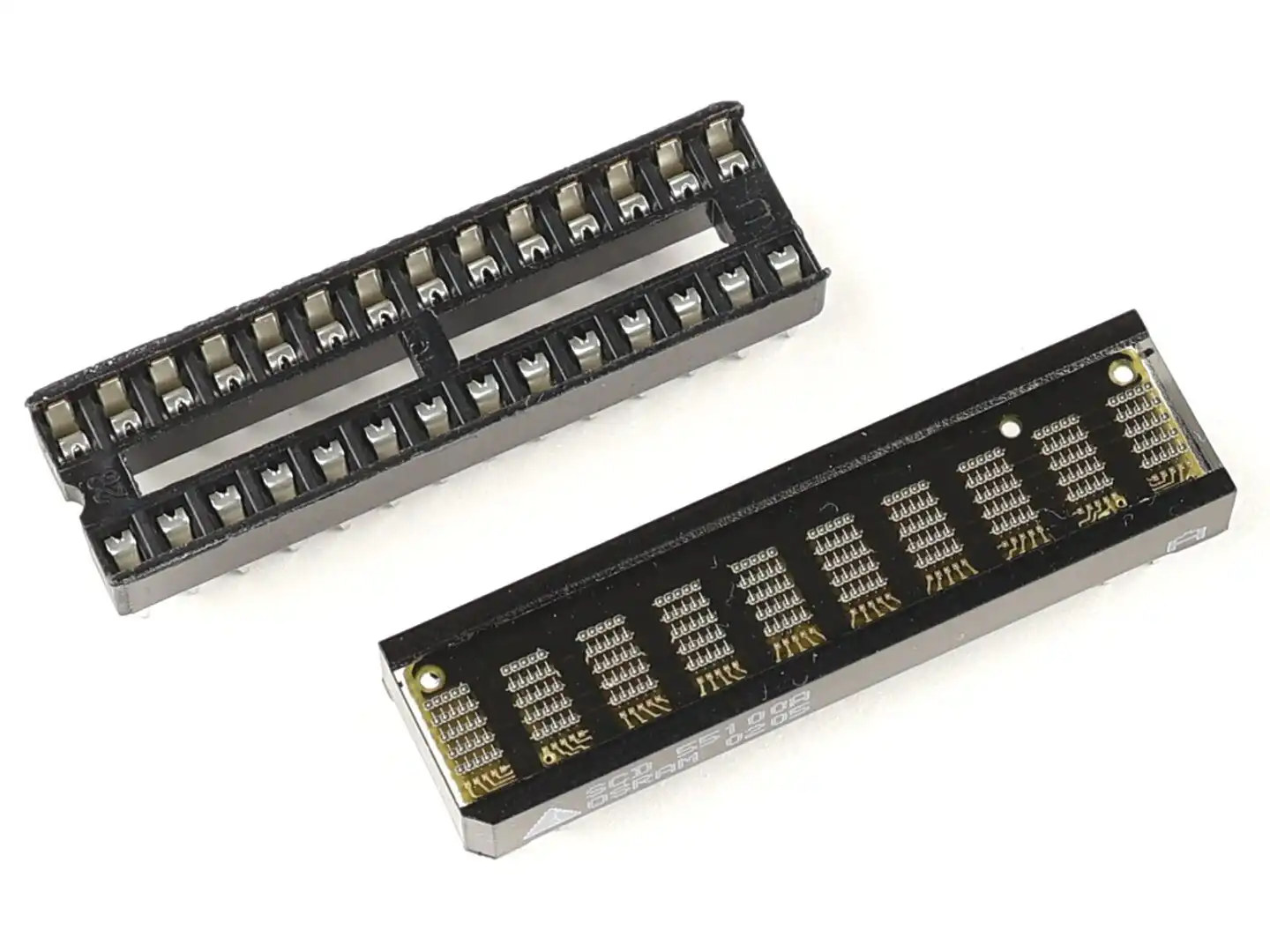

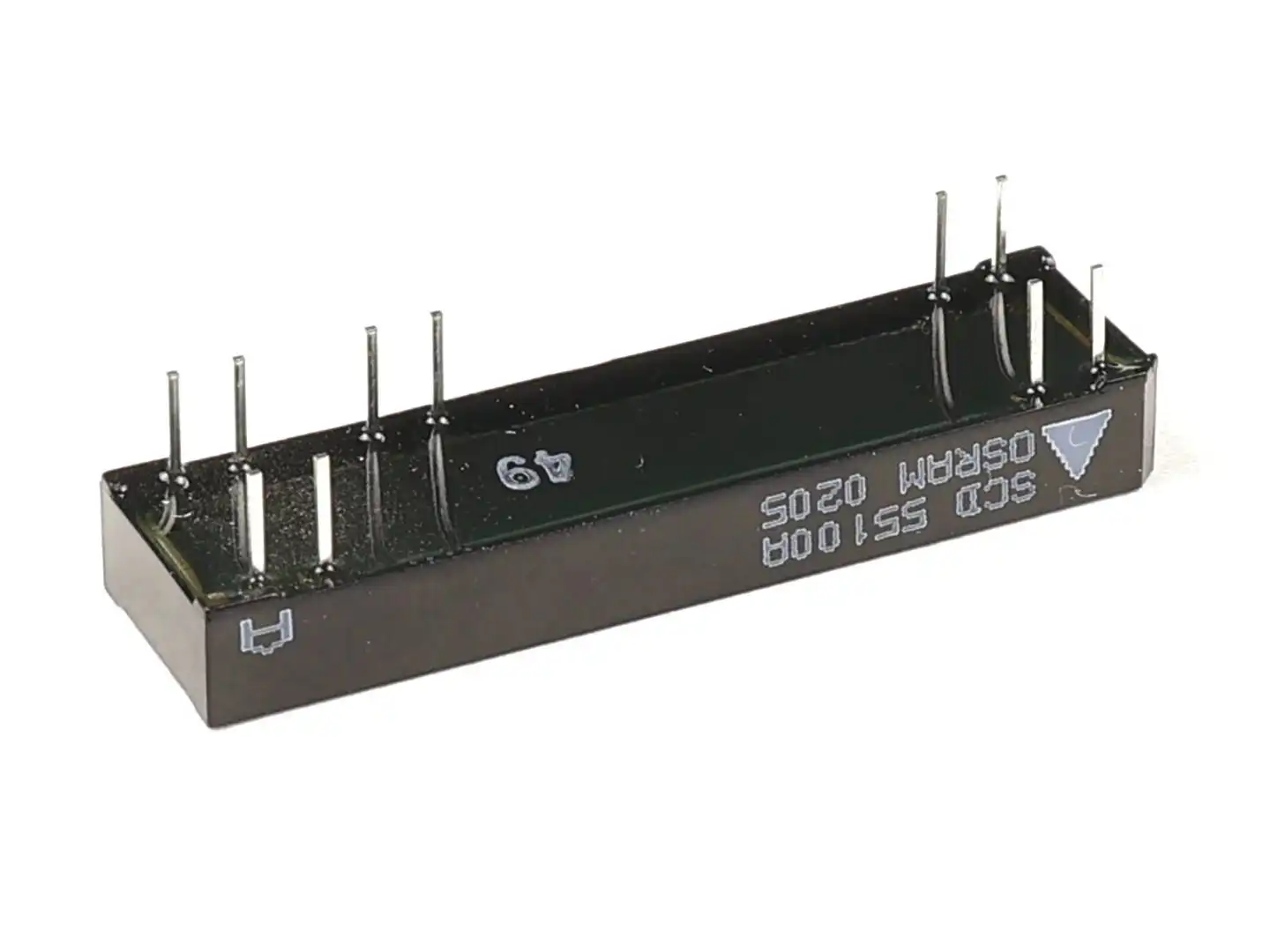

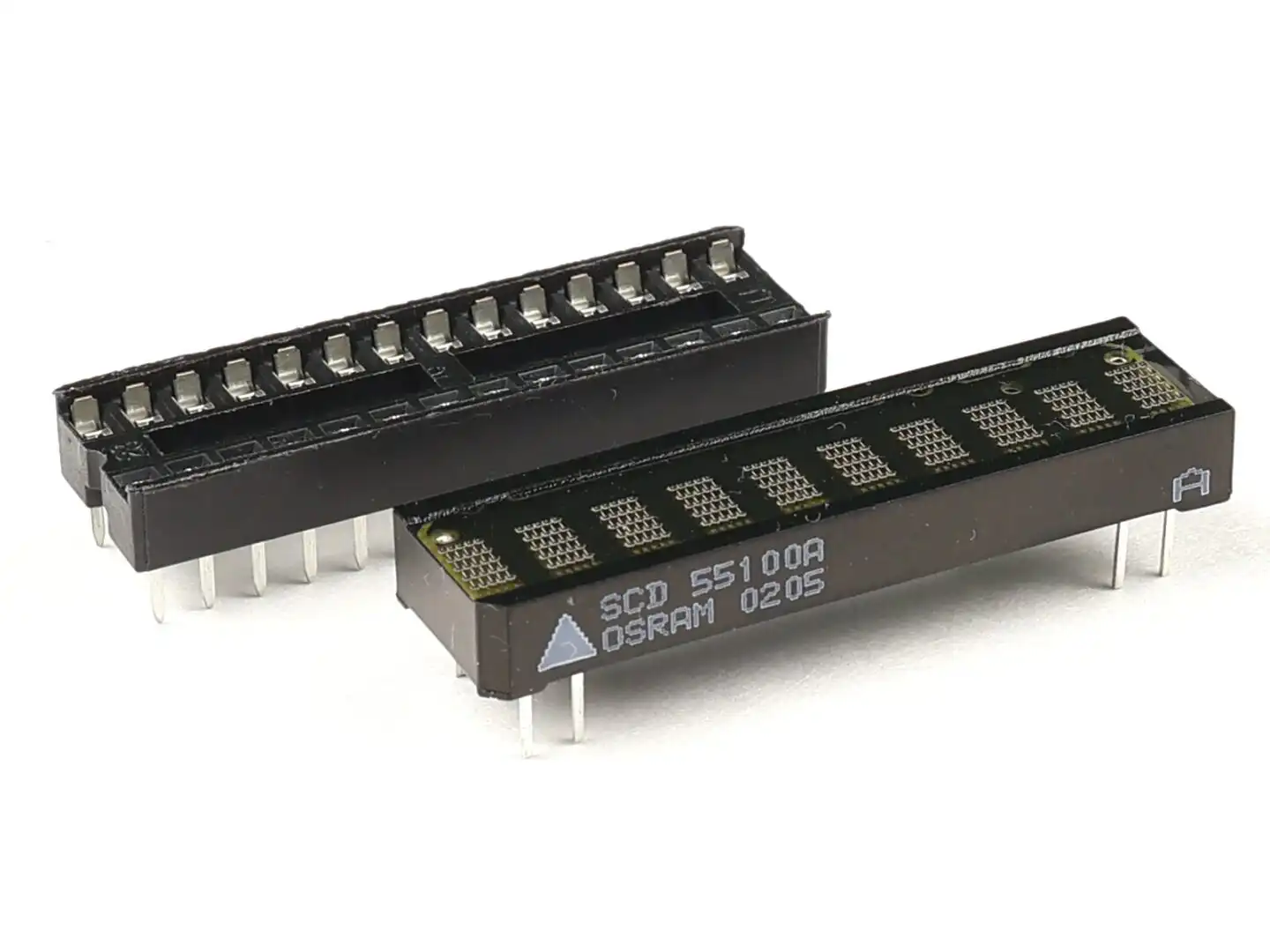

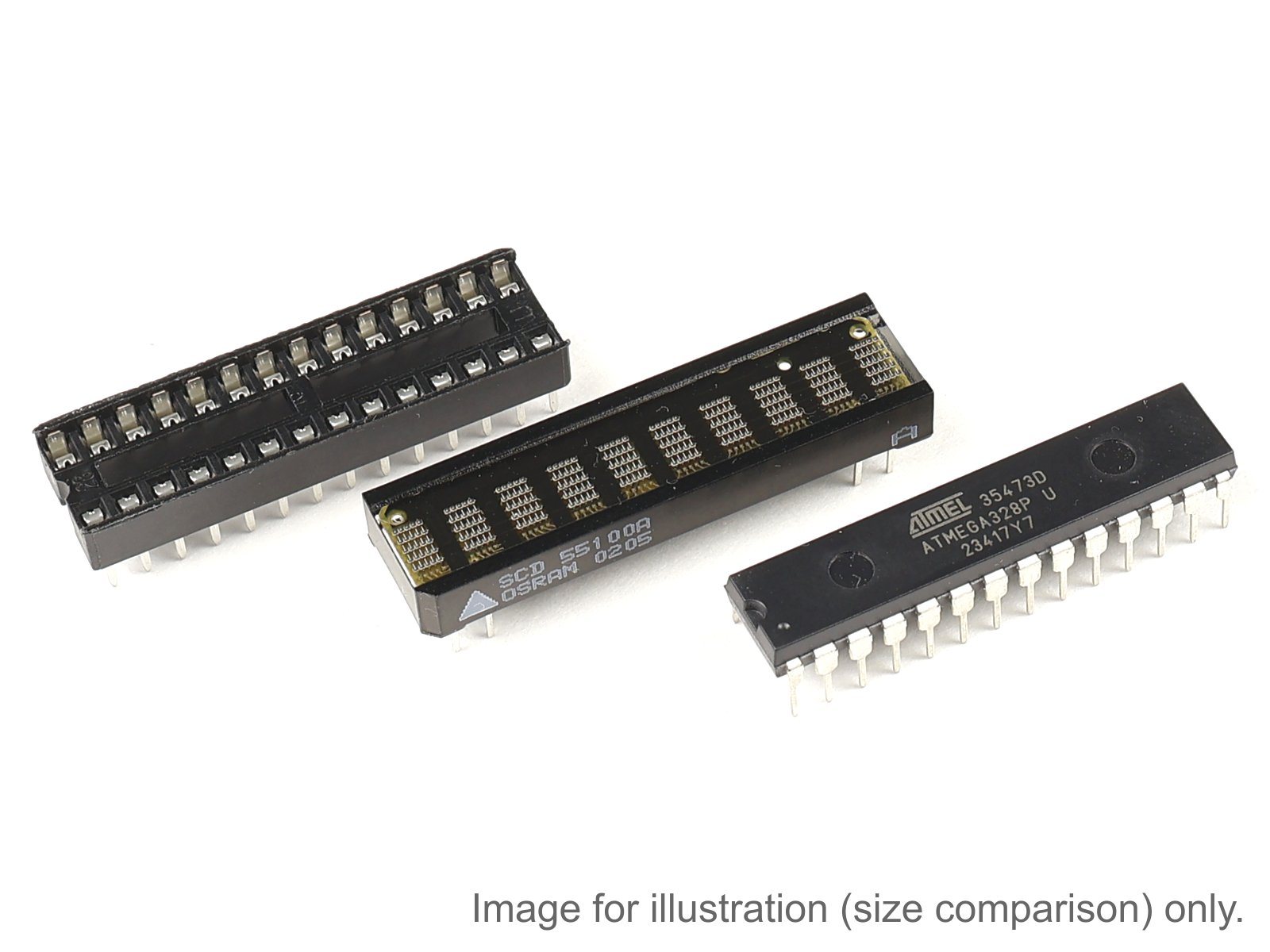

NOTE: The AVR chip and the socket on the images are not included!

Features:

• 10-digit, 5×5 dot matrix display with serial input
• Integrated decoders, multiplexers, and LED drivers
• On-board 250-bit RAM
• Operates with internal or external multiplex clock
• Wide viewing angle: ±55° X-axis, ±65° Y-axis
• Adjustable brightness with 8 dimming levels
• Low power consumption - up to 30% lower than comparable 5×7 displays
• Ultra-low standby power in power-down mode (<250 µW)
• Software and hardware clear function with lamp test capability
• High-speed data input rate up to 5 MHz
• Readable from up to 1.8 meters (6 feet)
• Standard 28-pin DIP package, 7.62 mm (0.3") pitch
• Compatible with 5V logic
• End-stackable for multi-display applications

Osram SCD5510x Series Datasheet

Osram SCD5510x Arduino library with demo sketch

Osram SCD5510x Arduino library documentation
