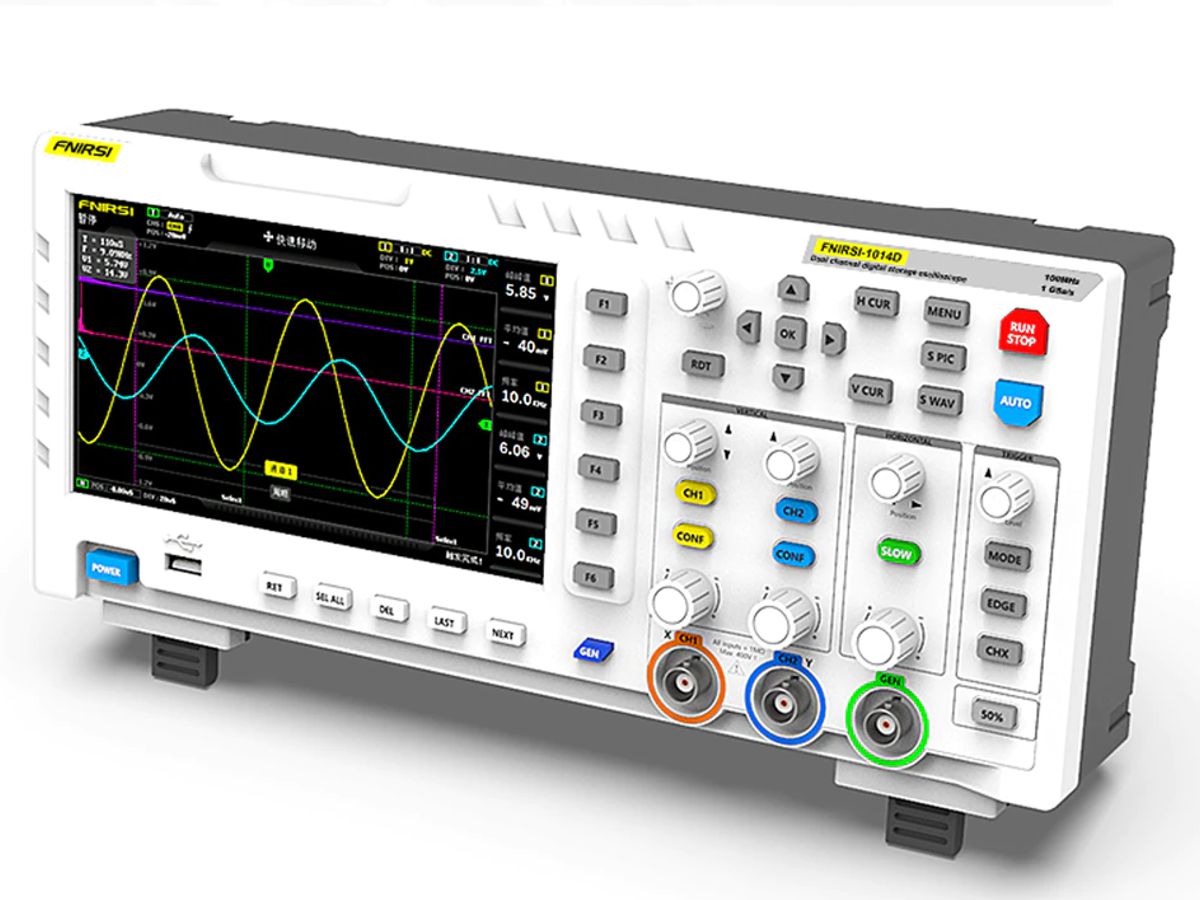

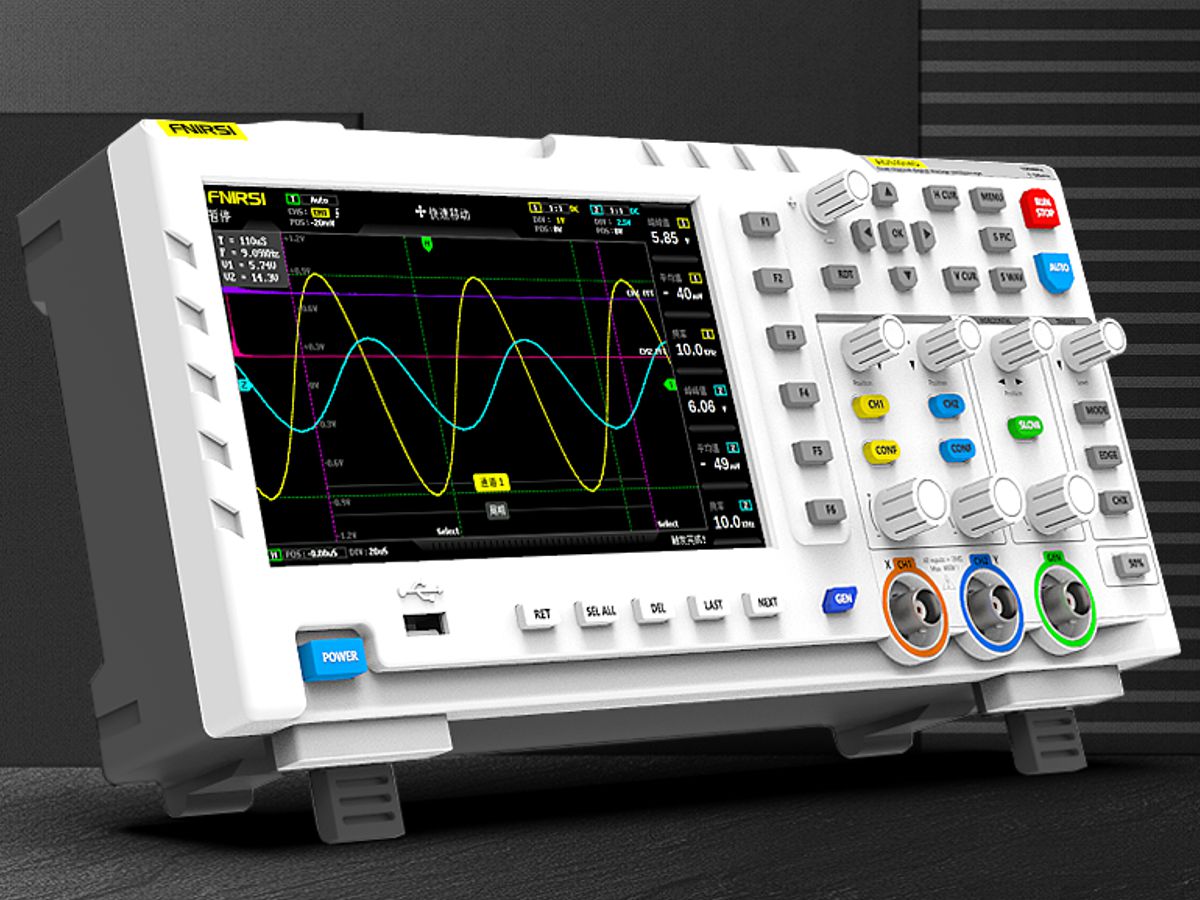

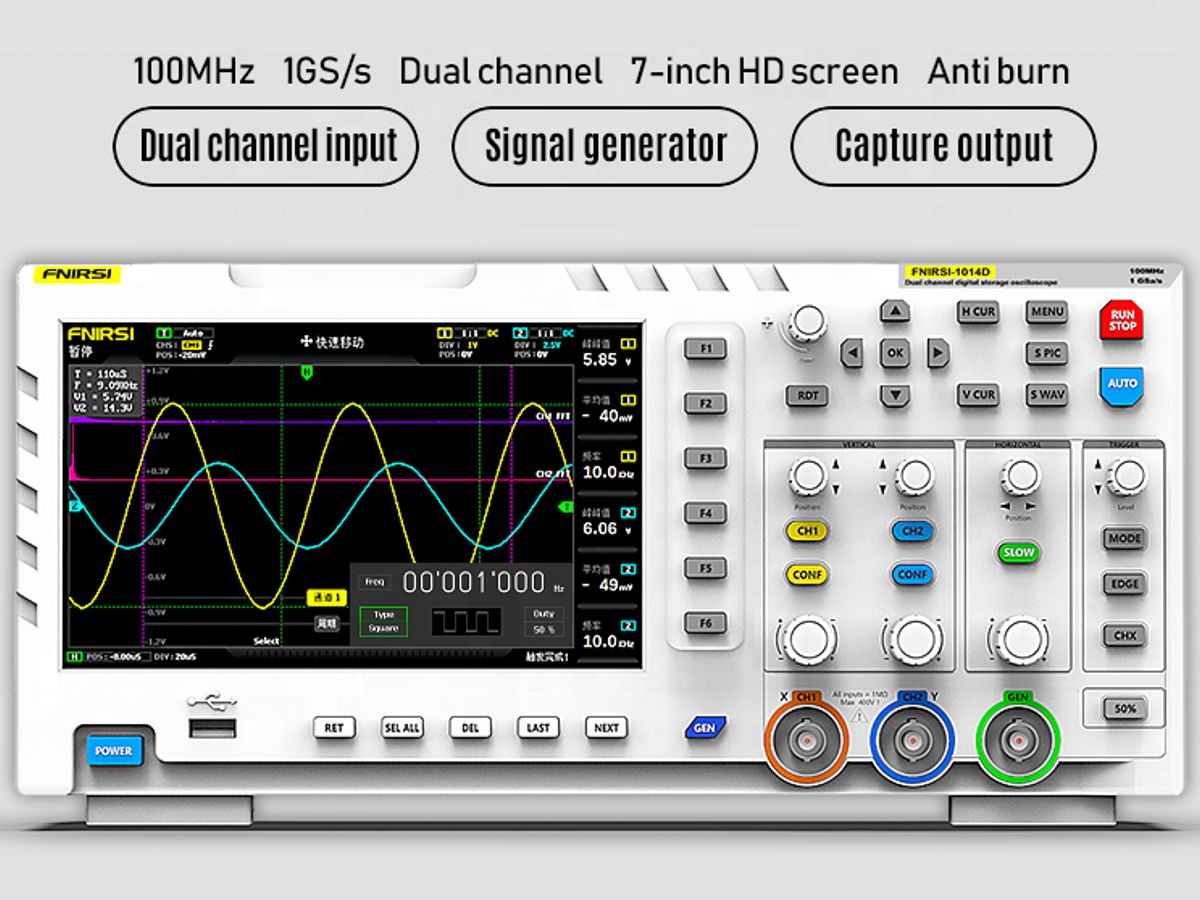

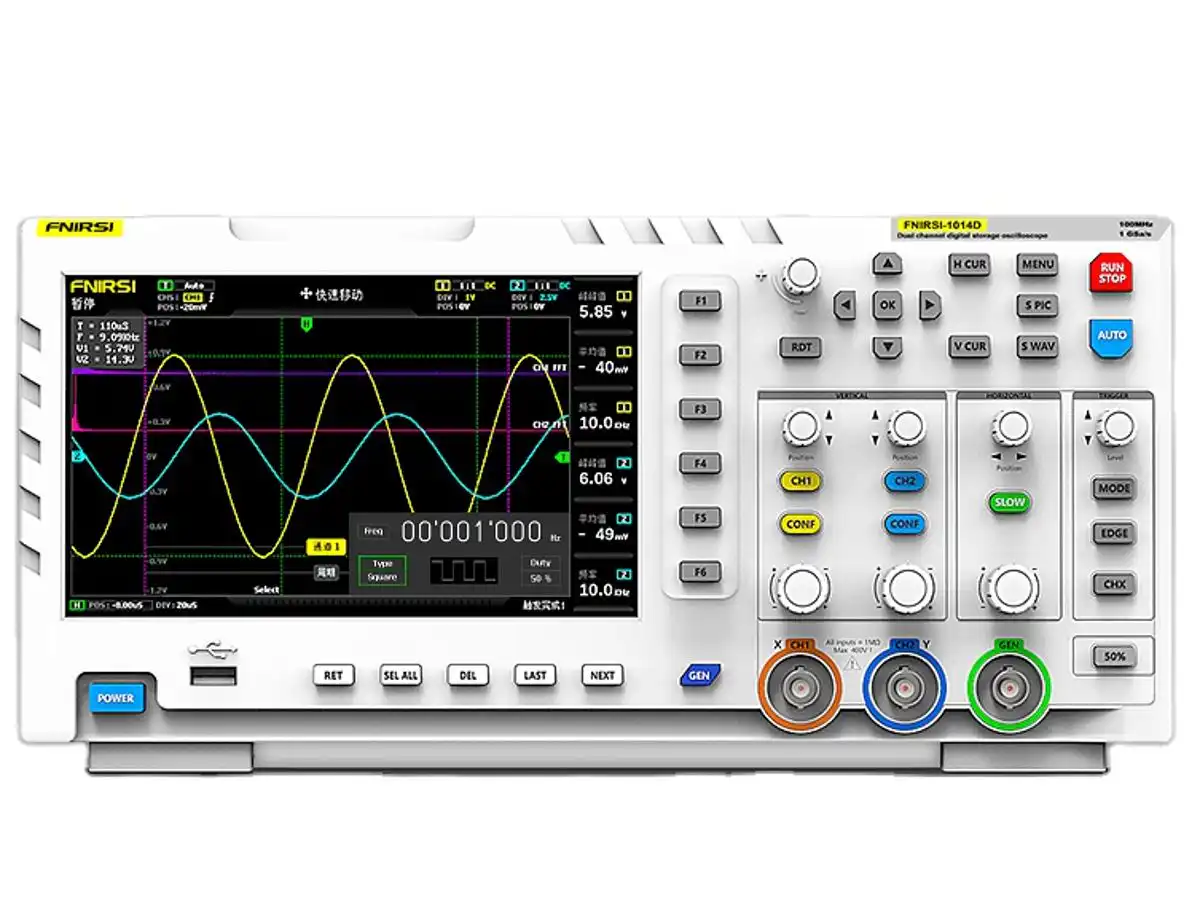

This Digital Oscilloscope with Function Generator combines a dual-channel digital oscilloscope and an integrated DDS waveform generator in a single bench-top instrument. It is intended for electronics development, troubleshooting, education, and laboratory measurements where both signal observation and signal generation are required.
The oscilloscope section provides real-time signal acquisition with high sampling rate, wide bandwidth, and adjustable vertical and horizontal scaling. The integrated function generator supports a wide range of waveform types and frequencies, allowing direct stimulus and testing of electronic circuits without additional equipment.
Key Features
• Digital Oscilloscope with Function Generator in one integrated unit
• Dual-channel oscilloscope with high real-time sampling rate
• Wide analog bandwidth suitable for digital and analog signals
• Large color display for clear waveform visualization
• Integrated DDS function generator with multiple waveform types
• USB interface for waveform image export
• Designed for bench, lab, and educational environments
• Maximum sine wave frequency: 10 MHz
• Maximum frequency for all other waveforms: 2 MHz
• Frequency resolution: 1 Hz
Output characteristics:
• Maximum output voltage: 5 V peak-to-peak (all waveforms)

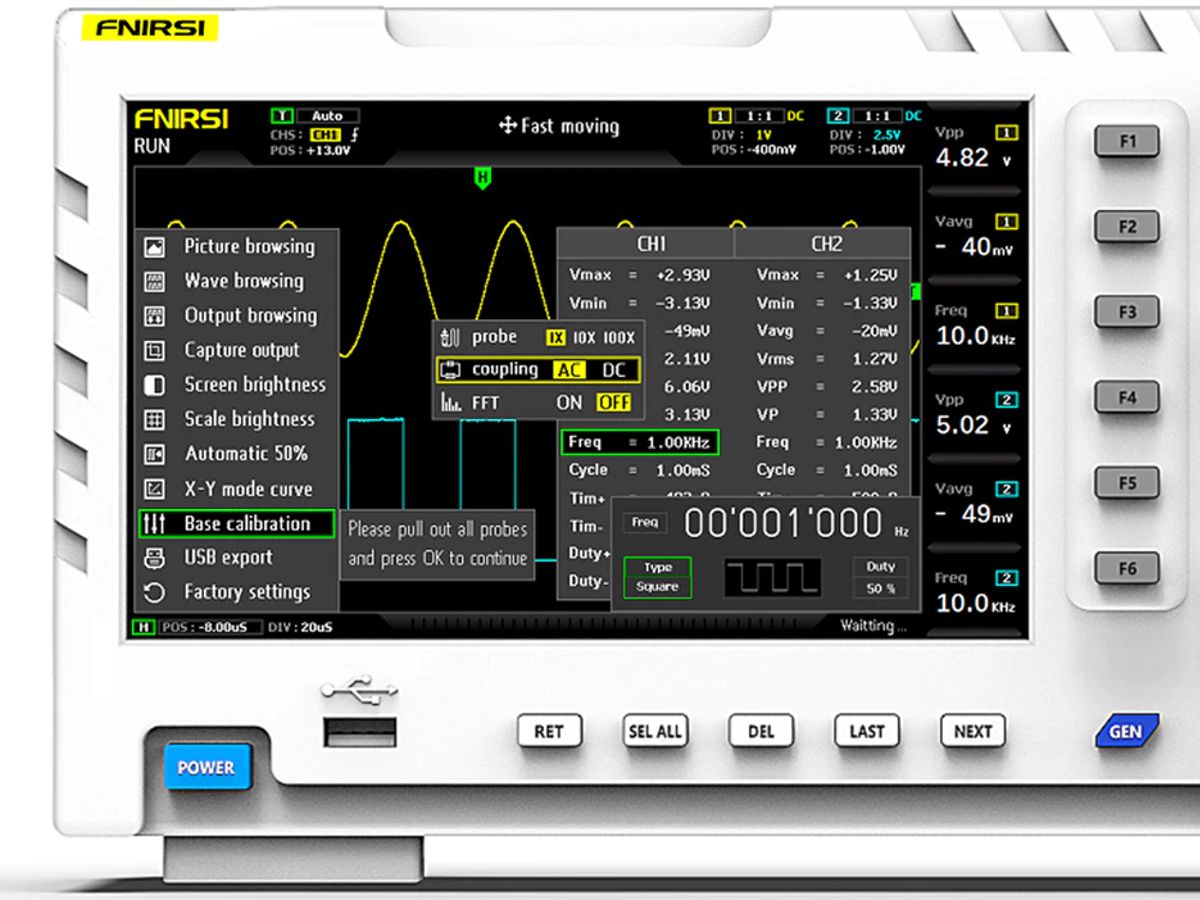

Display and Interface
• Display size: 7-inch color LCD
• Display resolution: 800 × 480 pixels
• USB interface for waveform image export
Mechanical Specifications
Electrical and Usage Notes
• Input voltage limits must be respected to avoid damage
• Probe attenuation settings must match probe type for correct measurements
• Proper grounding is required for accurate and safe measurements
• Function generator output should not be connected to external voltage sources
Typical Applications
• Electronics design and debugging
• Signal measurement and waveform analysis
• Embedded system development
• Educational laboratory use
• Circuit testing and verification
• Signal generation for functional testing
8 reviews for FNIRSI 1014D Digital Oscilloscope with Function Generator
Rated 5 out of 5
Freelancer (verified owner)–
I am very happy with the purchase of this relatively inexpensive, but very good scope and signal generator device.
It works perfectly and is extremely accurate. It is feature packed for the price. I highly recommend the product, and I highly recommend buying from Universal-Solder for a great shopping experience, great prices, and fast shipping.
Rated 5 out of 5
C Borden Chapman –
Easy to use. Exactly as advertised. Wish it had a longer cord from the wall adapter.
Rated 5 out of 5
Rongo –
Haven’t used a scope for many years and not one with this functionality. Used to pack a std. scope, storage scope, signal generator and multimeter into cases to fly allover NWT to repair Navaids for aircraft. This unit would have saved a lot of time and effort.
Rated 5 out of 5
Etienne –
It’s a great oscilloscope for most hobbyist in electronics. Works straight out of the box.
Rated 5 out of 5
Jon Shufelt –
This is probably the best priced oscilloscope. It does everything I need
Rated 5 out of 5
Poppa –
Many years age I would spend hours in the electronics lab writing a report on a waveform. We neede to know: frequency, (calculated from the wavelength.), peak to peak values, DC offset, duty cycle, etc. When I turned the scope on and pressed the “AUTO” button, I had a silly smile on my face as this scope spelled out the pareameters in text beside the waveform on the scren. I’m still smiling. It may not be as good as an expensive laboratory ‘scope. But it is darn good. (I’m still smiling.) I would buy this again. Happy customer.
Rated 5 out of 5
David Villeneuve (verified owner)–

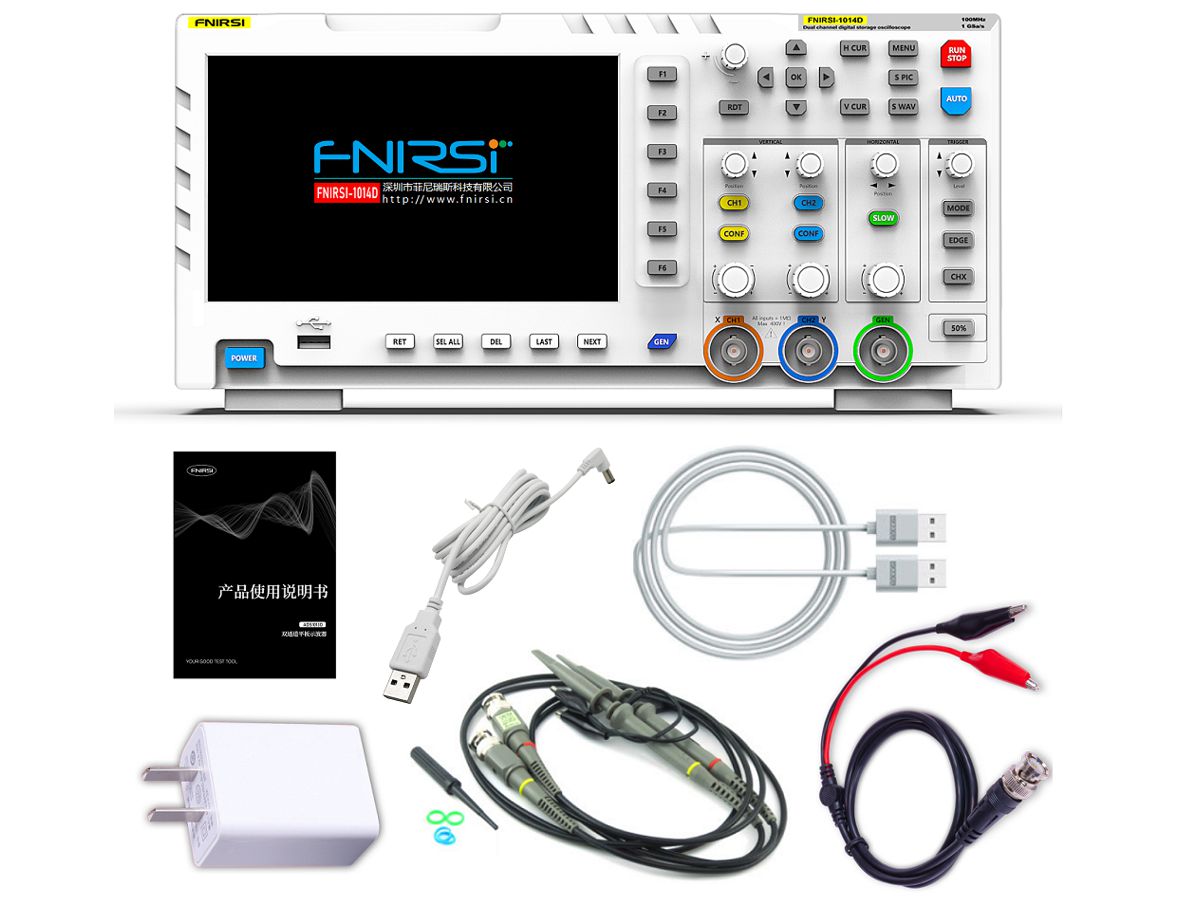

This is a great oscilloscope for a hobbyist. Bright, clear display. Very portable. It has all the standard features of professional scopes, with a familiar layout. Two probes and a third BNC connector with alligator clips are provided. I used it to debug some RS-232 signals being sent to a xyz positioner; the triggering options were useful to catch the signals. The internal signal generator is handy. I measured the rise time of the square wave to be about 12 nsec, corresponding to a 30 MHz bandwidth. This limitation could be due to either the generator or the scope. The instructions are clear that the 100 MHz bandwidth only applies to the probes on the 10X setting. For the price, you can’t beat this scope for a home electronics enthusiast.
Rated 5 out of 5
K Jennings –
Good basic scope for price. The Function generator feature is very handy as well. usb powered, very light and portable. Handy as a first scope or secondary.
