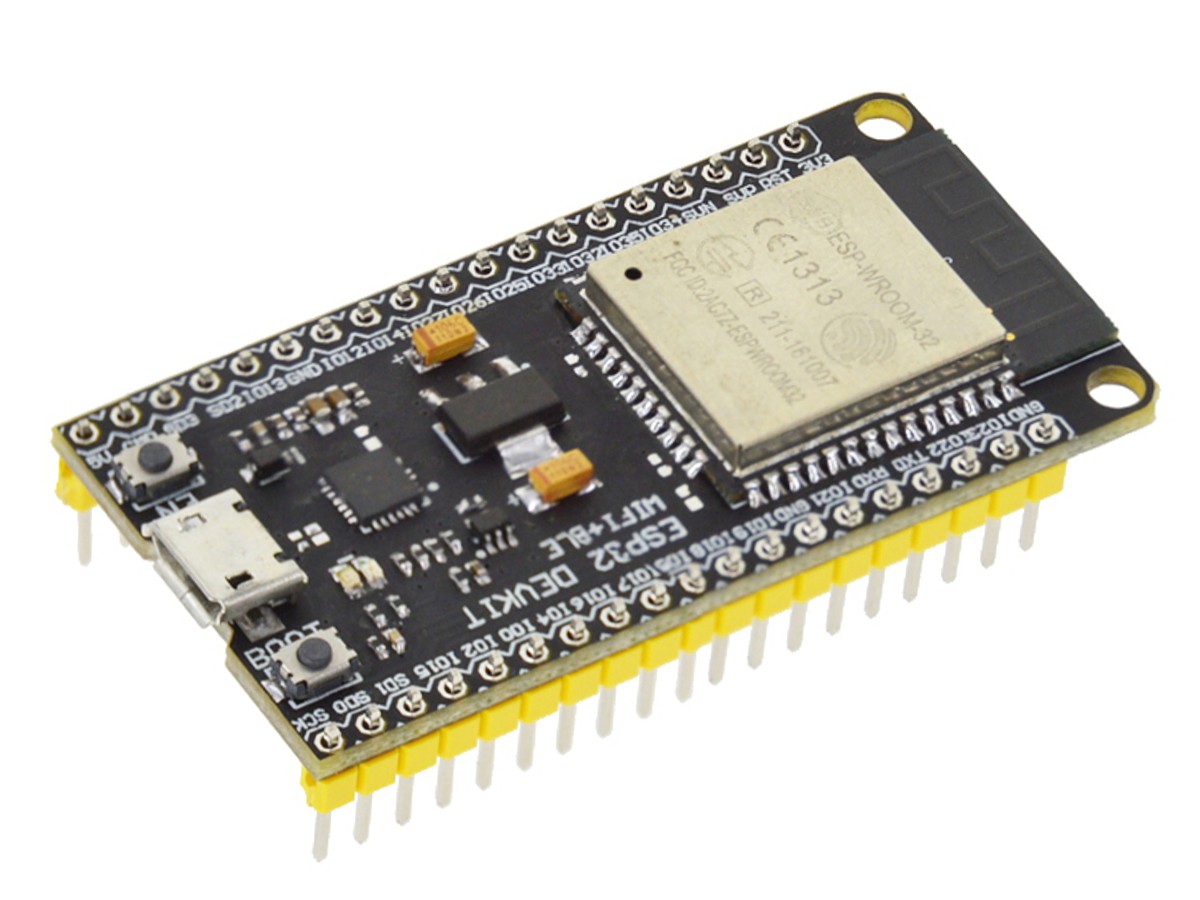

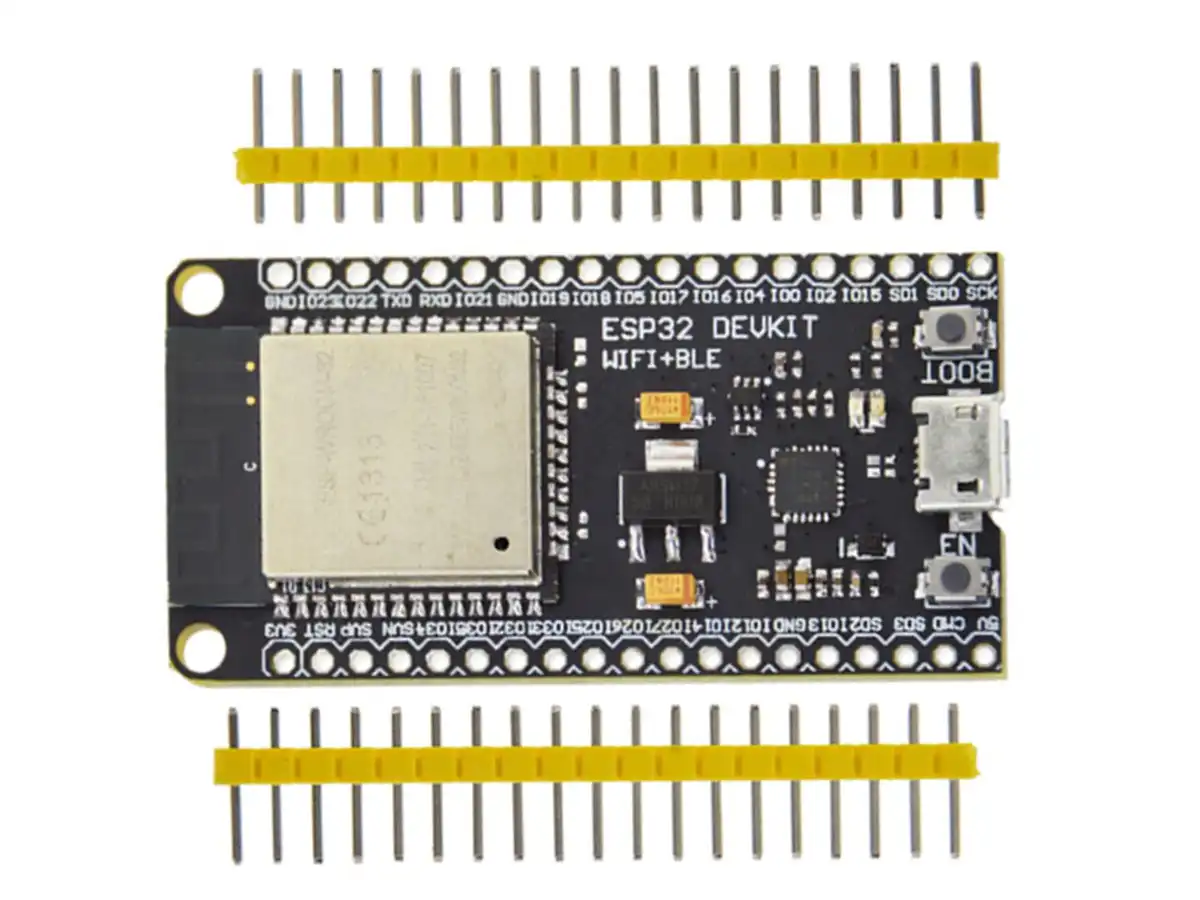

ESP32 Devkit ESP-WROOM-32 - 4MB - CP2101 USB UART

ESP32 Devkit based on the ESP-WROOM-32 module, combining Wi-Fi, Bluetooth, and dual-core processing in a compact, breadboard-friendly form factor. This board is designed for IoT, wireless communication, and high-performance embedded projects.

• Key features:
• Fits our Universal Screw Terminal Adapter (SKU 26162)
• Microcontroller: ESP32 (dual-core Tensilica LX6, up to 240 MHz)
• Memory: 520 KB SRAM, 4 MB flash
• Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth 4.2 + BLE
• GPIOs: Multiple digital I/O pins with support for PWM, I2C, SPI, ADC, DAC, UART
• USB interface: CP2104 USB-to-UART converter, widely supported without driver issues
• Antenna: Onboard antenna for Wi-Fi and Bluetooth
• Power options: via micro USB, external supply, or battery
• Form factor: 25.4 mm raw spacing*, compatible with standard breadboards
• Development support: Arduino IDE and ESP-IDF (Espressif IoT Development Framework)

The ESP32 Devkit is ideal for prototyping and building IoT devices, remote sensors, wireless controllers, and smart applications that require reliable Wi-Fi and Bluetooth communication combined with high processing power.

ESP32 Devkit files and Arduino integration (GitHub)

* not compatible with SKU 26856
