Product Description:

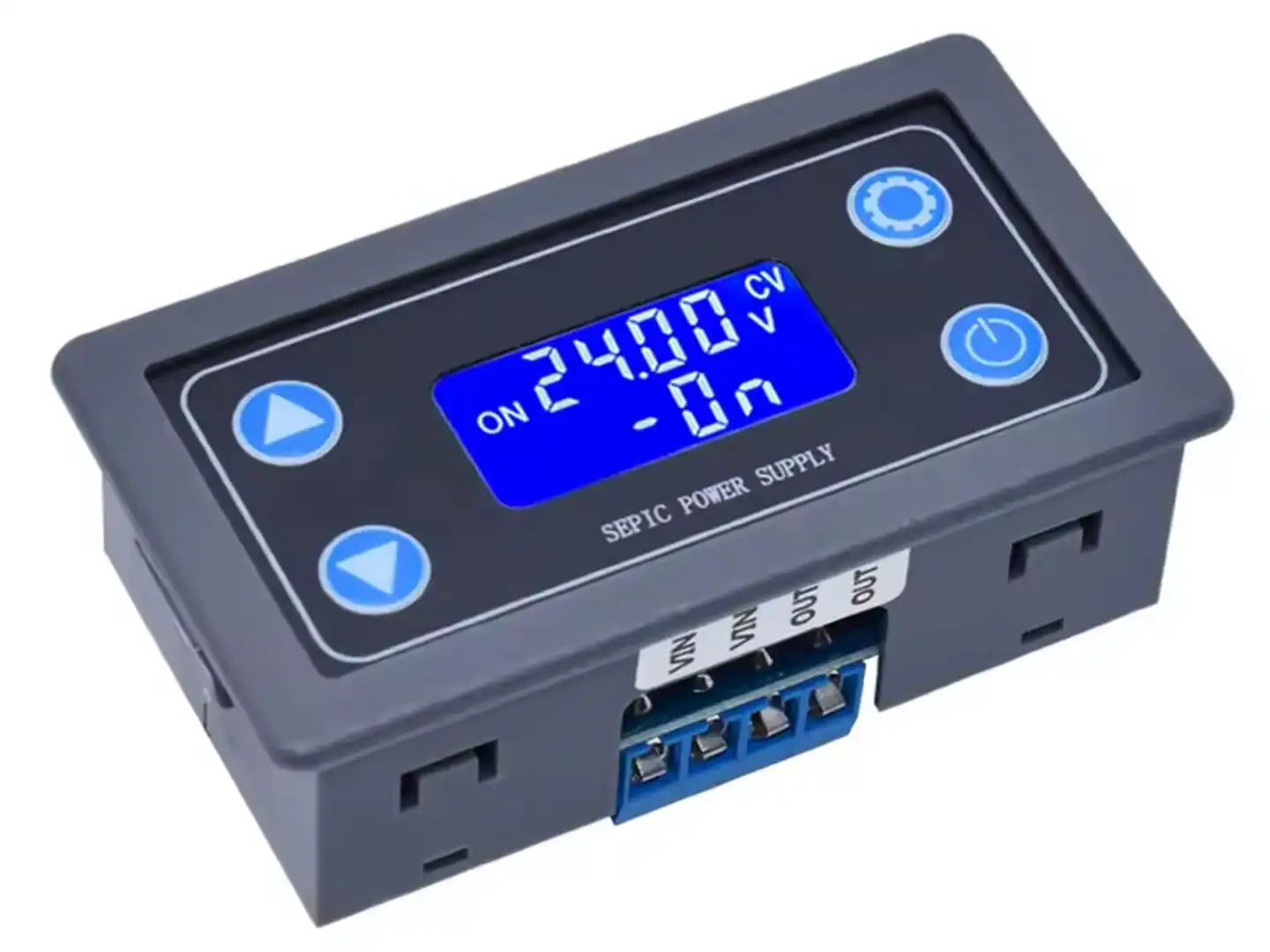

A versatile Buck-Boost Converter Module designed for panel mounting. It efficiently handles both step-up and step-down voltage conversions, making it ideal for applications where the input voltage may fluctuate above or below the desired output voltage.
Key Features:
- Input Voltage: 5V to 30V DC
- Output Voltage: 0.5V to 30V DC
- Output Current: 0 to 4A
- Output Power: Up to 35W with natural cooling; up to 50W with forced air cooling
- Voltage Accuracy: ±1% with 0.01V resolution
- Current Accuracy: ±1.5% with 0.001A resolution
- Conversion Efficiency: Approximately 88%
- Operating Frequency: 180kHz
- Operating Temperature Range: -20°C to +100°C
Protection Mechanisms:
- Input Reverse Polarity Protection: Prevents damage if the input voltage is connected in reverse.
- Output Short Circuit Protection: Safeguards the module in case of output short circuits.
- Overvoltage Protection (OVP): Adjustable to prevent output voltage from exceeding set limits.
- Overcurrent Protection (OCP): Adjustable to limit output current and protect connected devices.
- Overpower Protection (OPP): Prevents the module from delivering power beyond its rated capacity.
- Overtemperature Protection (OTP): Shuts down the module if the temperature exceeds safe operating limits.
- Input Undervoltage Protection (LVP): Ensures stable operation by shutting down the module when input voltage drops below a set threshold.
User Interface:
- LCD Display: Dual-line display Buck-Boost Converter Module showing real-time input/output voltage, current, power, energy, and runtime.
- Control Buttons:
- UP: Short press to toggle between input and output voltage display; long press for voltage self-calibration.
- DOWN: Short press to cycle through current, power, capacity, energy, and time displays.
- SET: Long press to enter settings menu for configuring protection parameters and operational limits.
- ON/OFF: Short press to enable or disable output; long press to set default power-on state.
Applications:
- Battery charging systems
- Solar power regulation
- LED lighting systems
- Laboratory power supplies
- Embedded systems requiring stable voltage supply
Physical Specifications:
- Dimensions: 79mm × 43mm × 38mm
- Mounting: Panel mountable with snap-in design
- Weight: Approximately 87g
