0.96 inch OLED SPI Interface 128×64 – 3 to 5V
C$4.99
Discount Type | Quantity | Volume Price |
---|---|---|
Quantity discount | 2 - 9 | 5% C$4.74 |
Quantity discount | 10 - 19 | 10% C$4.49 |
Quantity discount | 20 + | 15% C$4.24 |
- Description
- Reviews (0)
Description
OLED Displays
Type
0.96" Blue
SPI
0.96" Blue
I2C
1.3" Blue
I2C
2.42" Blue
SPI
0.66" D1 Mini
I2C
Color scheme
Blue-White
Blue-White
Blue-White
Blue-White
Blue-White
Resolution (Pixel)
128 x 64
128 x 64
128 x 64
128 x 64
64 x 48
Interface
SPI
I2C
I2C
SPI
I2C
Controller
SSD1306 or SH1106
SSD1306 or SH1106
SSD1306 or SH1106
SSD1309
SSD1306
Touch screen
Part # (Go to)
OLED Displays | |||||
Type | 0.96" Blue | 0.96" Blue | 1.3" Blue | 2.42" Blue | 0.66" D1 Mini |
Color scheme | Blue-White | Blue-White | Blue-White | Blue-White | Blue-White |
Resolution (Pixel) | 128 x 64 | 128 x 64 | 128 x 64 | 128 x 64 | 64 x 48 |
Interface | SPI | I2C | I2C | SPI | I2C |
Controller | SSD1306 or SH1106 | SSD1306 or SH1106 | SSD1306 or SH1106 | SSD1309 | SSD1306 |
Touch screen | |||||
Part # (Go to) |

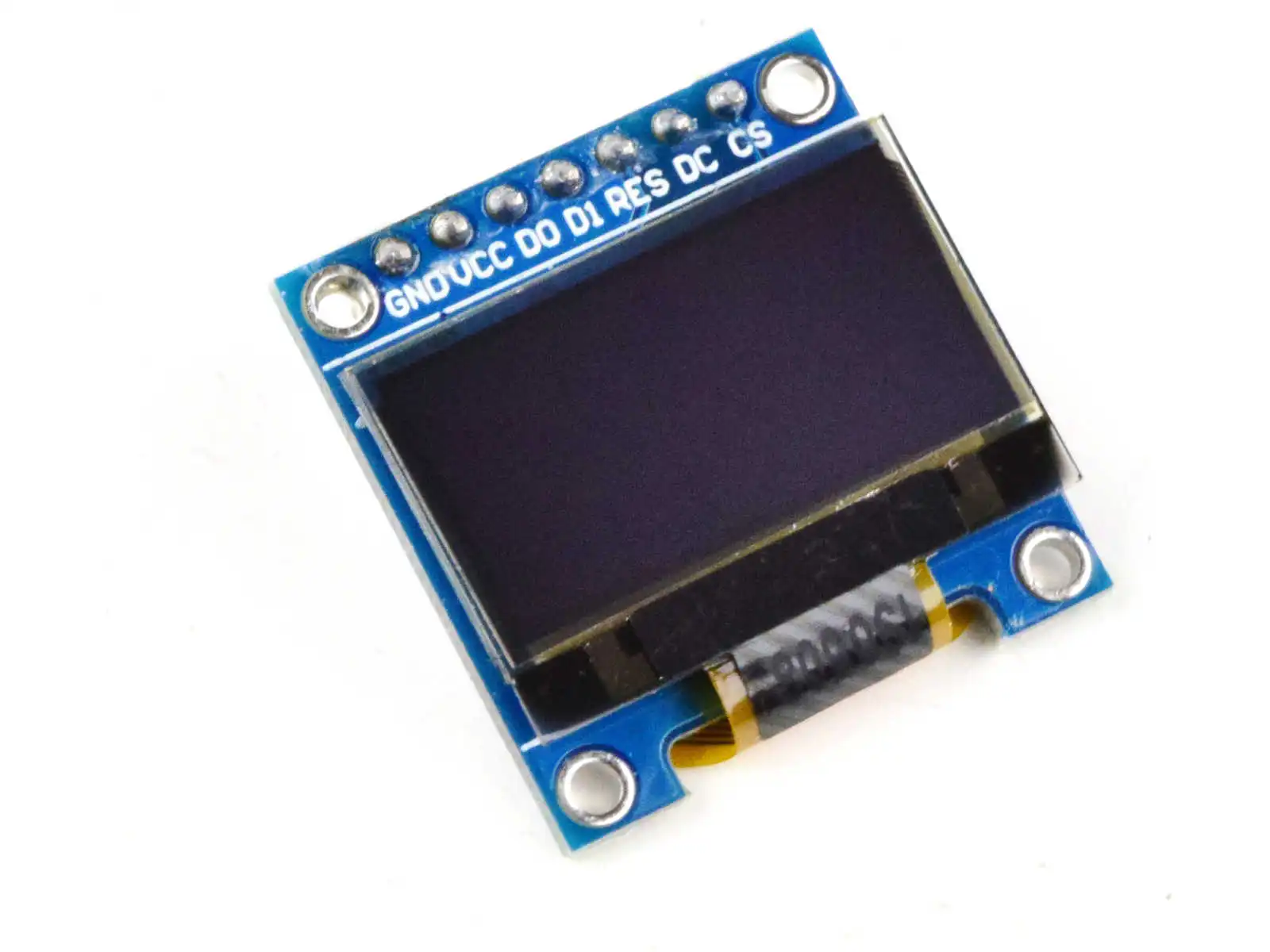

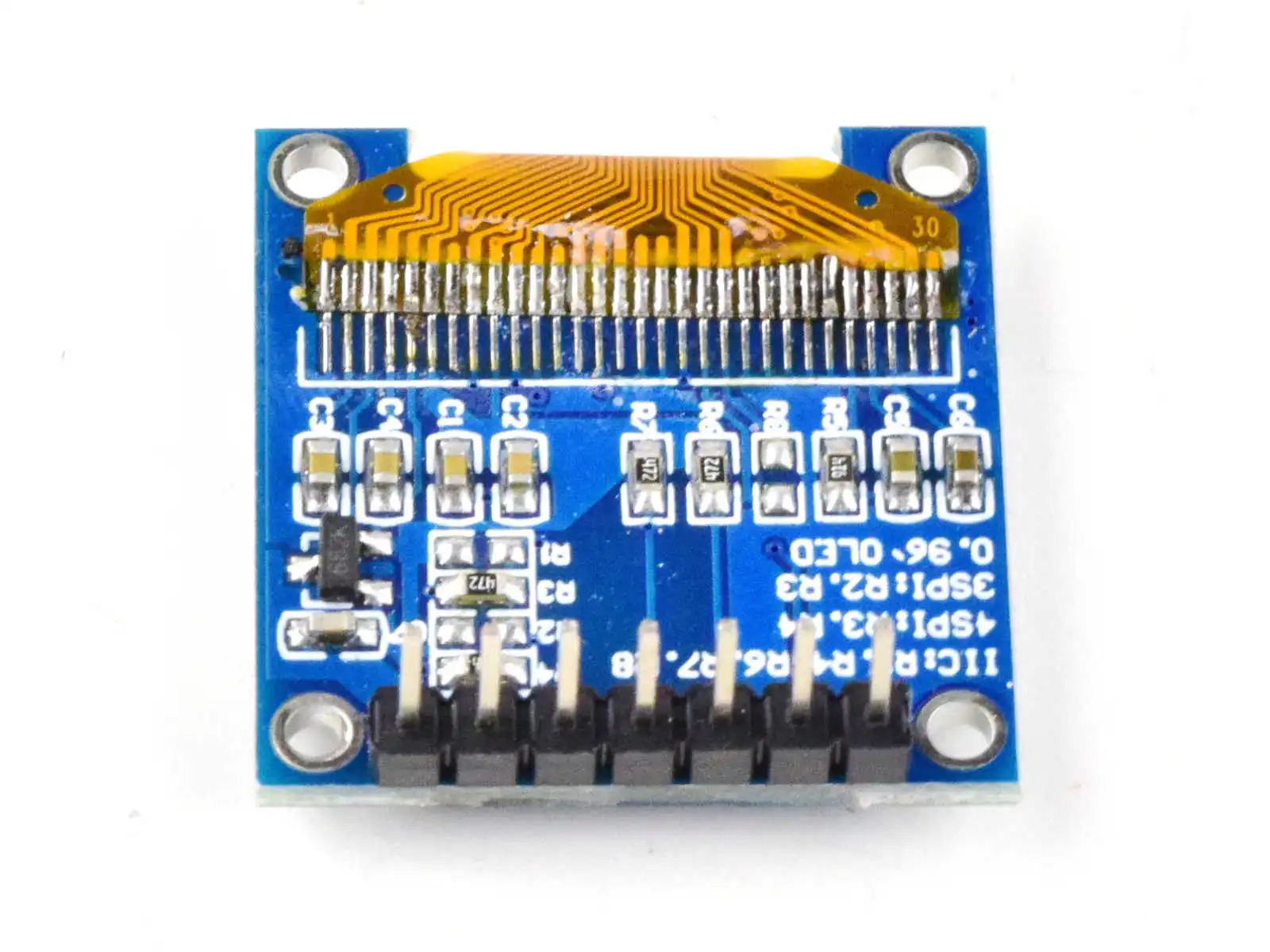

The 0.96 inch OLED SPI with 128×64 white pixels on a dark blue background. It communicates through its SPI interface with any microcontroller platform for example Arduino or ST32. Please watch the YouTube video (link below) to see how it works.
Thanks to its operation and logic level voltage of 3-5V, this Display hooks up to any Arduino board without voltage compatibility issues.
These displays can come with an SSD1306 or SH1106 controller. Both models are very similar, but not identical. We recommend a library that supports both (see below). Then you can easily figure out which setting to use.
- Shows characters and graphics.
- Arduino library is available.
- 128 x 64 pixel, white/blue
- PCB size: 27 x 28 mm
- Screen size: 22 x 12 mm (0.96 Inches)
- Power consumption: <40mW
- Data interface: SPI
- This Display has no Touch-Function.
SPI Interface Pinout:
D0 = clock
D1 = MOSI
DC = data/command
CS = chip select
VCC = 3.3 – 5V
RES = reset
GND = ground
Note: We recommend not using the library from Adafruit due to its incompatibility with the SH1106 controller. Here is a better library, supporting different controller models and definitely works with both controller types:
