RP2040 Tiny 2MB Dev Module + USB Interface

Discover the power and versatility of the RP2040 Tiny 2MB Dev Module with USB Interface, a compact yet feature-rich development tool designed by Raspberry Pi in the UK. Perfect for both hobbyists and professionals, this module boasts a dual-core Arm Cortex M0+ processor with a flexible clock up to 133 MHz, ensuring speedy and efficient performance. With 264KB of SRAM and 2MB of onboard Flash memory, it provides ample space for your development needs.

What sets this module apart is its user-friendly USB-C connector on a detachable daughterboard, facilitating effortless debugging. The castellated module design allows for direct soldering onto carrier boards, enhancing its versatility. It supports various programming environments, including C/C++, MicroPython, and Arduino, making it adaptable to a wide range of projects.

Experience seamless connectivity with USB 1.1 support for both device and host, alongside low-power sleep and dormant modes for energy efficiency. Its 20 multi-function GPIO pins, 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, and 16 PWM channels offer extensive interfacing capabilities.

The module also features an accurate on-chip clock and timer, a built-in temperature sensor, and accelerated floating-point libraries for comprehensive project support. The main module measures 18 x 23.5mm, with the USB module at 18 x 18mm, and includes a 15cm ribbon cable for easy integration into your projects.

This RP2040 Tiny Dev Module is not only compatible with the Waveshare RP2040-Tiny but also comes with excellent documentation available on the Waveshare wiki, ensuring you have all the resources at your fingertips for successful project development.

• RP2040 MCU chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory

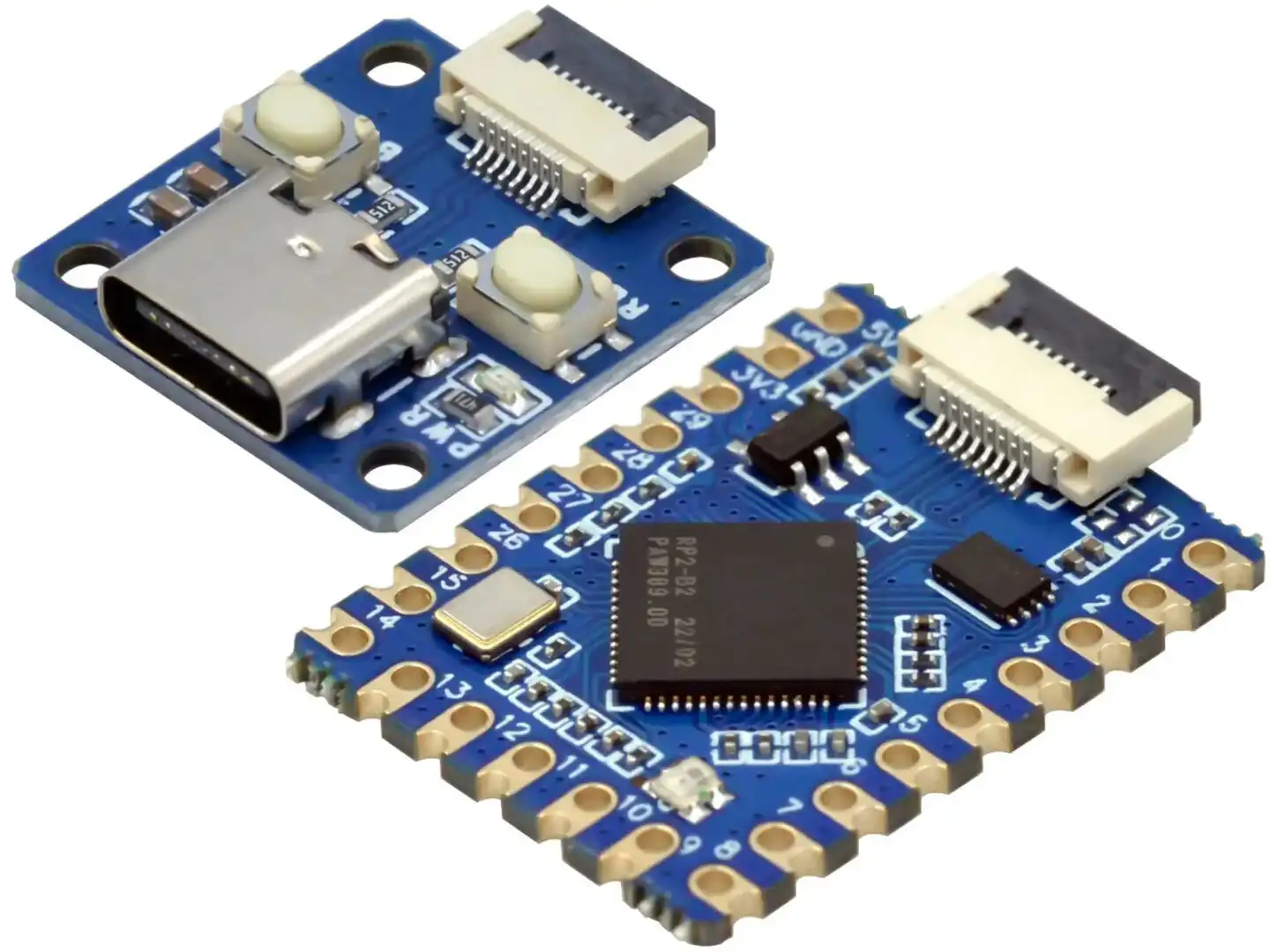

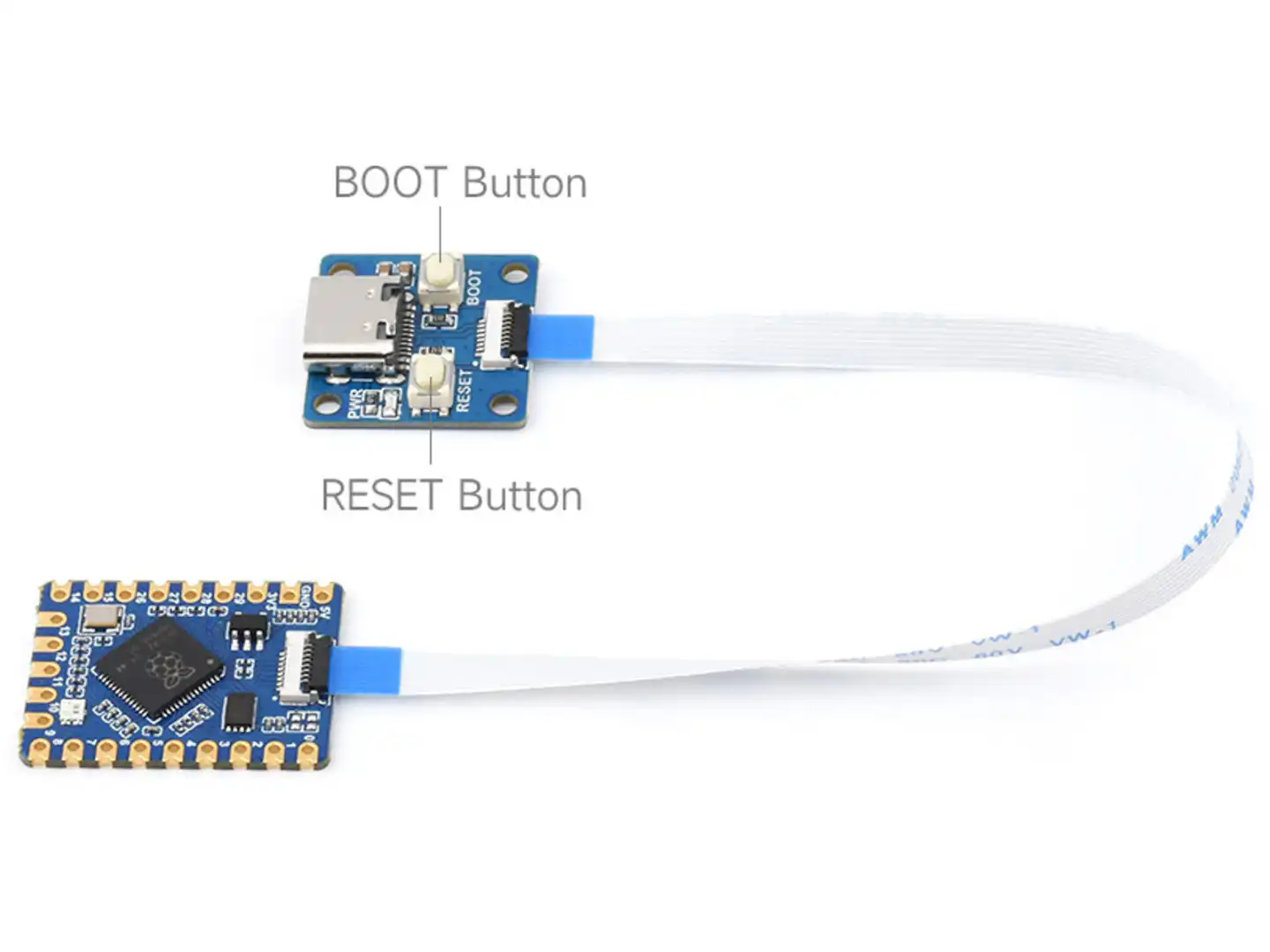

• USB-C connector on daughterboard, can be detached after debugging
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes

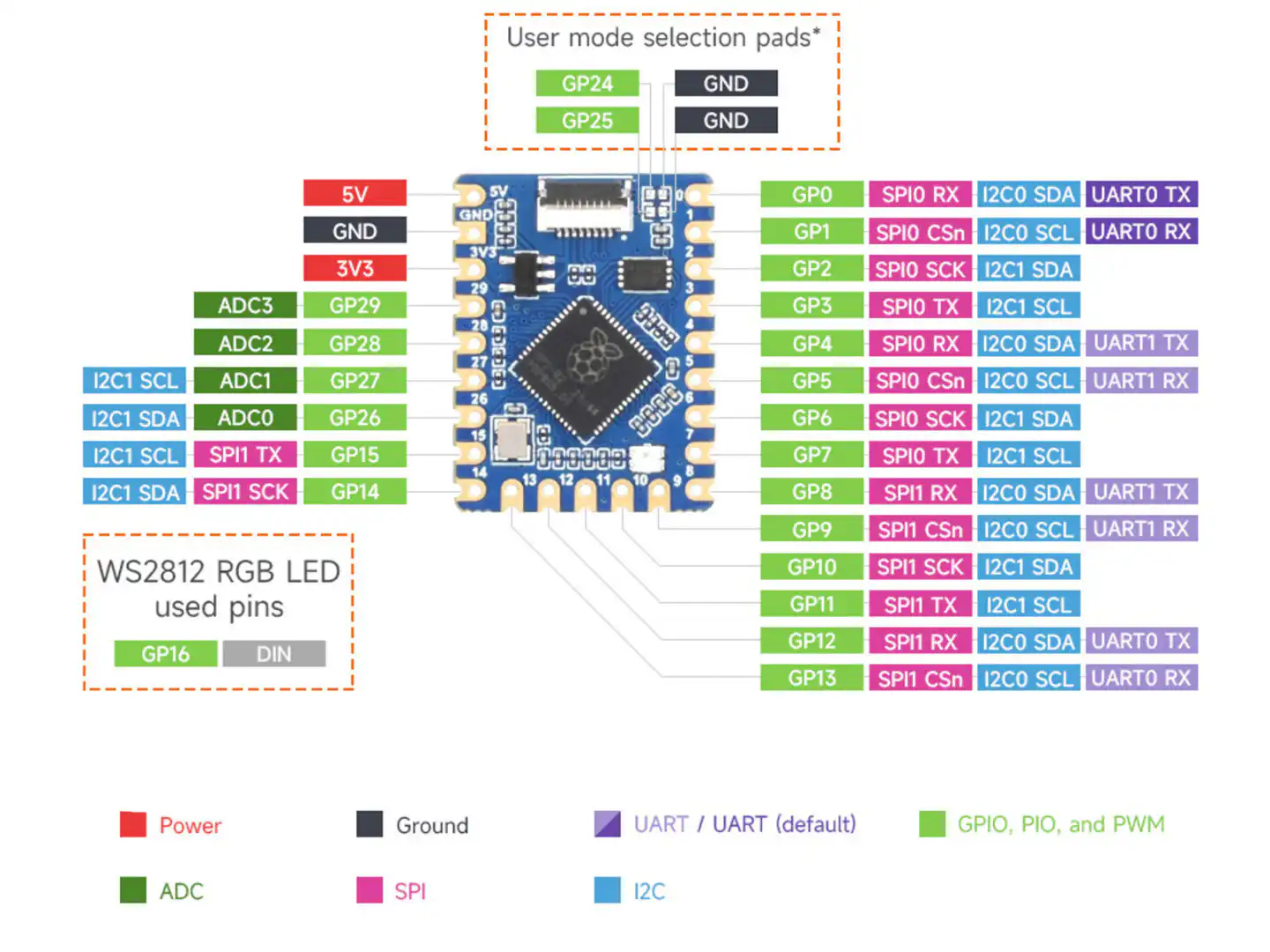

• 20 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip

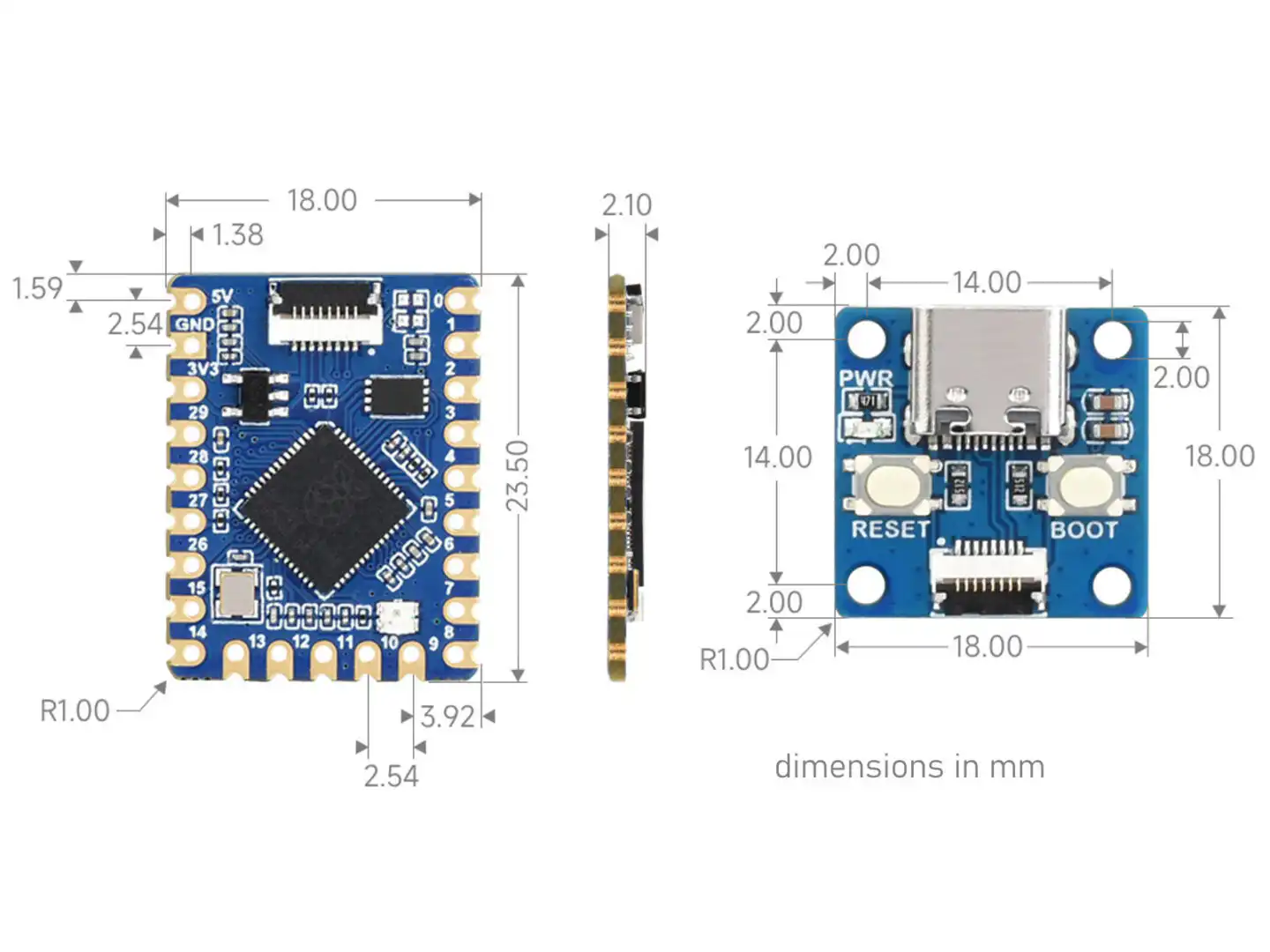

• Dimensions main module: 18 x 23.5mm
• Dimensions USB module: 18 x 18mm

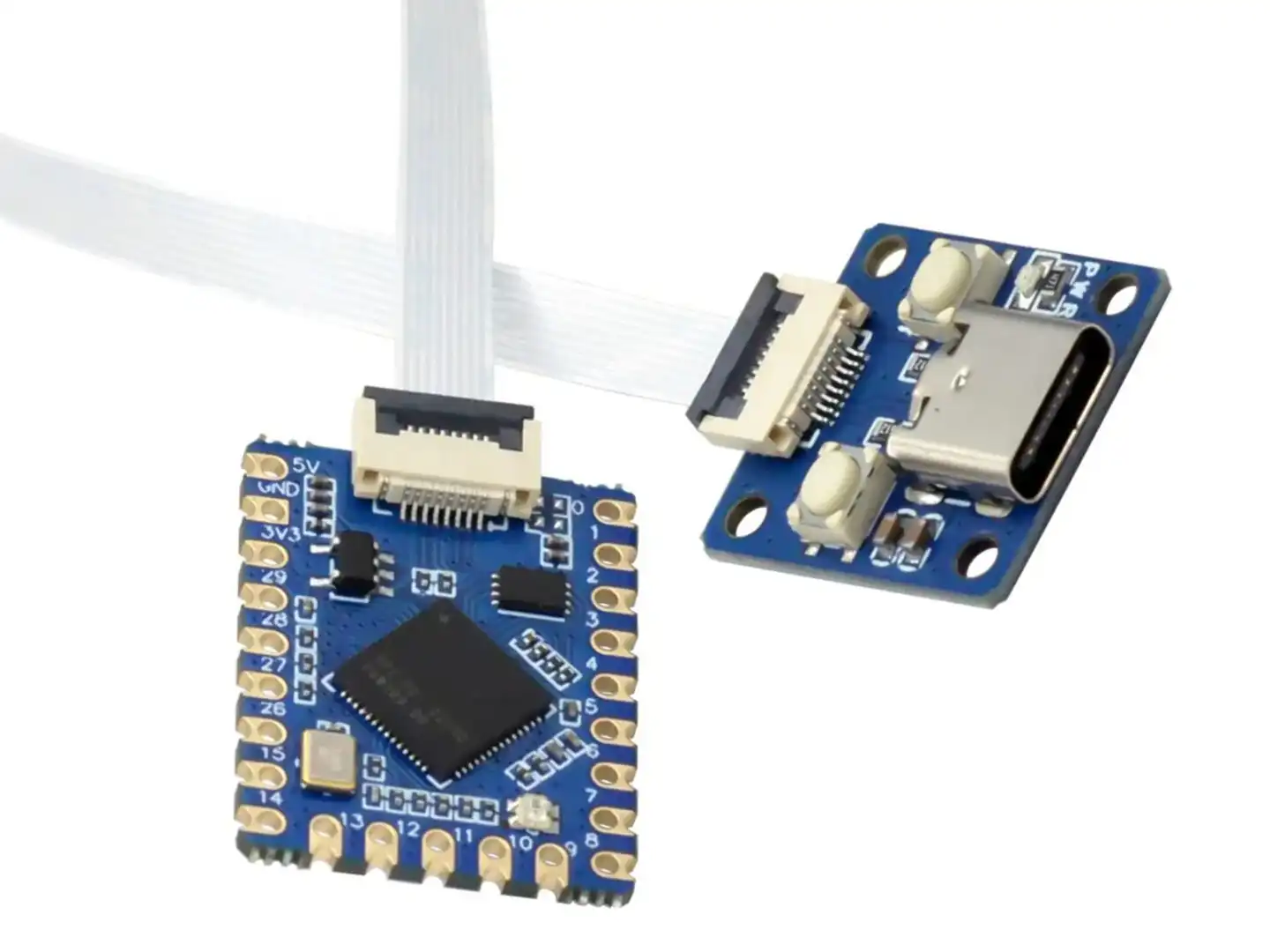

• Ribbon cable length: about 15cm

Please find a excellent documentation on the Waveshare wiki.

For the use with Arduino IDE, add the following board manager file:
https://github.com/earlephilhower/arduino-pico/releases/download/global/package_rp2040_index.json
