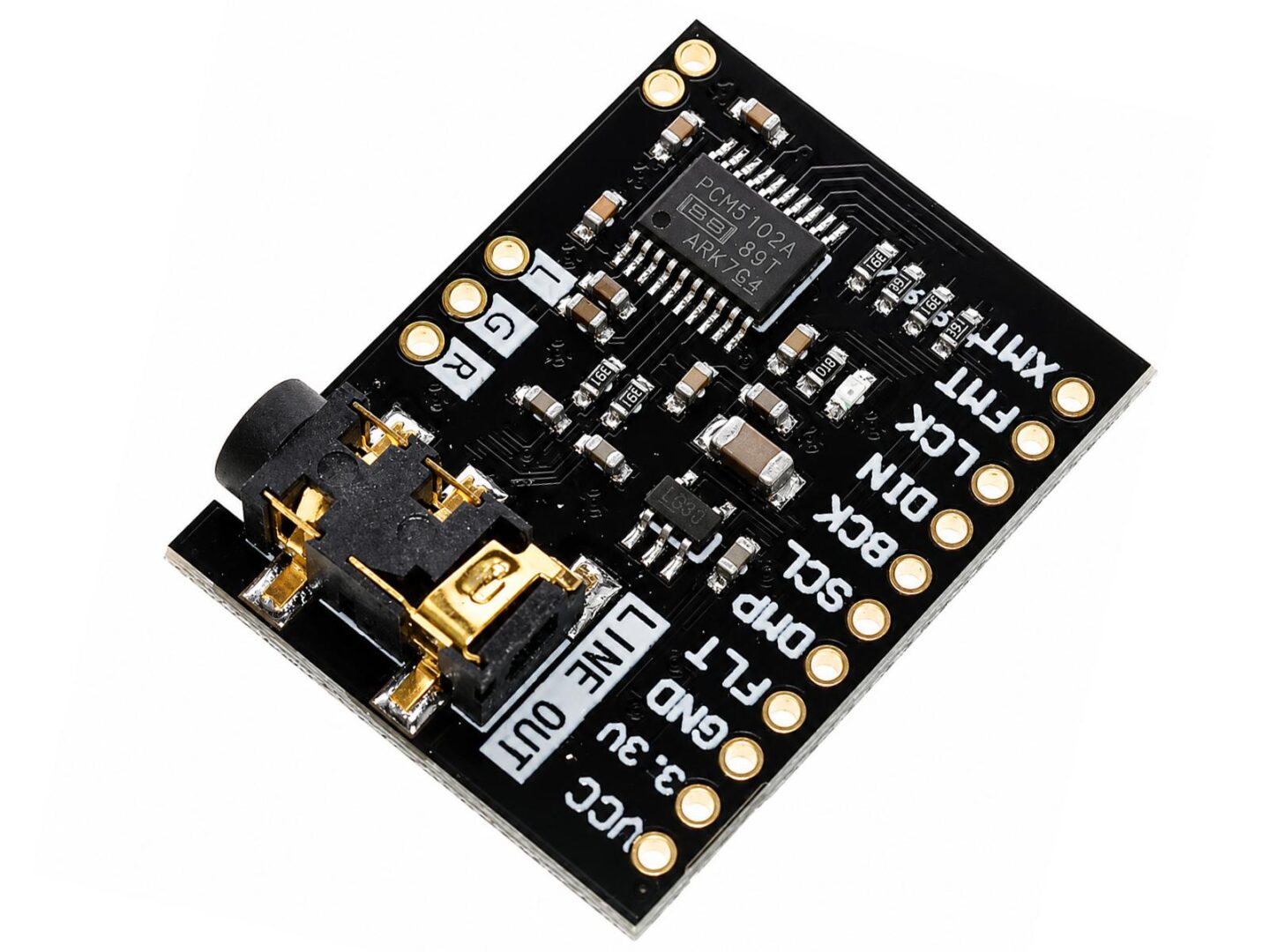

This PCM5102A I2S stereo Sound Card for Raspberry Pi converts digital I2S audio into high-quality analog stereo line output. It is mechanically designed for Raspberry Pi but also work with any other 3.3V development module with I2S output, for example ESP32 boards, RP2040 boards, STM32 boards.
The Sound Card for Raspberry Pi is based on the PCM5102A stereo digital-to-analog converter. It accepts standard I2S / PCM digital audio signals and provides left and right analog audio output through the onboard 3.5mm audio jack. Additional L, G, and R solder pads are also available for direct wiring into another audio circuit.
This module is suitable for projects where a microcontroller or Raspberry Pi needs better audio output than simple PWM audio or low-quality onboard analog audio. It is intended for line-level output and should normally be connected to powered speakers, an amplifier input, headphones with a suitable headphone amplifier, or other audio equipment with line input.
Typical applications
Raspberry Pi audio output projects
ESP32 I2S audio projects
RP2040 and STM32 digital audio projects
Internet radio projects
Music player projects
Audio output for embedded Linux systems
Digital audio experiments and prototypes
DIY speaker systems with a separate amplifier
High-quality stereo line output for microcontroller projects
Key features
PCM5102A stereo DAC module
I2S / PCM digital audio input
Stereo analog line output
Onboard 3.5mm audio jack
Additional L, G, and R output pads for direct wiring
Supports common I2S audio sources such as Raspberry Pi and ESP32
Supports 16-bit, 24-bit, and 32-bit audio data
Supports sample rates from 8kHz up to 384kHz when supported by the audio source and software
No external master clock required in typical I2S use
Built-in PLL inside the PCM5102A
Low-noise stereo DAC for improved sound quality compared with simple PWM audio
Selectable configuration pins for filter, de-emphasis, audio format, and mute control
Compact breakout module with clearly marked pins
Technical specifications
Main IC
PCM5102A
Module type
I2S stereo DAC module
Audio input
I2S / PCM digital audio
Audio output
Stereo analog line output
Output connector
3.5mm stereo audio jack
Additional output pads
L, G, R
Supported audio data length
16-bit, 24-bit, and 32-bit
Supported sample rate
8kHz to 384kHz, depending on source and software configuration
Audio format
I2S and other PCM formats supported by the PCM5102A, depending on FMT configuration
Master clock
Not required for typical operation
Output type
Line-level stereo output
Operating temperature of IC
-40°C to 85°C
Pin description
Pin
Description
VCC
Power input for the module
3.3V
3.3V rail pin on the module
GND
Ground
FLT
Digital filter selection
DMP
De-emphasis control
SCL
System clock input. In many typical module applications this pin is tied low or not driven because the PCM5102A can operate without an external master clock.
BCK
I2S bit clock input
DIN
I2S digital audio data input
LCK
I2S left/right clock input
FMT
Audio data format selection
XMT
Soft mute control
L
Left analog audio output pad
G
Audio ground pad
R
Right analog audio output pad
Basic I2S connection overview
Module pin
Connect to
VCC
Module power supply
GND
System ground
BCK
I2S bit clock from the controller
LCK
I2S left/right clock from the controller
DIN
I2S audio data from the controller
SCL
System clock input if required by the selected configuration
L / G / R
Optional wired stereo line output
Raspberry Pi notes
This module can be used with the Raspberry Pi I2S audio interface when the correct software overlay and audio configuration are used.
The Raspberry Pi provides the required I2S signals through its GPIO header.
The module output is analog stereo line output, not amplified speaker output.
For speaker use, connect the output to a suitable stereo amplifier module or powered speakers.
ESP32 and microcontroller notes
The ESP32 can generate I2S audio signals and is commonly used with PCM5102A DAC modules.
The controller must provide BCK, LCK, and DIN signals.
The exact GPIO pins depend on the board and software configuration.
Audio playback requires software support for I2S output.
Configuration pin overview
Pin
Function
FLT
Selects the digital filter response
DMP
Enables or disables de-emphasis for supported sample rates
FMT
Selects the input audio data format
XMT
Controls soft mute / audio mute function
SCL
System clock input, depending on configuration
Important notes
This is a DAC module, not a speaker amplifier - the 3.5mm jack provides stereo line-level audio output only.
Do not connect passive speakers or headphones directly to the line output.
The actual usable audio resolution and sample rate depend on the audio source, software, and I2S configuration.
