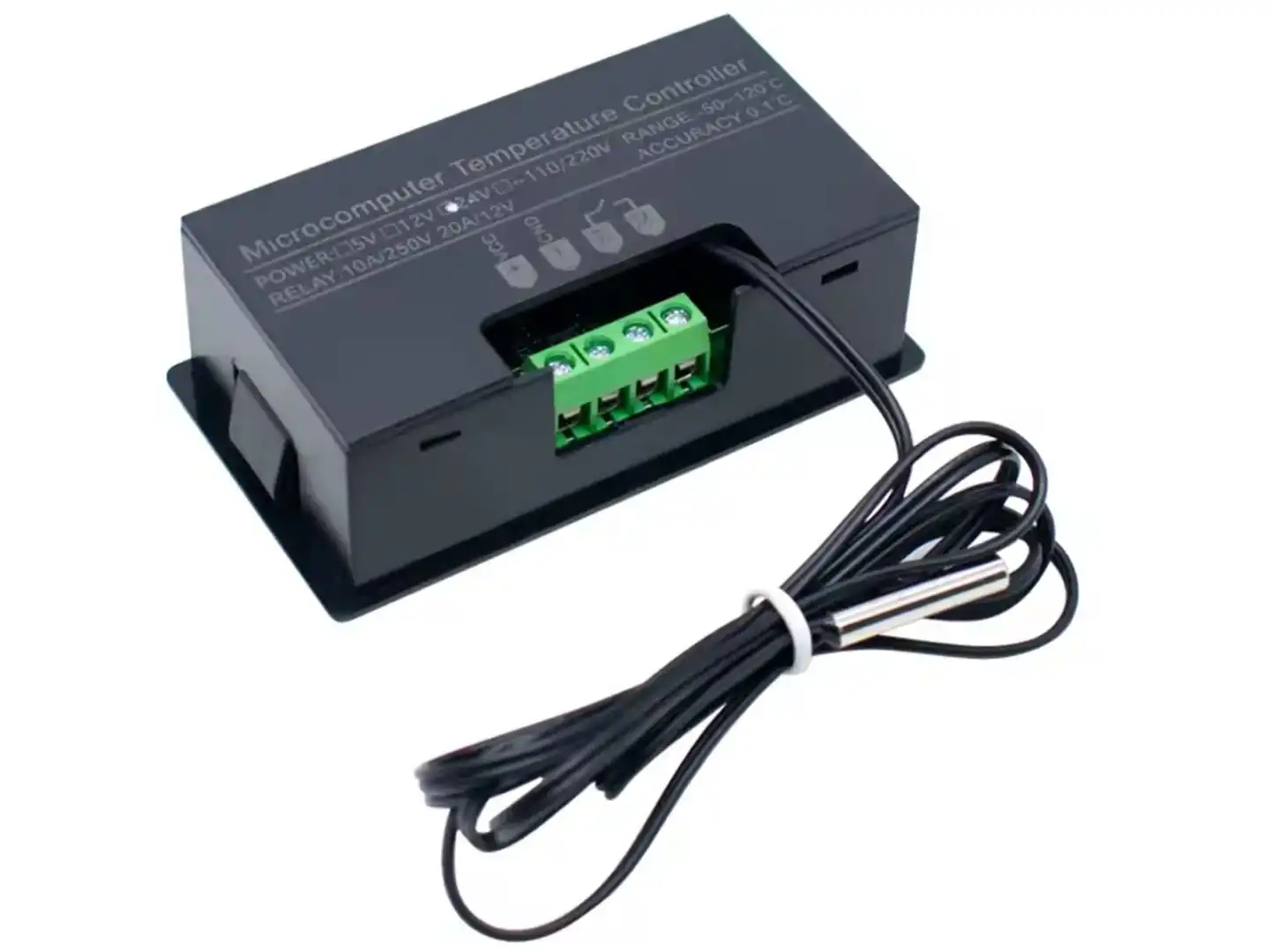

Product Description:
A versatile Temperature Controller designed for precise temperature regulation in various applications. Operating directly on AC 110–220V, it features a clear dual-color LED display and a built-in relay capable of handling up to 10A at 220V AC. The controller supports both heating and cooling modes, making it ideal for incubators, aquariums, greenhouses, and other temperature-sensitive environments.
Key Features:
-
Power Supply: AC 110–220V
-
Temperature Range: -55°C to +120°C
-
Control Accuracy: ±0.1°C
-

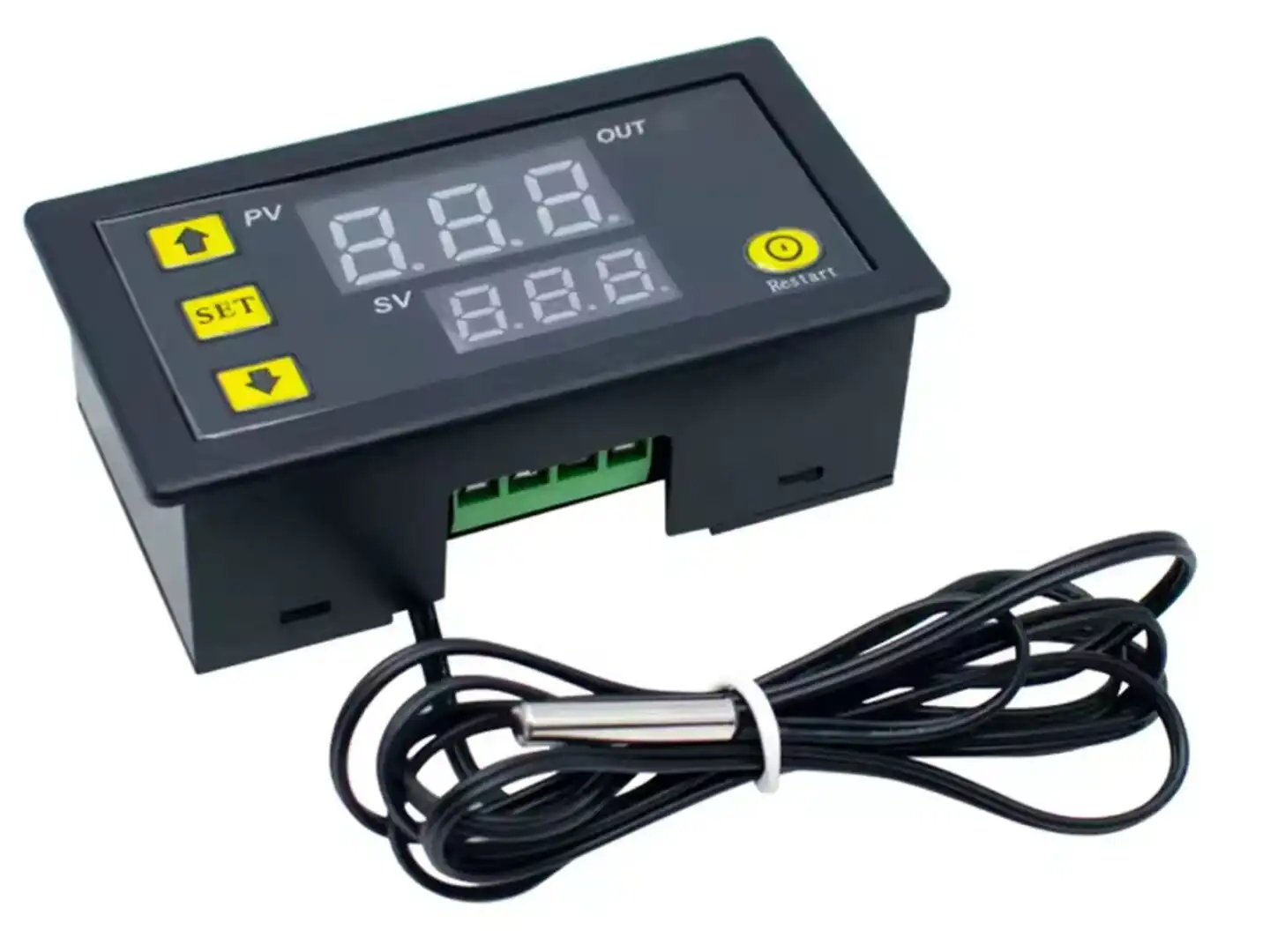

Display: Dual-color LED (red for current temperature, blue for setpoint)
-
Sensor: NTC10K waterproof probe with 1-meter cable
-
Relay Output: 10A at 220V AC
-
Operating Modes: Heating and Cooling
-
User Interface: Three-button control (SET, UP, DOWN) with a reset button
Advanced Settings:
-
P0: Select heating (H) or cooling (C) mode
-
P1: Set hysteresis (0.1°C to 30°C)
-
P2: Define upper temperature limit (-50°C to +120°C)
-
P3: Define lower temperature limit (-50°C to +120°C)
-
P4: Temperature calibration (-10.0°C to +10.0°C)
-
P5: Delay start time (0 to 10 minutes)
-
P6: High-temperature alarm (ON/OFF)
-
P7: Data lock to prevent unauthorized changes (ON/OFF)
-
P8: Restore factory settings
-
P9: Select temperature unit (Celsius or Fahrenheit)
Applications:
-
Incubators
-
Aquariums
-
Greenhouses
-
Refrigeration systems
-
Home brewing setups
Installation Notes:
-
Dimensions: 79mm × 43mm × 26mm
-
Panel Cutout: 74mm × 39mm
-
Ensure proper insulation and adherence to electrical safety standards during installation.
