Temperature Monitoring with Alarm DIY Soldering Kit

madeincanada-round-150

C$4.90

Availability: In stock (can be backordered)

2 - 9 C$4.66
10 - 24 C$4.41
25 + C$4.17
- +
GTIN: 04260474039777 SKU: 26977 Categories: , Tag:

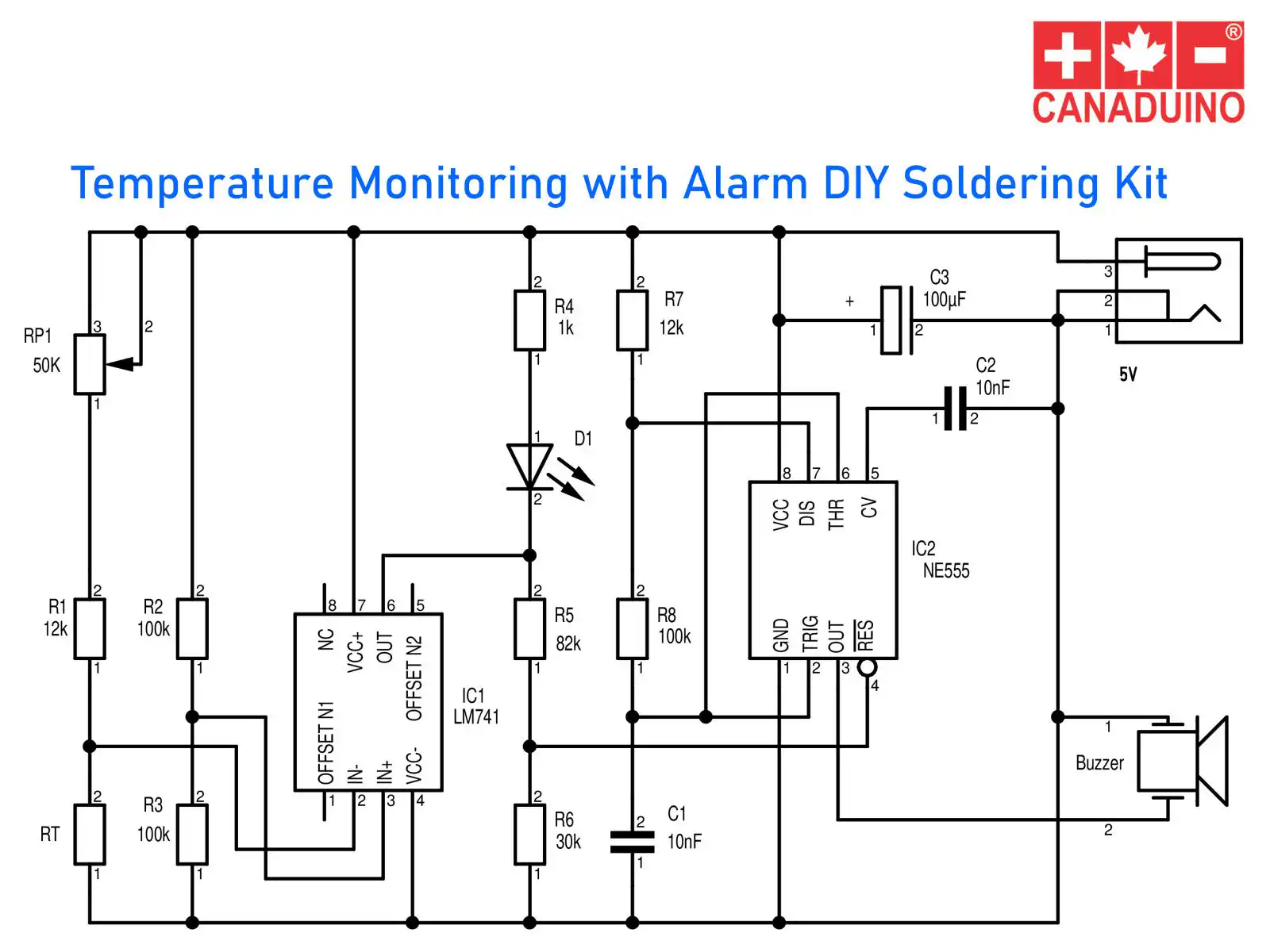

The Temperature Monitoring with Alarm DIY Soldering Kit is a simple comparator with an LM741 operational amplifier. The OPA compares a set voltage value with the voltage provided through a resistor voltage divider, where one of the resistors is a thermistor (temperature-sensitive resistor).

A trimmer potentiometer allows to set the reference voltage.

If the measured temperature is lower than the setpoint, a red status LED will show the device is active and operational. As soon the temperature reaches the setpoint, the NE555 timer IC is triggered to generate a frequency that then is transmitted by the on-board buzzer.

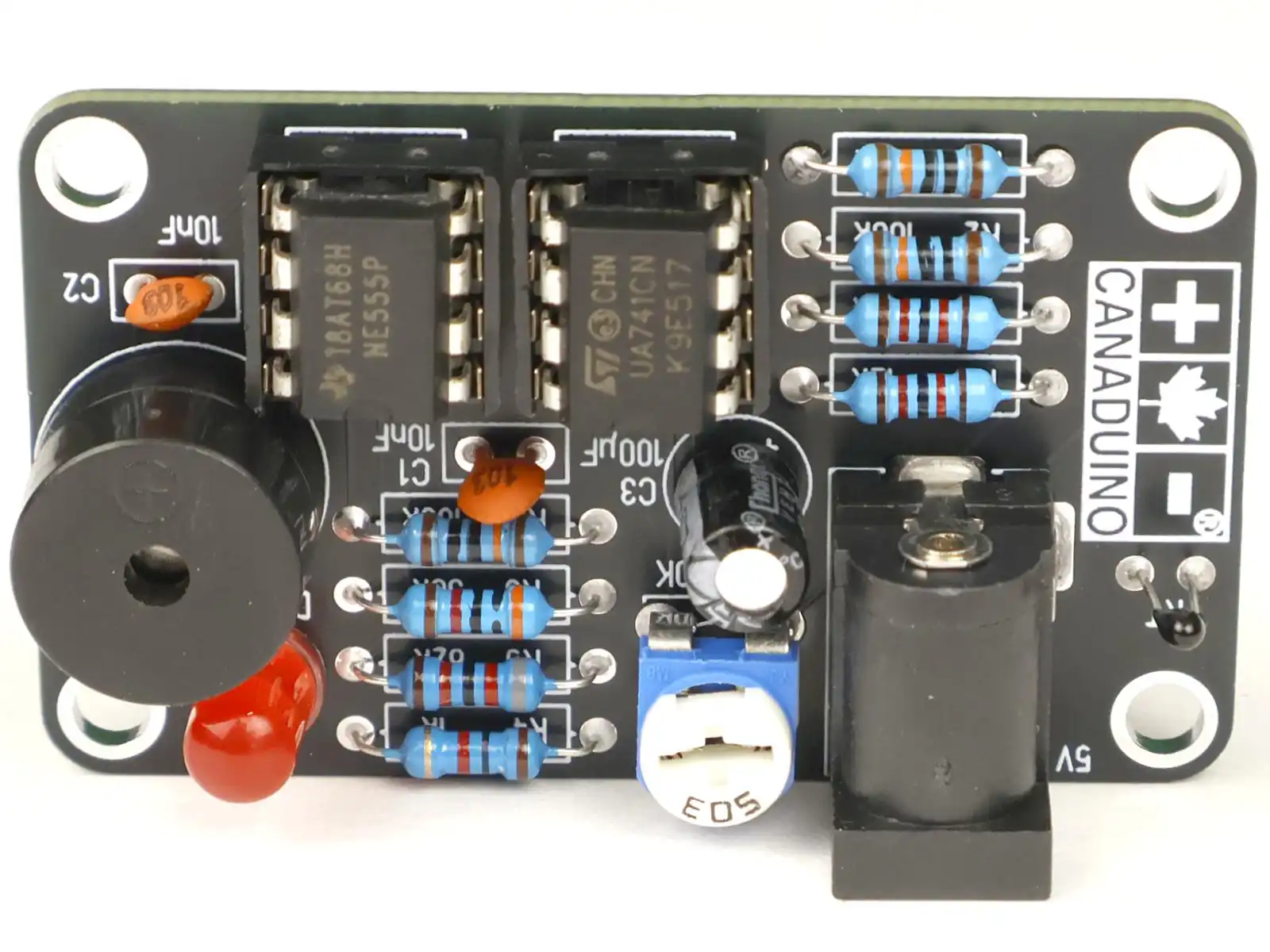

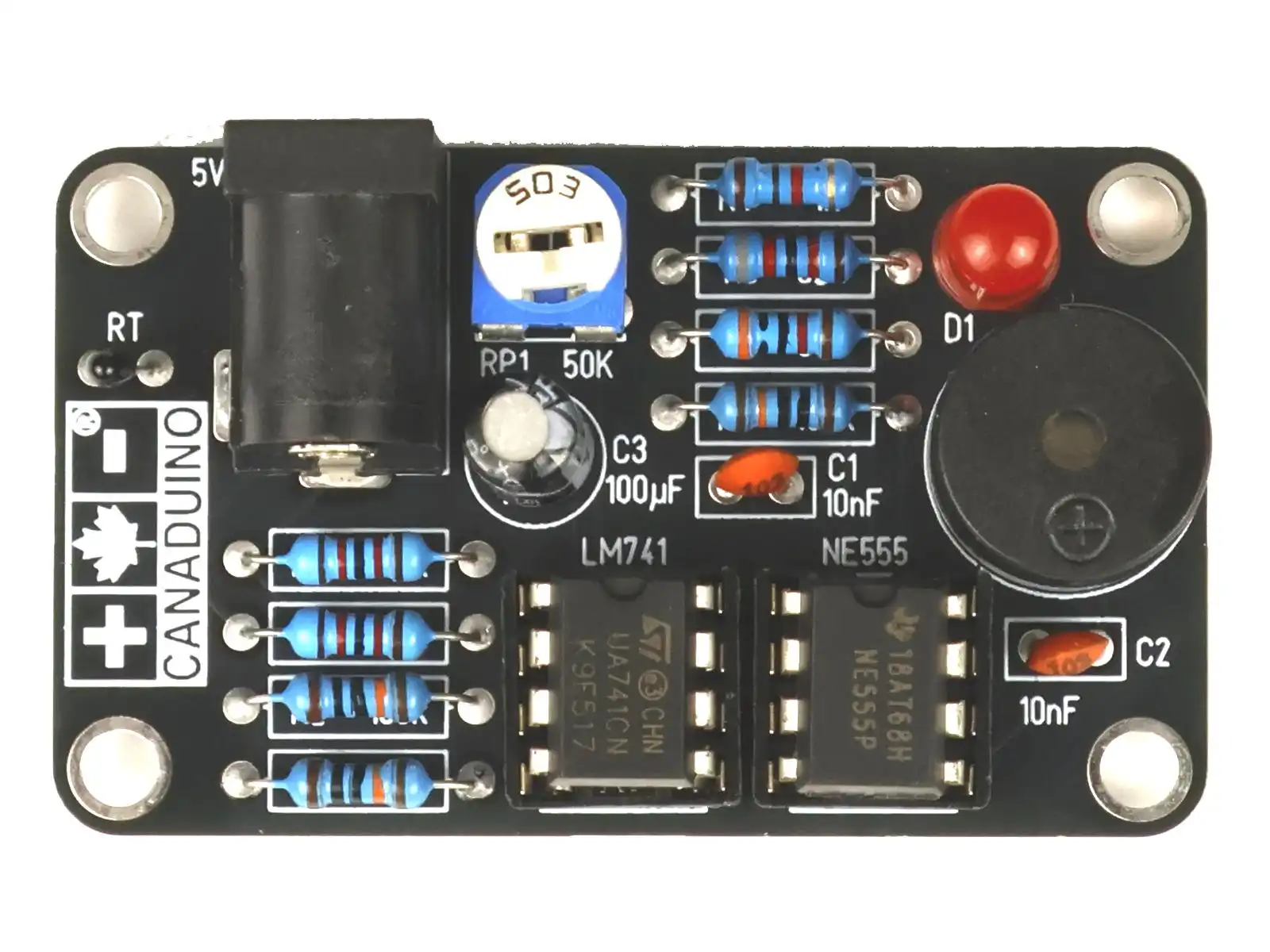

The Temperature Monitoring with Alarm DIY Soldering Kit is an easy-to-assemble beginner's kit. Start with the lowest profile components, which are the resistors, and finish with the tallest part (5V DC port).

Watch the polarity of the LED (flat side - cathode - is marked on the PCB) and the electrolytic capacitor (plus side - long lead - is marked on the PCB).

We recommend our 5V USB power supply cable.

Finished module size: 50 x 30 x 15mm
