InvenSense MPU-6050 6-Axis Gyro Accelerometer Module

The InvenSense MPU-6050™ parts are the world’s first MotionTracking devices designed for the low power, low cost, and high-performance requirements of smartphones, tablets and wearable sensors.

The InvenSense MPU-6050 incorporates InvenSense’s MotionFusion™ and run-time calibration firmware that enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices in motion-enabled products, guaranteeing that sensor fusion algorithms and calibration procedures deliver optimal performance for consumers.

The InvenSense MPU-6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die, together with an onboard Digital Motion Processor™ (DMP™), which processes complex 6-axis MotionFusion algorithms. The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefor it captures the x, y, and z channel at the same time.

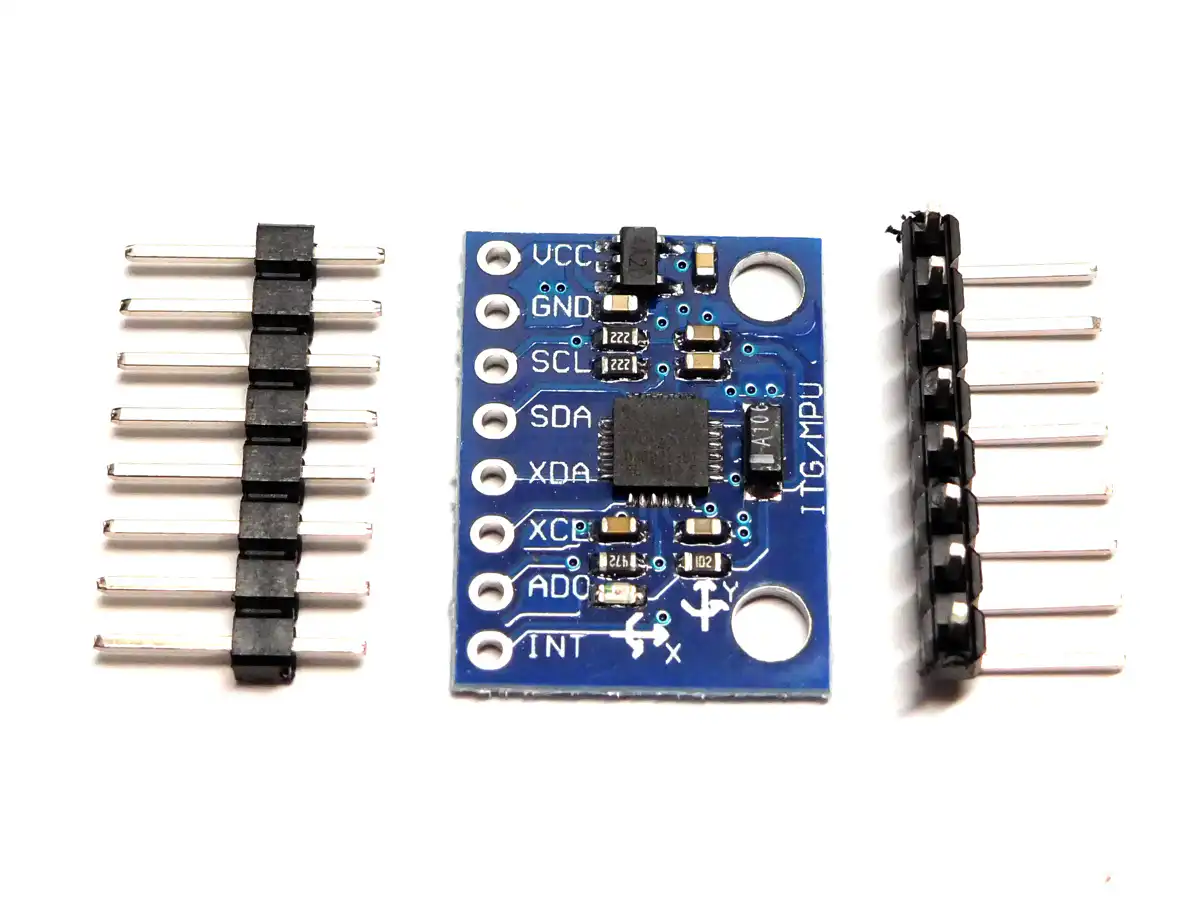

The InvenSense MPU-6050 6-Axis Gyro Accelerometer Module contains the circuit board and 2 header strips (straight and right angled) as to see in the picture.

Specification:

16bit ADC, 16-bit data output
Power Supply: 3-5V (internal LDO)
Communication: I2C communication protocol standard
Gyro Range: ± 250 / 500 / 1000 / 2000 °/s
Acceleration Range: ± 2 / ± 4 / ± 8 / ± 16g
Size: 21 x 16 x 3 mm

Application:

Motion Sensing Games
Augmented Reality
EIS (Electronic Image Stabilization)
“Zero-Touch” Gestures User Interface
Pedestrian Navigation

Market:

Smart Phone
Tablet Device
Handheld Games
3D Remote Controller
Portable Navigation Devices
