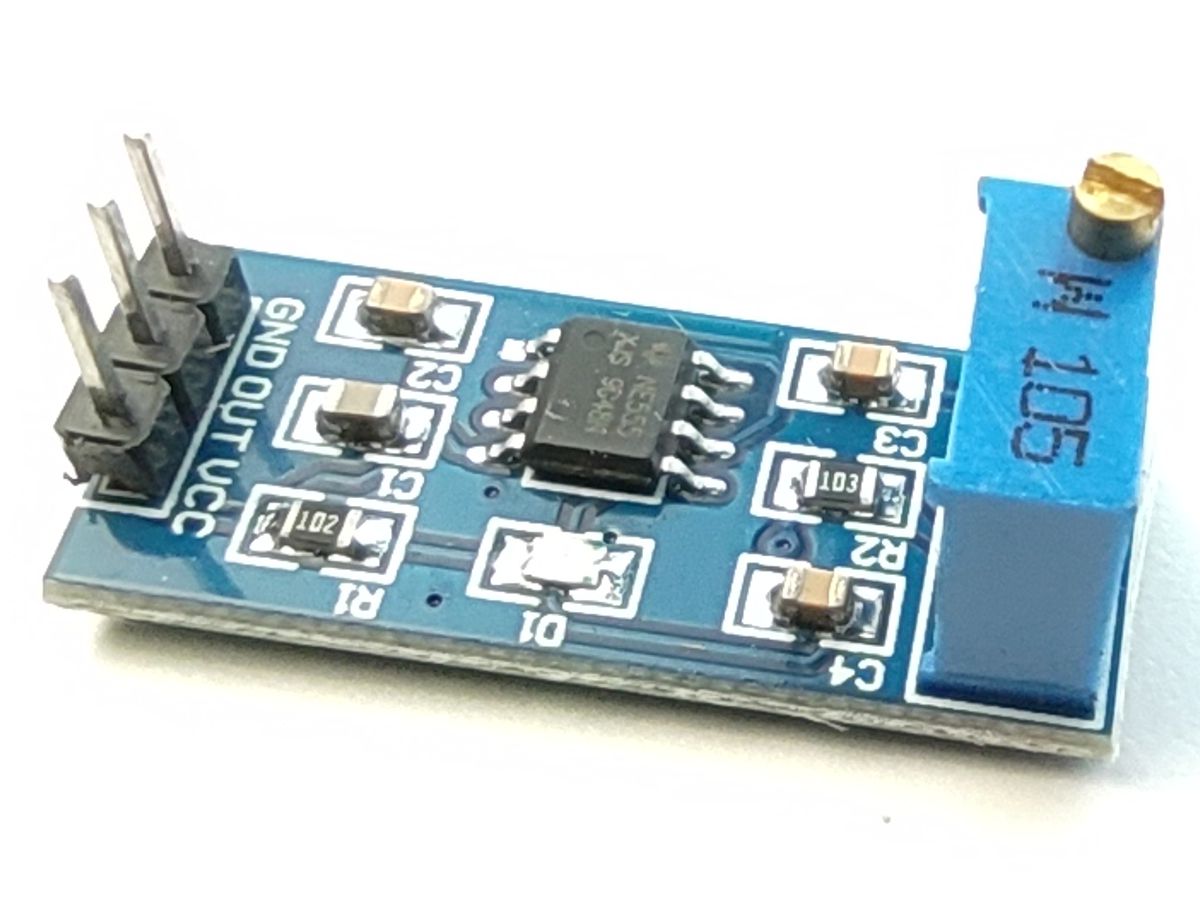

Adjustable NE555 Clock Generator 5Hz to 1KHz

The Adjustable NE555 Clock Generator Module is a simple yet powerful tool for generating pulse signals in a variety of electronic projects. Operating with a wide supply voltage range of 5V to 12V, this module uses the NE555 timer IC to produce a stable pulse frequency, adjustable between 5Hz and over 1kHz. Ideal for both hobbyists and educational applications, it provides a reliable solution for creating clock signals, triggering events, or generating simple waveforms.

Key Features:

• Adjustable Frequency Range: Easily set the pulse frequency from approximately 5Hz to over 1kHz using the multi-turn trimmer potentiometer.
• Stable Duty Cycle: The duty cycle is set to about 50%, providing a consistent square wave output.
• Wide Supply Voltage: Works with standard 5V to 12V power supplies, making it versatile for various project setups.
• Compact Design: This compact module is easy to integrate into any breadboard or electronic project.
• Simple to Use: Great for beginners, this module provides a hands-on way to explore the fundamentals of pulse generation with the NE555 timer.

Whether you're learning electronics or looking for a reliable pulse generator for your next project, this NE555 clock generator module is a great choice for both beginners and experienced hobbyists alike.

Module dimensions: 29.5 x 12.5 mm
